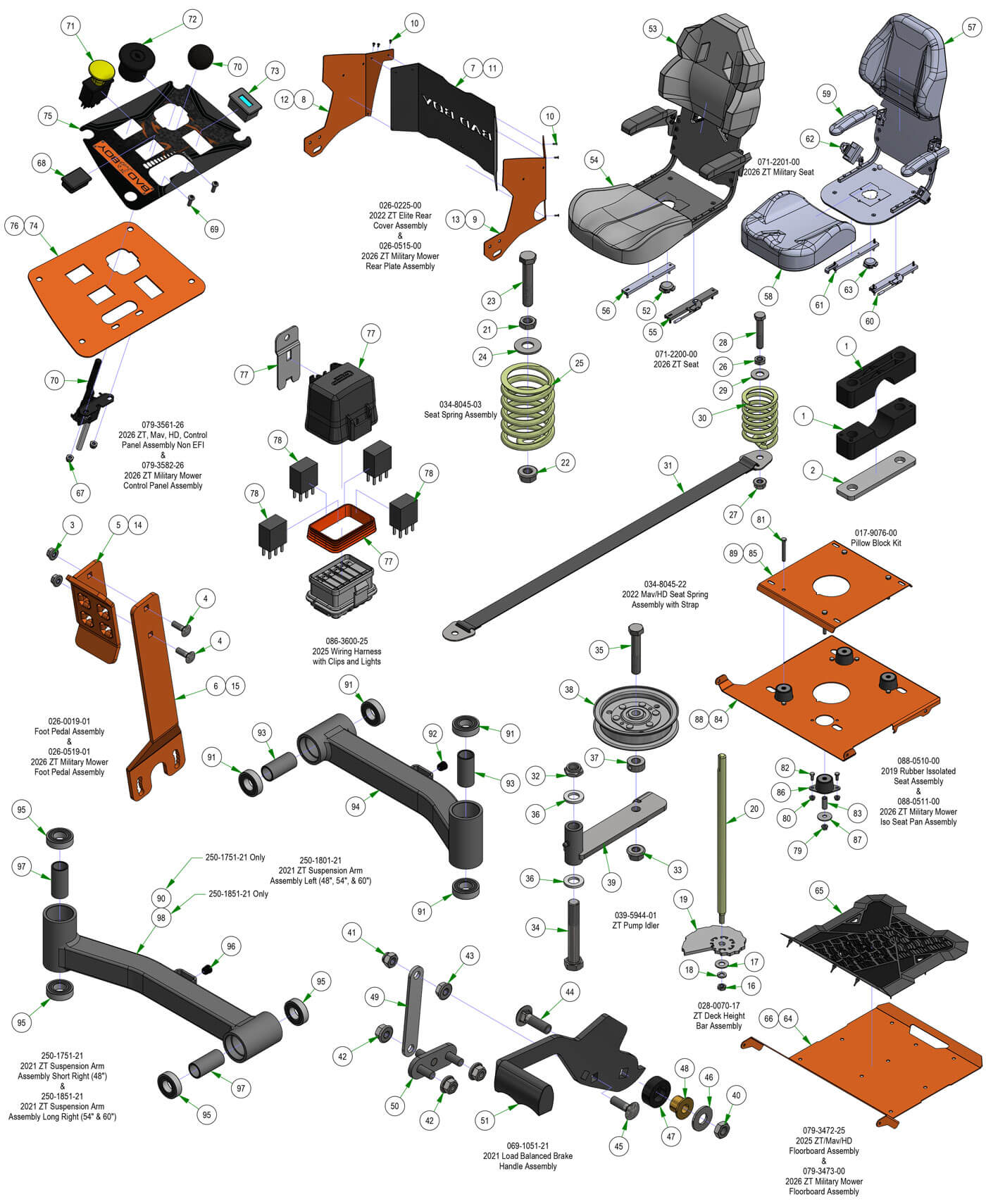

Frame Subassemblies
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 7 2022 ZT Avenger/Elite Rear Plate--Center--Black (Qty 1)
- 8 2022 ZT Elite Rear Plate--RH--Orange (Qty 1)
- 9 2022 ZT Elite Rear Plate--LH--Orange (Qty 1)
- 10 Steel Rivets (Qty 6)
- 16 3/8-24 Hex Nut Zinc (Qty 1)
- 17 3/8 USS Flat Washer Zinc (Qty 1)
- 18 3/8 Lockwasher Zinc (Qty 1)
- 19 Deck Height Cam Plate (Qty 1)
- 20 2017 Deck Height Dial Rod ZT (Qty 1)
- 21 3/8-16 Half Jam Nut (Qty 1)
- 22 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 24 3/8 USS Flat Washer Zinc (Qty 1)
- 25 Seat Spring (Qty 1)
- 26 3/8-16 Half Jam Nut (Qty 1)
- 27 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 28 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 29 3/8 USS Flat Washer Zinc (Qty 1)
- 30 Seat Spring (Qty 1)
- 31 Seat Strap with Buckles (Qty 1)
- 32 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 33 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 34 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 35 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 36 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 37 1/2 Set Collar w/set collar (Qty 1)
- 38 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 39 Idler Bracket (Qty 1)
- 40 3/8-16 Centerlock Half Nut (Qty 1)
- 41 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 42 5/16-18 Nylon Flange Nut (Qty 3)
- 43 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 44 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 45 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 46 3/8 USS Flat Washer Zinc (Qty 1)
- 47 Brake Lever Spacer (Qty 1)
- 48 Bronze Bushing SF-1220-8 (Qty 1)
- 49 Brake Cable Extension Plate (Qty 1)
- 50 Brake Load Balancer Weldment (Qty 1)
- 51 Load Balanced Brake Handle With Grip (Qty 1)
- 52 OBSOLETE USE 071-8061-00 (Qty 1)
- 53 Bad Boy SK230 Elite Back Cover (Qty 1)
- 59 Extended Pin (Poly Pad) Arms Pair 2024 Maverick (Qty 1)
- 62 Seat Belt Assembly for 2024 Maverick Digital Seat (Qty 1)
- 63 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 64 2025 Elite Maverick Floorboard-Orange (Qty 1)
- 65 2025 Maverick HD & Down Floor Mat "Saftey" (Qty 1)
- 67 10-24 Nylon Insert Locknut Zin (Qty 2)
- 68 Light Plug (Qty 1)
- 69 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 70 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 71 PTO Engager-Switch for Blades (Qty 1)
- 72 4-Way Key Switch (Qty 1)
- 74 2023 Control Panel--Orange (Qty 1)
- 77 2019 Relay Cap Kit (Qty 1)
- 78 2023 Control Panel--Orange (Qty 4)
- 79 3/8 Nylock Flange Nut (Qty 4)
- 80 5/16-18 Nylon Flange Nut (Qty 8)
- 81 3/8-16 x 3" Hex Head Bolt Fully Threaded GR 5 (Qty 4)
- 82 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 8)
- 83 2019 Brake Handle Spacer .625 x 1.5 (Qty 4)
- 84 2019 Rubber Isolated Seat Bottom--Orange (Qty 1)
- 85 2019 Rubber Isolated Seat Top--Orange (Qty 1)
- 86 Seat Pan Isolator (Qty 4)
- 87 Snubbing Washer-032-4050-00 (Qty 4)
- 91 Caster Bearing (Qty 4)
- 92 5/8 Round Insert - Deck (Qty 1)
- 93 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 95 Caster Bearing (Qty 4)
- 96 5/8 Round Insert - Deck (Qty 1)
- 97 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
34280#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
445#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
7#026-0230-00
2022 ZT Avenger/Elite Rear Plate--Center--Black
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
8#026-0231-00
2022 ZT Elite Rear Plate--RH--Orange
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
9#026-0232-00
2022 ZT Elite Rear Plate--LH--Orange
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
10#032-0004-00
Steel Rivets
Qty Used: 6Regular price $0.75 USDRegular priceUnit price per
-
16#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
17242946#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
19#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
20#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
2126#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
2227#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
2328#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
2530#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
31#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
32#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
33#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
34#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
35#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
36#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
37#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
38#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
39#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
40#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
41#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
43#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
44#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
47#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
48#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
49#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
50#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
51#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
52#071-2045-00
OBSOLETE USE 071-8061-00
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
53#071-2200-01
Bad Boy SK230 Elite Back Cover
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
59#071-2500-03
Extended Pin (Poly Pad) Arms Pair 2024 Maverick
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
62#071-2500-06
Seat Belt Assembly for 2024 Maverick Digital Seat
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
63#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
64#079-3472-00
2025 Elite Maverick Floorboard-Orange
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
65#081-4002-00
2025 Maverick HD & Down Floor Mat "Saftey"
Qty Used: 1Regular price $24.84 USDRegular priceUnit price per
-
67#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
68#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
69#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
70#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
71#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
72#077-8078-00
4-Way Key Switch
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7478#079-3461-00
2023 Control Panel--Orange
Qty Used: 4Regular price $21.99 USDRegular priceUnit price per
-
77#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
79#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
81#018-0064-00
3/8-16 x 3" Hex Head Bolt Fully Threaded GR 5
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
82#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
83#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 4Regular price $6.59 USDRegular priceUnit price per
-
84#026-1017-00
2019 Rubber Isolated Seat Bottom--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
85#026-1018-00
2019 Rubber Isolated Seat Top--Orange
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
86#032-0008-00
Seat Pan Isolator
Qty Used: 4Regular price $8.44 USDRegular priceUnit price per
-
87#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 4Regular price $15.91 USDRegular priceUnit price per
-
9195#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
9296#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
9397#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
