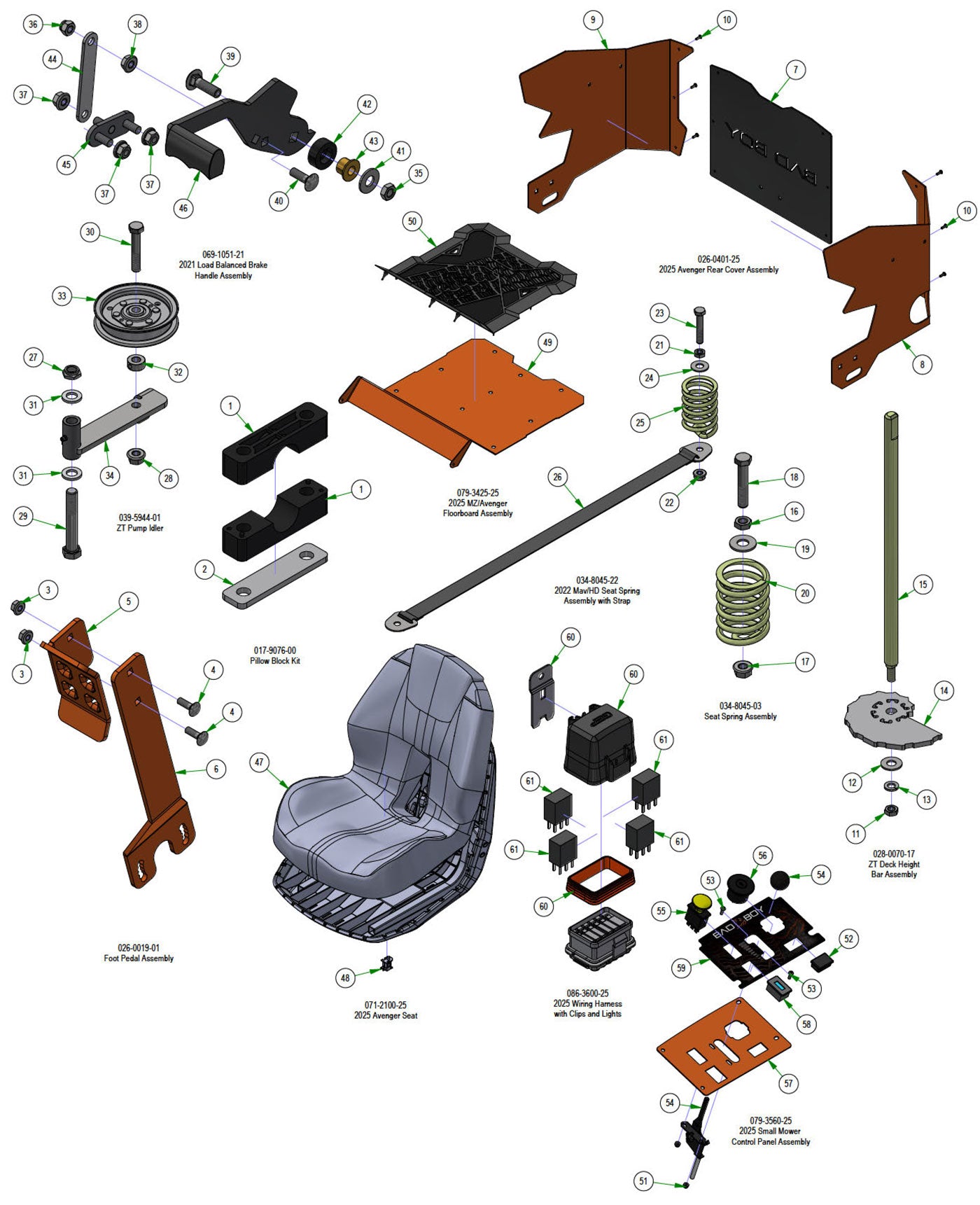

Frame Subassemblies
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 7 2025 ZT Avenger Rear Cover Center--Black (Qty 1)
- 10 Steel Rivets (Qty 6)
- 11 3/8-24 Hex Nut Zinc (Qty 1)
- 12 3/8 USS Flat Washer Zinc (Qty 1)
- 13 3/8 Lockwasher Zinc (Qty 1)
- 14 Deck Height Cam Plate (Qty 1)
- 15 2017 Deck Height Dial Rod ZT (Qty 1)
- 16 3/8-16 Half Jam Nut (Qty 1)
- 17 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 18 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 19 3/8 USS Flat Washer Zinc (Qty 1)
- 20 Seat Spring (Qty 1)
- 21 3/8-16 Half Jam Nut (Qty 1)
- 22 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 24 3/8 USS Flat Washer Zinc (Qty 1)
- 25 Seat Spring (Qty 1)
- 26 Seat Strap with Buckles (Qty 1)
- 27 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 28 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 29 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 30 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 31 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 32 1/2 Set Collar w/set collar (Qty 1)
- 33 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 34 Idler Bracket (Qty 1)
- 35 3/8-16 Centerlock Half Nut (Qty 1)
- 36 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 37 5/16-18 Nylon Flange Nut (Qty 3)
- 38 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 39 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 40 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 41 3/8 USS Flat Washer Zinc (Qty 1)
- 42 Brake Lever Spacer (Qty 1)
- 43 Bronze Bushing SF-1220-8 (Qty 1)
- 44 Brake Cable Extension Plate (Qty 1)
- 45 Brake Load Balancer Weldment (Qty 1)
- 46 Load Balanced Brake Handle With Grip (Qty 1)
- 47 Bad Boy SK130 Avenger Cover for 071-2100-25 (Qty 1)
- 48 Seat Switch for 2019 Renegade Gas/Diesel Seat/ (Qty 1)
- 49 2025 MZ Avenger Floorboard-Orange (Qty 1)
- 50 2025 Maverick HD & Down Floor Mat "Saftey" (Qty 1)
- 51 10-24 Nylon Insert Locknut Zin (Qty 2)
- 52 Light Plug (Qty 1)
- 53 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 54 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 55 PTO Engager-Switch for Blades (Qty 1)
- 56 4-Way Key Switch (Qty 1)
- 57 2025 Control Panel--Orange (Qty 1)
- 58 Tachometer-N310-0100-1018 (Qty 1)
- 59 2025 Reaper Control Panel Decal (Qty 1)
- 60 2019 Relay Cap Kit (Qty 1)
- 61 2019 Relay Terminal (Qty 4)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
337#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
440#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
7#026-0409-00
2025 ZT Avenger Rear Cover Center--Black
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
10#032-0004-00
Steel Rivets
Qty Used: 6Regular price $0.75 USDRegular priceUnit price per
-
11#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12192441#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
15#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
1621#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
1722#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1823#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
2025#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
26#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
27#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
28#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
29#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
30#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
31#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
32#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
33#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
34#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
35#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
36#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
38#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
39#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
42#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
43#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
44#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
45#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
46#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
47#071-2100-01
Bad Boy SK130 Avenger Cover for 071-2100-25
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
48#071-5065-07
Seat Switch for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
49#079-3425-00
2025 MZ Avenger Floorboard-Orange
Qty Used: 1Regular price $24.68 USDRegular priceUnit price per
-
50#081-4002-00
2025 Maverick HD & Down Floor Mat "Saftey"
Qty Used: 1Regular price $24.84 USDRegular priceUnit price per
-
51#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
52#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
53#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
54#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
55#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
56#077-8078-00
4-Way Key Switch
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
57#079-3462-00
2025 Control Panel--Orange
Qty Used: 1Regular price $3.61 USDRegular priceUnit price per
-
58#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
59#091-4082-00
2025 Reaper Control Panel Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
60#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
61#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
