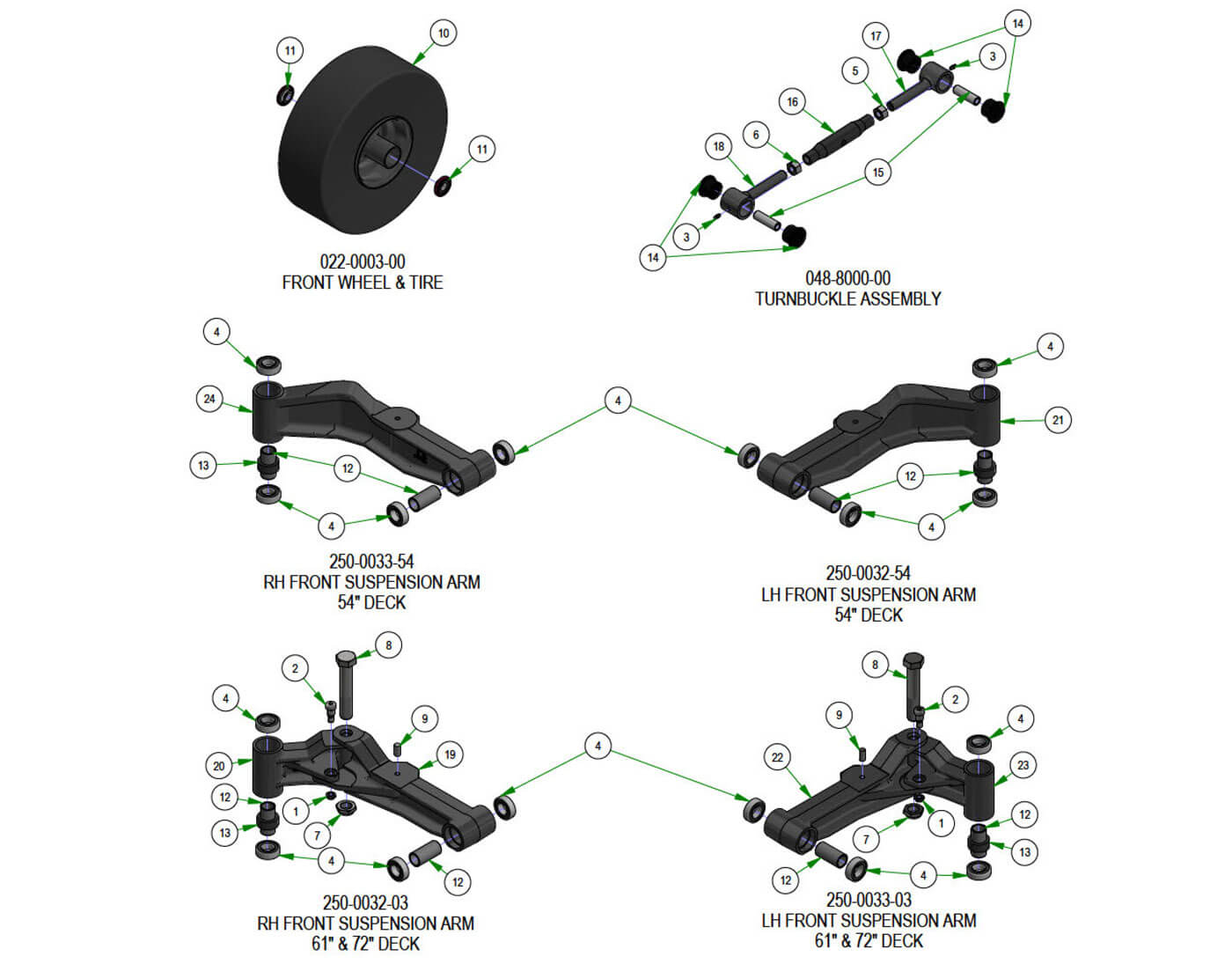

Front End Subassemblies
Parts Index
- 1 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 2 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 3 1/4 Drive-in Grease Fitting (Qty 2)
- 4 Caster Bearing (Qty 16)
- 5 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 6 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 7 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 8 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 9 1/2-13 x 1" Stud (Qty 2)
- 10 15x6-6 Tire Only (Qty 1)
- 11 1 3/4" Bearing-Large Bore (Qty 2)
- 12 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 8)
- 13 Rubber Stabilizer (Front Fork) (Qty 4)
- 14 Bushing-2015 Outlaw Toplink (Qty 4)
- 15 Sleeve-2015 Outlaw Toplink (Qty 2)
- 16 2015 Outlaw Toplink Body (Qty 1)
- 17 2015 Outlaw Toplink RH End (Qty 1)
- 18 2015 Outlaw Toplink LH End (Qty 1)
- 21 2022 Front I-Beam Left - Black (Qty 1)
- 22 61" & 72" Rogue Front Suspension Arm Inner LH (Qty 1)
- 23 61" & 72" Rogue Front Suspension Arm Outer LH (Qty 1)
-
1#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
2#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.54 USDRegular priceUnit price per
-
4#010-1050-00
Caster Bearing
Qty Used: 16Regular price $17.19 USDRegular priceUnit price per
-
5#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
6#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
7#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
8#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
9#018-2009-00
1/2-13 x 1" Stud
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
10#022-0004-00
15x6-6 Tire Only
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
11#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
12#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 8Regular price $13.12 USDRegular priceUnit price per
-
13#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 4Regular price $7.95 USDRegular priceUnit price per
-
14#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
15#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
16#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
17#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
18#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
21#250-0032-22
2022 Front I-Beam Left - Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
22#250-0033-01
61" & 72" Rogue Front Suspension Arm Inner LH
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
23#250-0033-02
61" & 72" Rogue Front Suspension Arm Outer LH
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
