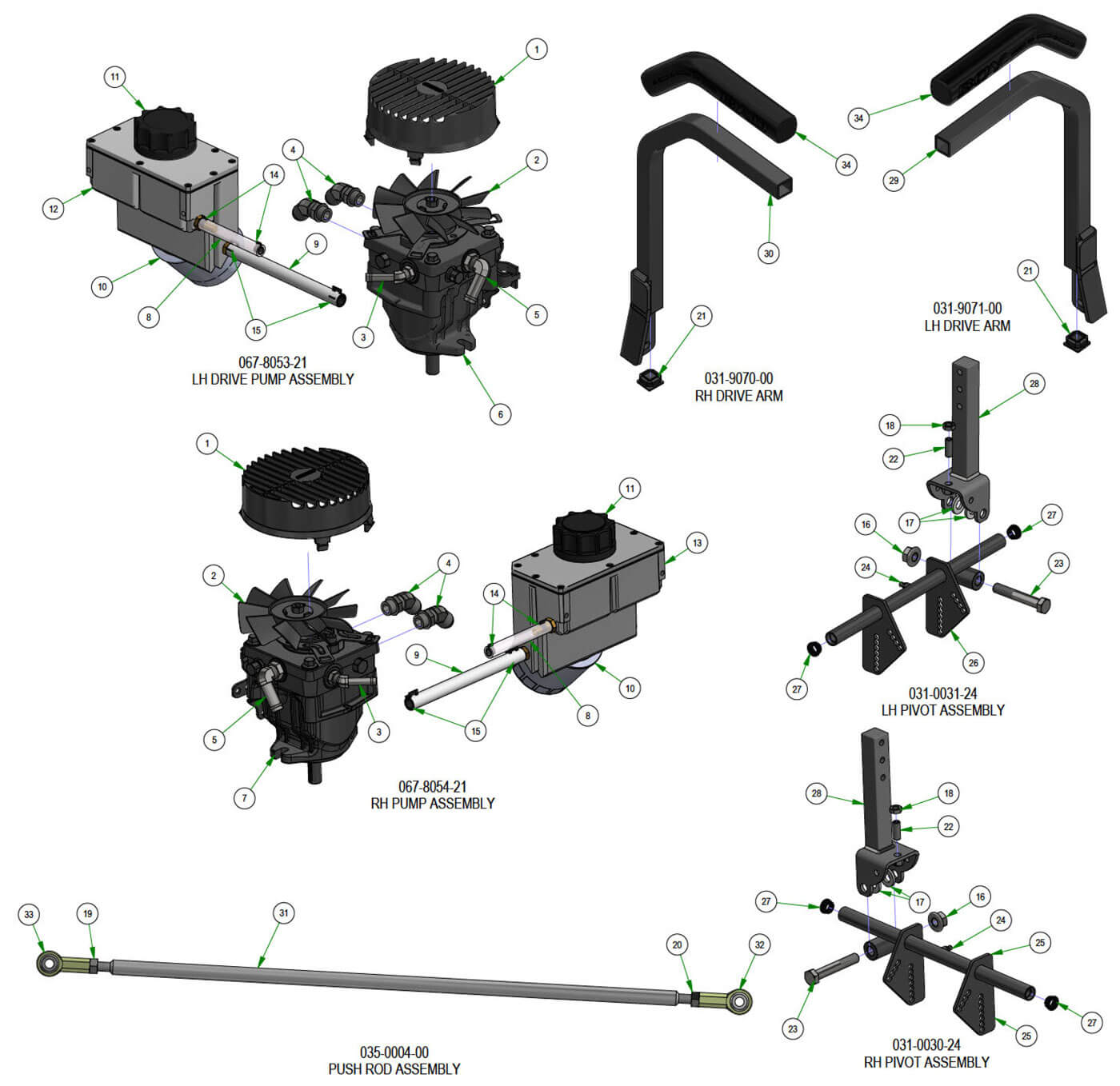

Drive Arm Subassemblies
Parts Index
- 1 Fan Guard 6" - Fits Wheel (Qty 2)
- 2 Hydro Fan - Light/Pup/Outlaw XP (Qty 2)
- 3 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 4 2019 Outlaw 45 Degree Pump Fitting (Qty 4)
- 5 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 6 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 7 2019 Rogue Right Pump 16cc (Qty 1)
- 8 3/8 Clear Hose - 4 1/4" (Qty 2)
- 9 1/2 Braided Hose - 9.5" (Qty 2)
- 10 Hydraulic Filter-All Models (Qty 2)
- 11 2022 Cap With Dip Stick (Qty 2)
- 12 2019 RG/RN Hydro Tank LH (Qty 1)
- 13 2019 RG/RN Hydro Tank RH (Qty 1)
- 14 3/8 Hose Clamp - CTB-16-STFS (Qty 4)
- 15 1/2 Hose Clamp (Qty 4)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 17 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 18 3/8-16 Half Jam Nut (Qty 2)
- 19 5/16 RH Nut (Qty 1)
- 20 5/16 LH Nut (Qty 1)
- 21 Poly Square Plug 3/4 x 3/4 (Qty 2)
- 22 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 2)
- 23 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 2)
- 24 1/4 Drive-in Grease Fitting (Qty 2)
- 25 2019 Drive Are Actuator Right-Weldment (Qty 1)
- 26 2019 Drive Are Actuator Left-Weldment (Qty 1)
- 27 Drive Arm Actuator Bushing (Qty 4)
- 28 R-Series Square Drive Arm Pivot (Qty 2)
- 29 R-Series Square Drive Arm LH Weldment (Qty 1)
- 31 2019 Outlaw Gen2 XP Push Rod (Qty 1)
- 32 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 33 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
- 34 R-Series Square Drive Grip (Qty 2)
-
1#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 2Regular price $37.21 USDRegular priceUnit price per
-
2#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
3#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
4#024-2051-00
2019 Outlaw 45 Degree Pump Fitting
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
5#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
6#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
7#050-3002-00
2019 Rogue Right Pump 16cc
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
8#051-8063-04
3/8 Clear Hose - 4 1/2"
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
9#051-8064-10
1/2 Braided Hose - 9.5"
Qty Used: 2Regular price $5.49 USDRegular priceUnit price per
-
10#063-8014-00
Hydraulic Filter-All Models
Qty Used: 2Regular price $29.13 USDRegular priceUnit price per
-
11#066-8050-22
2022 Cap With Dip Stick
Qty Used: 2Regular price $27.99 USDRegular priceUnit price per
-
12#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $150.99 USDRegular priceUnit price per
-
13#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
14#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
15#072-8066-00
1/2 Hose Clamp
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
17#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
18#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
19#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
20#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
21#014-9004-00
Poly Square Plug 3/4 x 3/4
Qty Used: 2Regular price $5.99 USDRegular priceUnit price per
-
22#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
23#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
24#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.54 USDRegular priceUnit price per
-
25#031-0030-10
2019 Drive Are Actuator Right-Weldment
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
26#031-0031-10
2019 Drive Are Actuator Left-Weldment
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
27#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 4Regular price $6.62 USDRegular priceUnit price per
-
28#031-0070-00
R-Series Square Drive Arm Pivot
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
29#031-9021-00
R-Series Square Drive Arm LH Weldment
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
31#035-0004-01
2019 Outlaw Gen2 XP Push Rod
Qty Used: 1Regular price $37.14 USDRegular priceUnit price per
-
32#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
33#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
34#069-4014-00
R-Series Square Drive Grip
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
