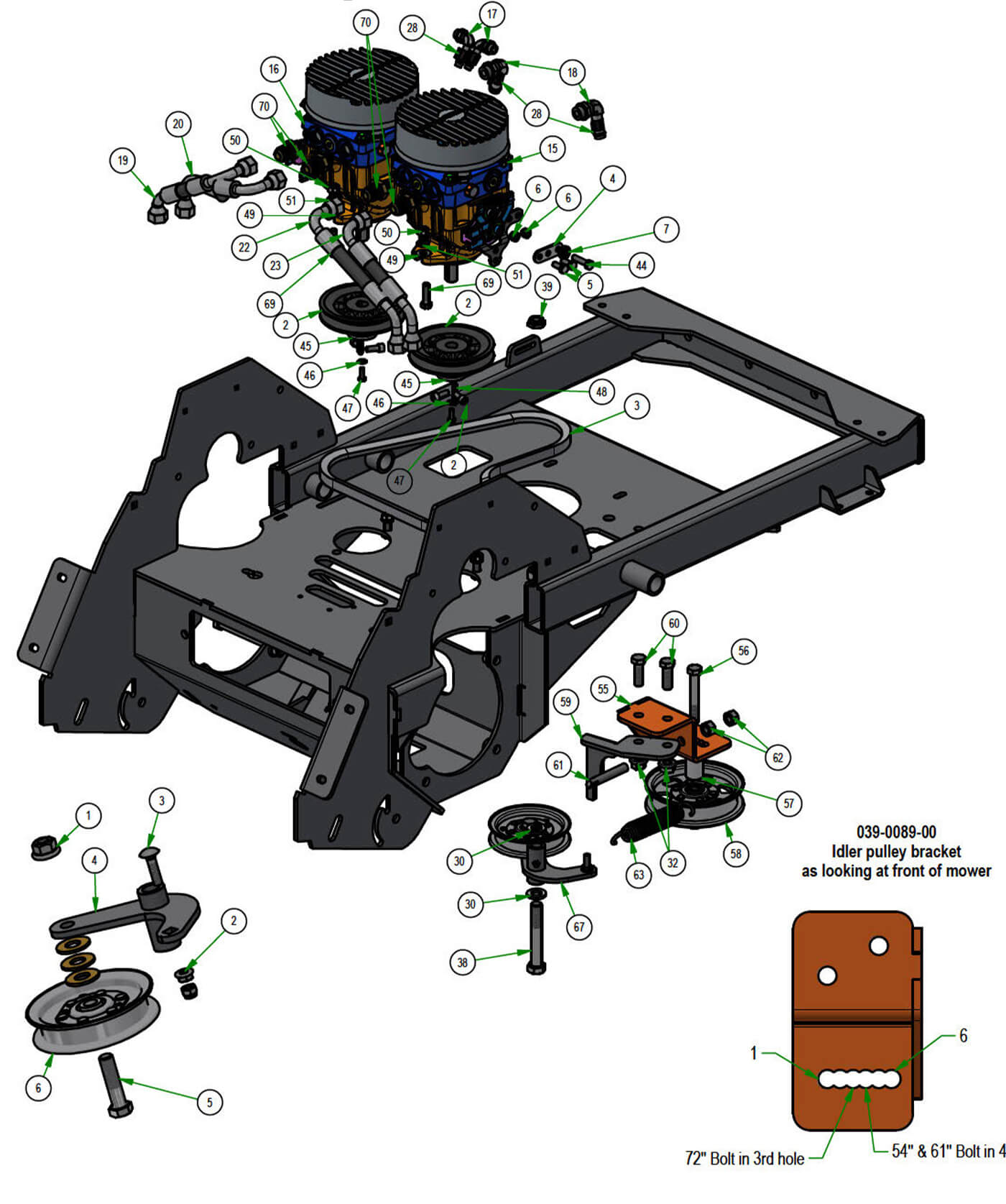

Pump & Wheel Motors 2
Parts Index
- 2 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 3 Revolt X Pump Belt (Qty 1)
- 5 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 6 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 7 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 16 HGM Pump Motor RH/Used on LH side of Revolt X (Qty 1)
- 17 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 18 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 19 Hose #1 - ½” 100R17 3 1/4” (Qty 1)
- 20 Hose #2 - ½” 100R17 4.75” (Qty 1)
- 22 Hose #3 - ½” 100R17 5 3/8” (Qty 1)
- 23 Hose #4 - ½” 100R17 4” (Qty 1)
- 28 1/2 Hose Clamp (Qty 11)
- 30 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 32 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 38 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 39 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 44 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 45 Rogue Pump Washer (Qty 2)
- 46 1/4 Lockwasher Zinc (Qty 2)
- 47 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 48 M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS (Qty 2)
- 49 5/16 USS Flat Washer Zinc (Qty 4)
- 50 3/8-16 Hex Nuts Zinc (Qty 4)
- 51 3/8 Lockwasher Zinc (Qty 4)
- 55 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 56 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 57 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 58 5 3/4 Idler Pulley-Capitol (Qty 1)
- 59 Clutch Stop Bracket--Plated Rev B (Qty 1)
- 60 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 61 All Thread (Qty 1)
- 62 1/2-13 Hex Nuts Zinc (Qty 2)
- 63 2015 Deck Idler Spring (Qty 1)
- 67 2025 Revolt X Drive Pulley Assembly (Qty 1)
- 69 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 70 Hydraulic Pump Fitting 6400-10 (Qty 8)
- 1.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2.1 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 3.1 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 5.1 1/2-13 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 6.1 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
