Podium

Podium

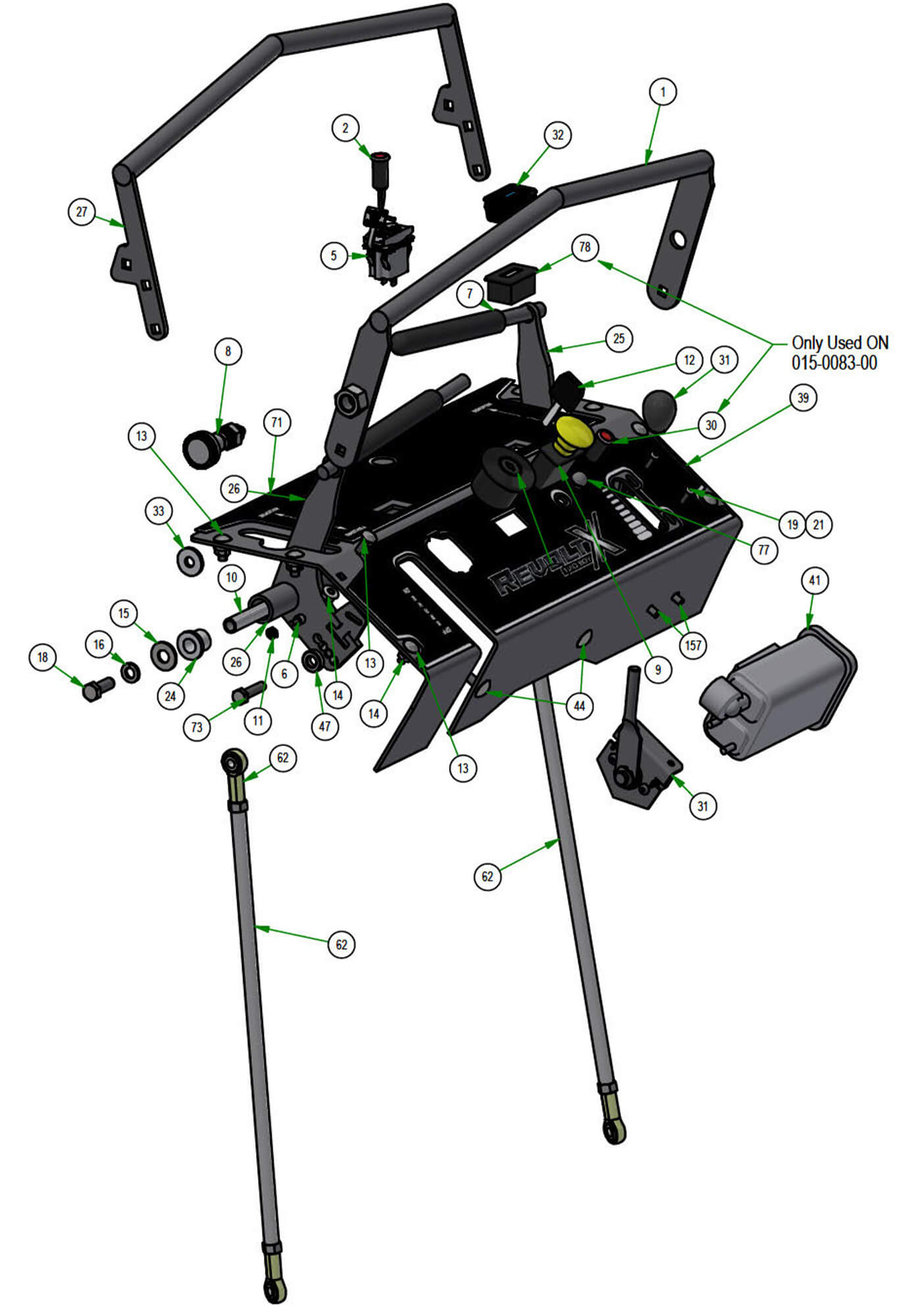

Parts Index

1 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
2 Oil Light (Qty 1)
5 USB Port (Qty 1)
6 Magnet-Steering Arm-Stand ON (Qty 2)
7 2019 Revolt Cushioned hand Grip (Qty 2)
8 Plunger 5/8-11 All Stainless Steel (Qty 1)
9 PTO Engager-Switch for Blades (Qty 1)
10 2019 Stand On Drive Pivot Bar (Qty 1)
11 8-32 Hex M/S Nut (Qty 2)
12 Ignition Key (Qty 1)
13 1/4 x 3/4 Carriage Bolt (Qty 10)
14 1/4-20 Nylon Insert Flange Nut (Qty 10)
15 3/8 USS Flat Washer Zinc (Qty 6)
16 3/8 Lockwasher Zinc (Qty 2)
18 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
19 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
21 10-24 Nylon Insert Locknut Zin (Qty 2)
24 2023 Revolt Drive Arm Bushings (Qty 4)
30 MIL Light (Qty 1)
31 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
32 Tach For FX1000 EFI & EVO 781 & 820 (Qty 1)
33 .360 ID Plastic Washer (Qty 2)
41 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
44 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 2)
47 ACS Spacer 3/4x3/8x1/4 (Qty 2)
71 48,54, & 61 Revolt Upper Control Panel Decal (Qty 1)
73 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
77 Black Plug - 5/8" Head (Qty 1)
78 Tachometer-Kohler/Yamaha EFI (Qty 1)
157 M6-1.0x12mm Bolt 8.8 (Qty 2)
