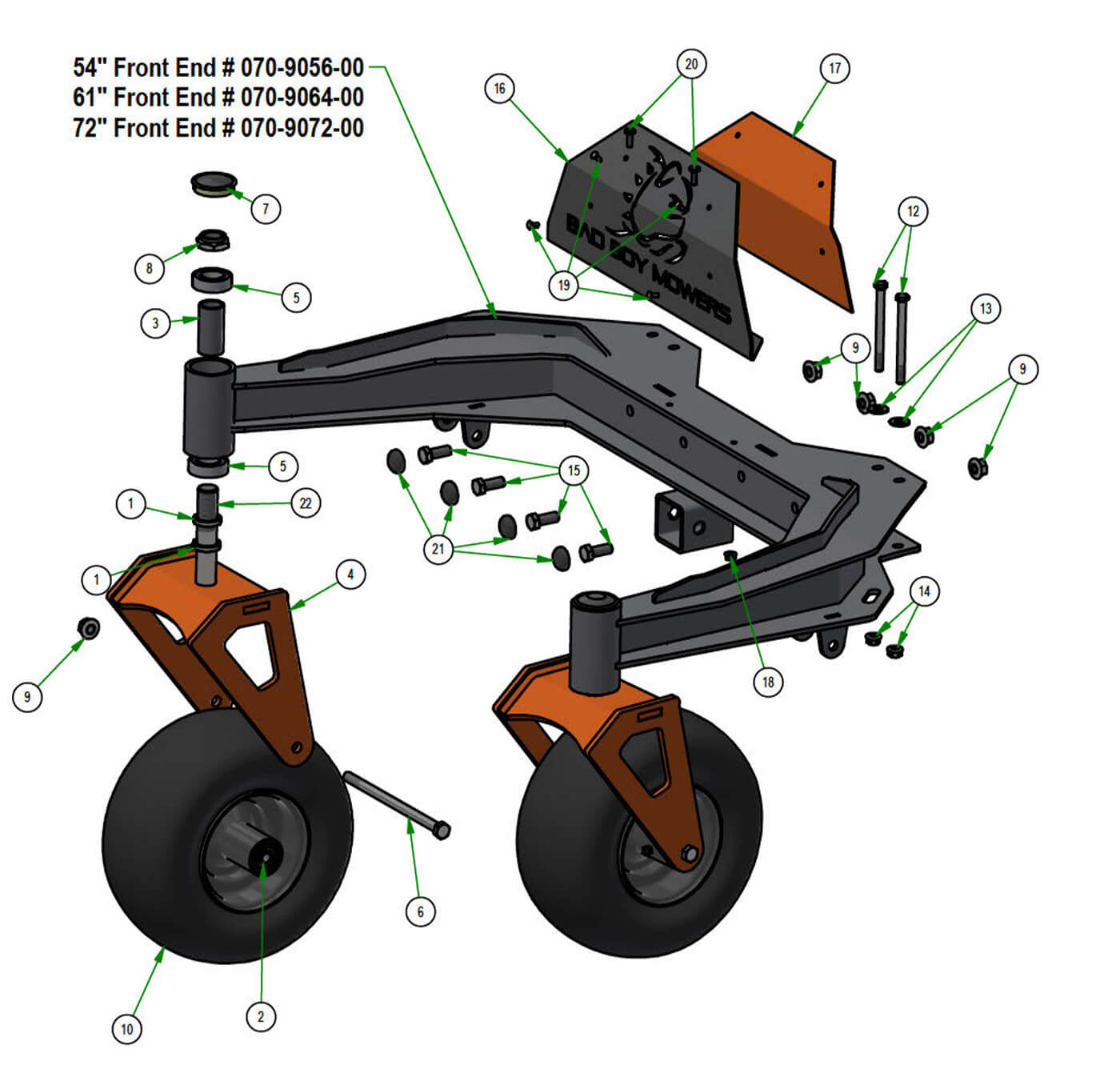

Front End
Parts Index
- 1 Spacer ( Front Fork and Suspension ) (Qty 4)
- 2 Front Wheel Spanner-All Models (Qty 2)
- 3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 4 REV/MAV front fork (Qty 2)
- 5 Caster Bearing (Qty 4)
- 6 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 7 Bearing Retainer Cap (Qty 2)
- 8 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 6)
- 10 13x6.50-6 Black No Flat Assembly (Qty 2)
- 12 3/8-16’’ x4 ½’’ Hex Gr5 bolt (Qty 4)
- 13 3/8 USS Flat Washer Zinc (Qty 4)
- 14 3/8 Nylock Flange Nut (Qty 4)
- 15 1/2-13 X 1-1/4 Hex Bolt (Qty 4)
- 16 Exhaust Shield--Black (Qty 1)
- 17 Exhaust Backer Plate--Orange (Qty 1)
- 18 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 19 3/16" Diameter, for 0.1260"-0.25" Material Thick (Qty 4)
- 20 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 21 Fastener Caps (Qty 4)
- 22 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
-
1#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 4Regular price $5.83 USDRegular priceUnit price per
-
2#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
3#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
4#023-1010-00
REV/MAV front fork
Qty Used: 2Regular price $145.95 USDRegular priceUnit price per
-
5#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
6#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $6.53 USDRegular priceUnit price per
-
7#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
8#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
10#022-3088-00
13x6.50-6 Black No Flat Assembly
Qty Used: 2Regular price $145.99 USDRegular priceUnit price per
-
12#018-0117-00
3/8-16’’ x4 ½’’ Hex Gr5 bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
13#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
15#018-2080-00
1/2-13 X 1-1/4 Hex Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
16#026-0433-00
Exhaust Shield--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
17#026-0085-00
Exhaust Backer Plate--Orange
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
18#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $0.95 USDRegular priceUnit price per
-
19#013-0026-00
3/16" Diameter, for 0.1260"-0.25" Material Thick
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
20#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
21#014-0005-00
Fastener Caps
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
22#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
