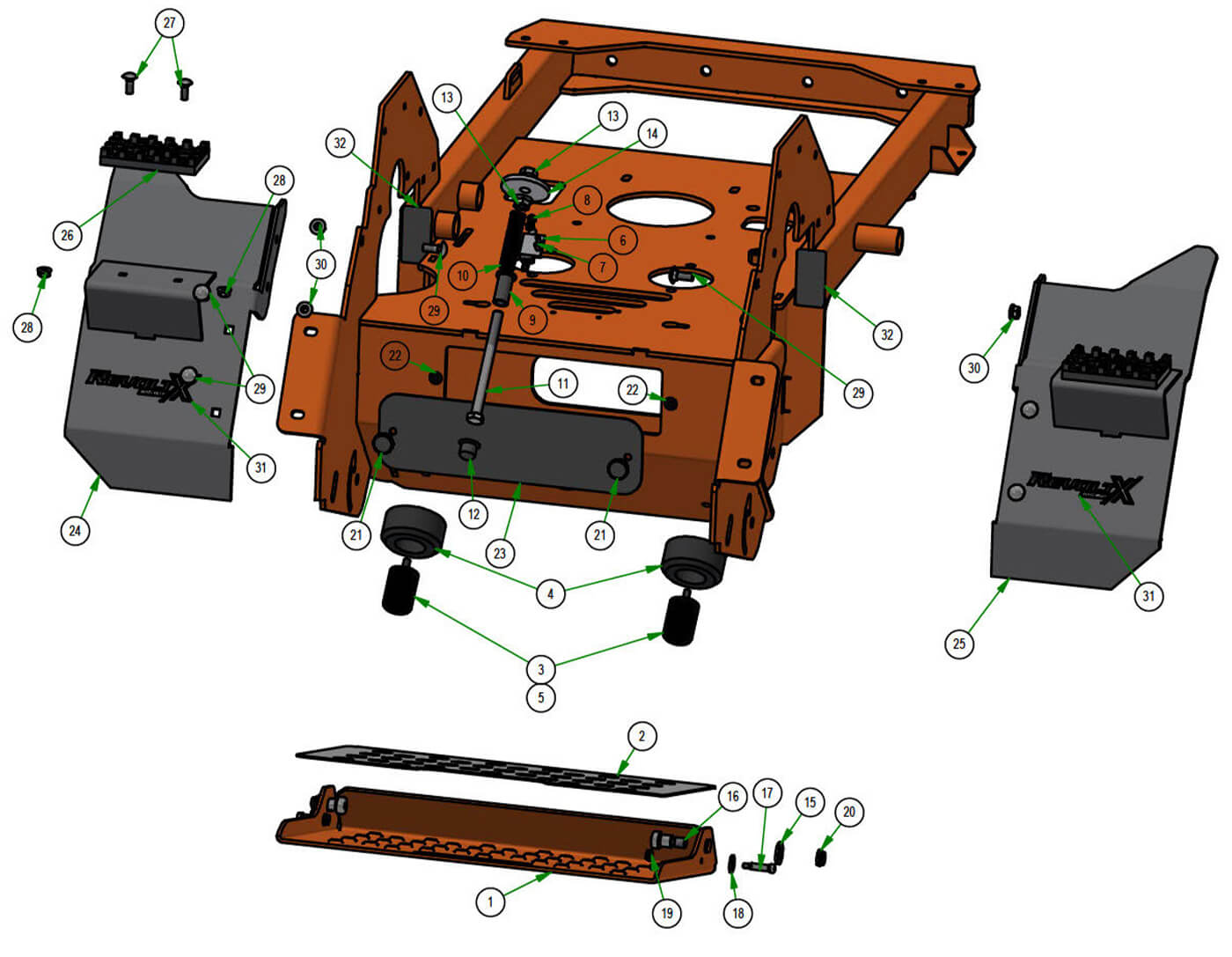

Fenders & Platform
Parts Index
- 1 2023 Revolt Platform--Orange (Qty 1)
- 2 Grip Tape for 026-0062-00 (Qty 1)
- 3 Revolt Platform Dampener Cylinder (Qty 2)
- 4 Revolt Platform Bumper (Qty 2)
- 5 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 6 2017? Walk Behind-Safety Switch (Qty 1)
- 7 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 8 10-24 Nylon Insert Locknut Zin (Qty 2)
- 9 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
- 10 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 11 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 12 Hex Nut Cap (Qty 1)
- 13 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 14 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 15 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 16 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 17 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 18 5/16 USS Flat Washer Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 20 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 21 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 22 Wellnut 1/4-20 x 5/8 (Qty 2)
- 26 Deck Step (Qty 2)
- 27 5/16 x 7/8 Carriage Bolt (Qty 4)
- 28 5/16-18 Nylon Flange Nut (Qty 4)
- 29 3/8 x 1 Carriage Bolt (Qty 6)
- 30 3/8 Nylock Flange Nut (Qty 6)
- 31 Revolt X Fender Decal (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
