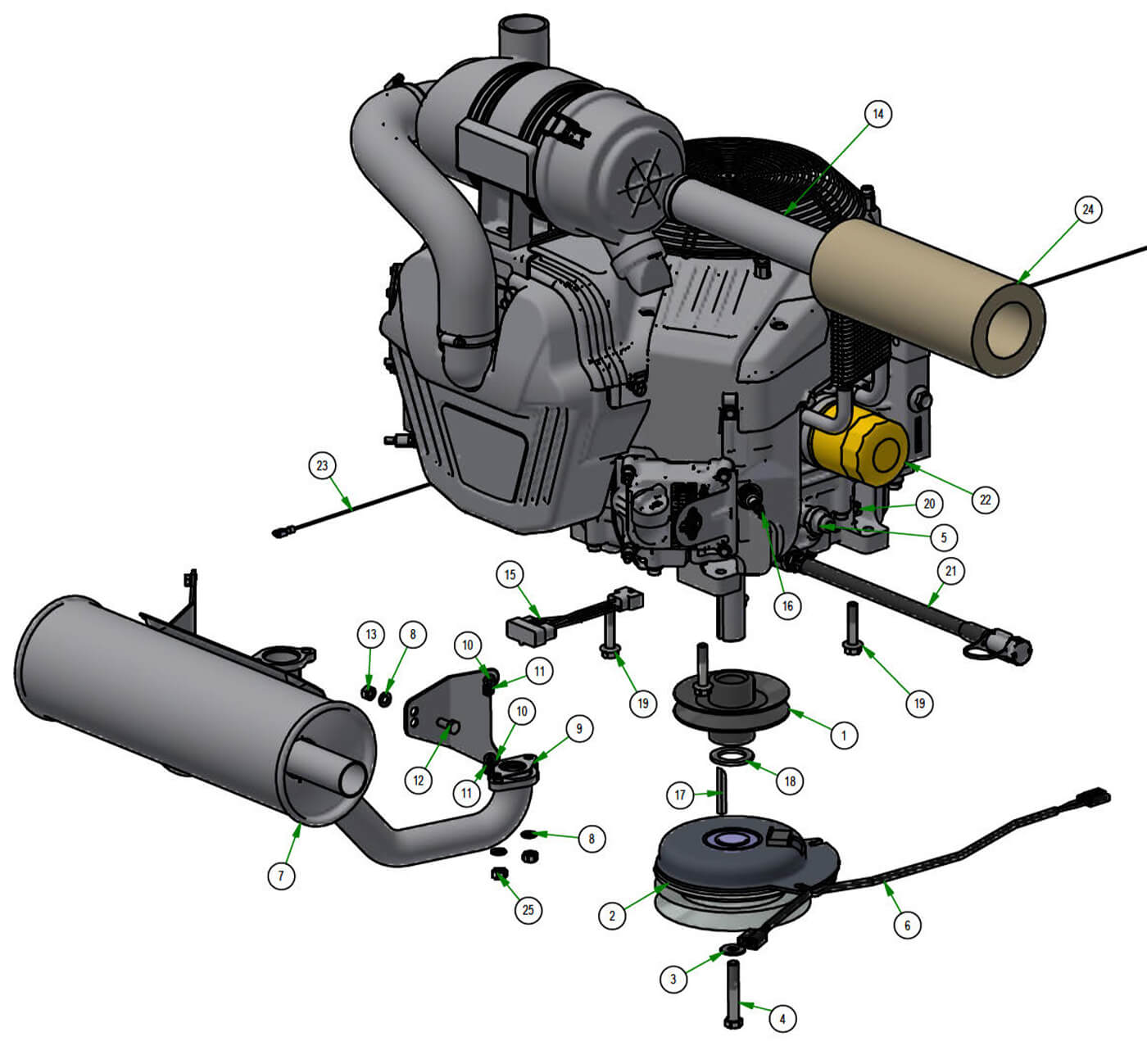

Engine - Vanguard EFI
Parts Index
- 1 4 3/4 Motor Pulley (Qty 1)
- 2 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 3 3/8 USS Flat Washer Zinc (Qty 1)
- 4 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 5 40HP Vanguard Vertical Shaft (Qty 1)
- 6 Clutch Pigtail (Qty 1)
- 8 5/16 Lock washer Zinc (Qty 6)
- 9 Exhaust Gasket for 23 (Qty 2)
- 10 1/4 Lockwasher Zinc (Qty 4)
- 11 6MM Hex Nut (Qty 4)
- 12 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 13 5/16-18 Hex Nuts Zinc (Qty 2)
- 14 Canister Air Filter - Inner (Qty 1)
- 15 2024 Vanguard EFI Vertical Engine Pigtail (Qty 1)
- 16 Spark Plug-Kohler/Briggs (Qty 2)
- 17 1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN (Qty 1)
- 18 1.140x1.750x .132 Flat Washer (Qty 1)
- 19 3/8-16x1 ¾ Gr5 Hex Flange Bolt Zinc Clear (Qty 4)
- 20 3/8-16 Hex Flange Top L/N (Qty 4)
- 21 14mm Drain Hose-36hp Vanguard (Qty 1)
- 22 Briggs Oil Filter (Qty 1)
- 23 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
- 24 Canister Air Fil Outer2010&Old (Qty 1)
- 25 M8 - 1.25 Stainless Steel Nut (Qty 4)
-
1#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
-
3#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
5#015-4040-00
40HP Vanguard Vertical Shaft
Qty Used: 1Regular price $3,999.99 USDRegular priceUnit price per
-
6#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
9#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
10#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#013-4023-00
6MM Hex Nut
Qty Used: 4Regular price $0.50 USDRegular priceUnit price per
-
12#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
13#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
15#086-9023-00
2024 Vanguard EFI Vertical Engine Pigtail
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
16#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
17#042-0012-00
1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
18#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
19#018-0115-00
3/8-16x1 ¾ Gr5 Hex Flange Bolt Zinc Clear
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
20#013-0009-00
3/8-16 Hex Flange Top L/N
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
21#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
22#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $24.79 USDRegular priceUnit price per
-
23#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
24#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
25#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
