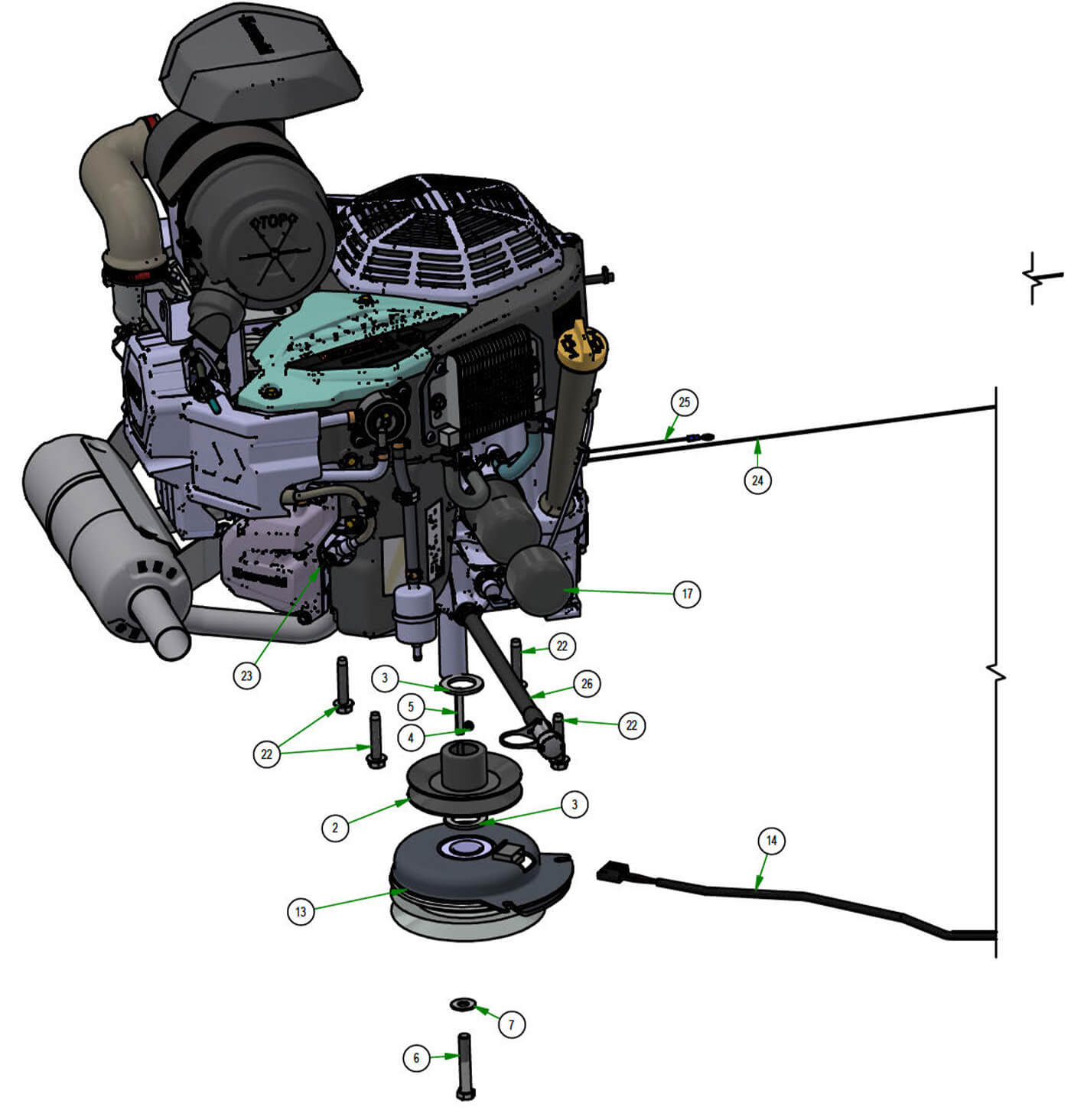

Engine - Kawasaki EVO 781 2
Parts Index
- 1 19" Revolt Fuel Line Assembly (Qty 1)
- 2 4 3/4 Motor Pulley (Qty 1)
- 3 1.140x1.750x .132 Flat Washer (Qty 2)
- 4 5/16-24 x 1/4 Set Screw (Qty 1)
- 5 1/4 X 2 Square Key Stock (Qty 1)
- 6 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 7 3/8 USS Flat Washer Zinc (Qty 1)
- 13 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 14 Clutch Pigtail (Qty 1)
- 16 FX781V-EVO (Qty 1)
- 17 Kawasaki Oil Filter (Qty 2)
- 22 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 23 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 24 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
- 26 14mm Drain Hose-36hp Vanguard (Qty 1)
-
1#051-8067-19
19\" Revolt Fuel Line Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
3#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
4#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
5#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
6#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
-
14#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
16#015-0781-00
FX781V-EVO
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
17#063-8017-00
Kawasaki Oil Filter
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
22#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
23#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
24#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
26#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
