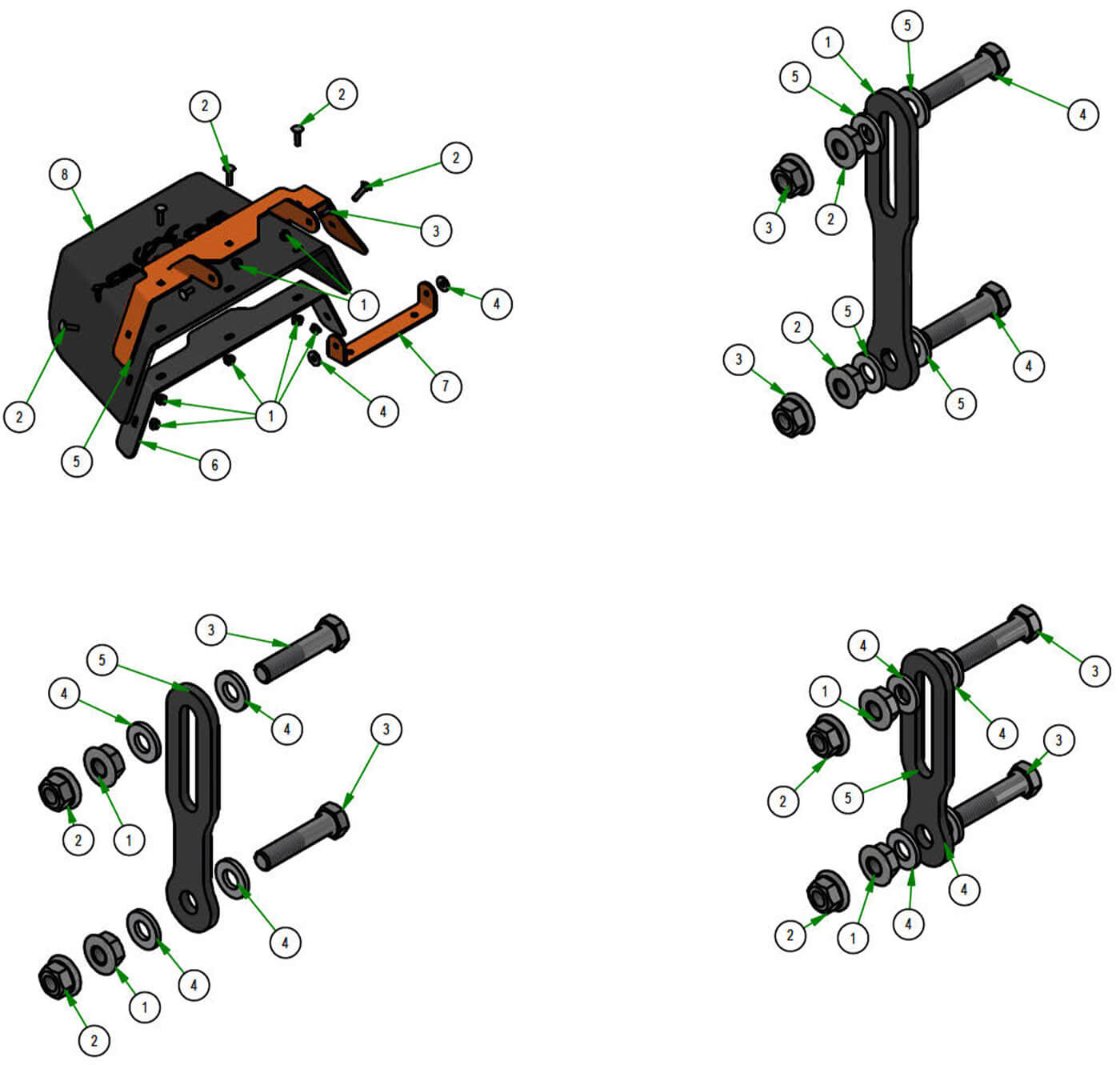

Deck Subassemblies 2
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 7)
- 2 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 3 5/16 x 7/8 Carriage Bolt (Qty 2)
- 4 .360 ID Plastic Washer (Qty 2)
- 5 Chute Bracket (upper) (Qty 1)
- 6 Chute Bracket (lower) (Qty 1)
- 7 Chute Hanger (Qty 1)
- 8 Discharge Chute (Rubber Component) (Qty 1)
- 1.2 48"/54" Rear Deck Hanger--Black (Qty 1)
- 2.2 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 3.2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 4.2 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 5.2 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 1.3 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 2.3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3.3 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 4.3 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 5.3 OBSOLETE USE 039-2125-17 (Qty 1)
- 5.4 61" Front Deck Hanger--Black (Qty 1)
- 1.4 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 2.4 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3.4 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 4.4 .505 ID X 1 OD X .128 THK Washer (Qty 4)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
2#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
3#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
6#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-
7#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
8#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
1.2#039-0245-00
48"/54" Rear Deck Hanger--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
2.21.31.4#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3.22.32.4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4.23.33.4#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
5.24.34.4#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
5.3#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
5.4#039-0244-00
61" Front Deck Hanger--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
