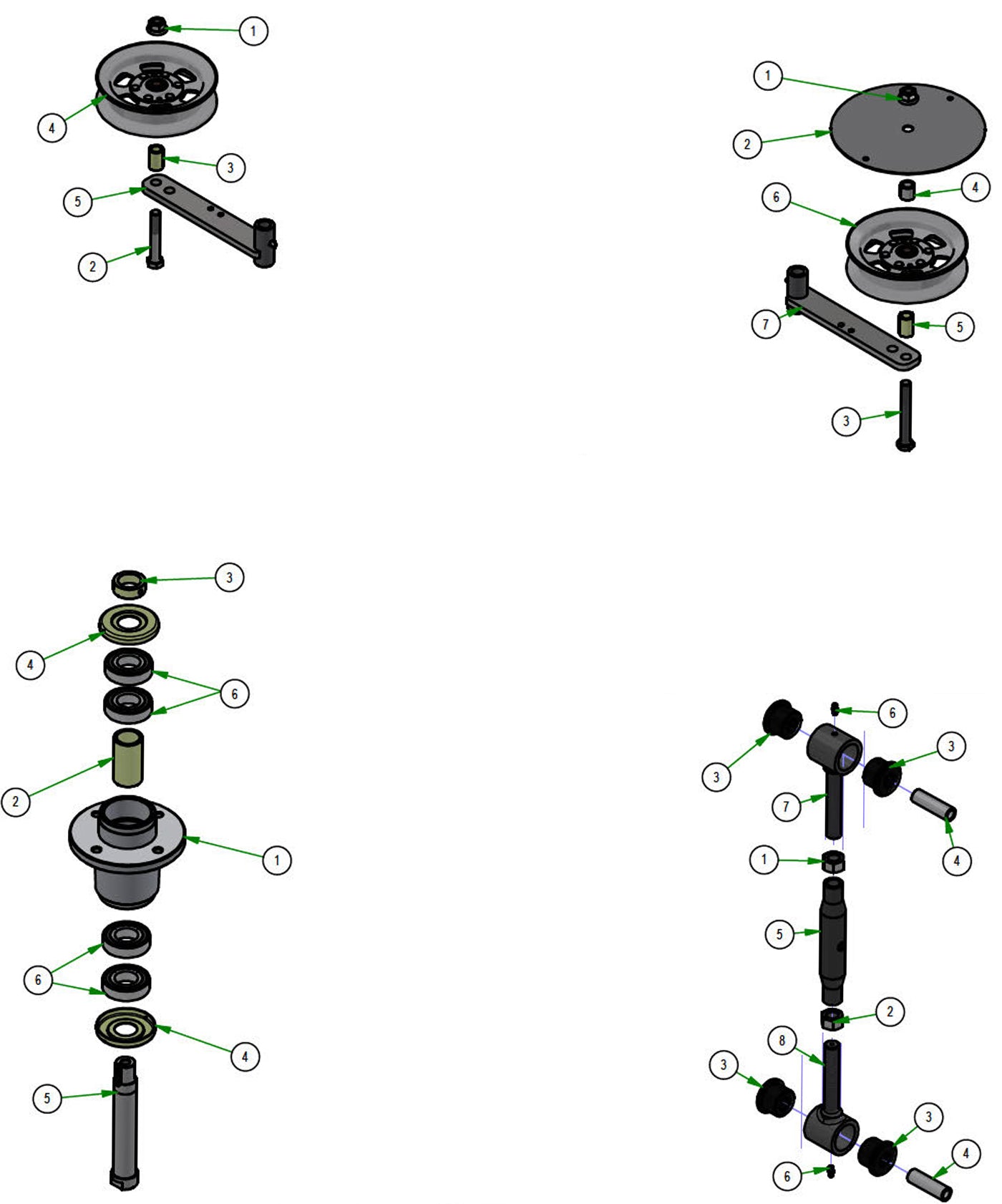

Deck Subassemblies
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 3 .502x.750x1.130 Length Spacer (Qty 1)
- 4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 5 Idler Bracket (Qty 1)
- 1.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3.1 1/2-13 X 3.75 Hex Bolt-Grade 5 (Qty 1)
- 4.1 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 5.1 .502x.750x1.130 Length Spacer (Qty 1)
- 6.1 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 7.1 Idler Bracket (Qty 1)
- 1.2 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 2.2 2015 Spindle Spacer (Qty 1)
- 3.2 Collar Spacer - Top of Spindle (Qty 1)
- 4.2 Dust Cover for 037-8000-00 - (Qty 2)
- 5.2 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 6.2 OBSOLETE USE 037-6029-00 (Qty 4)
- 1.3 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 2.3 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 3.3 Bushing-2015 Outlaw Toplink (Qty 4)
- 4.3 Sleeve-2015 Outlaw Toplink (Qty 2)
- 5.3 2015 Outlaw Toplink Body (Qty 1)
- 6.3 1/4 Drive-in Grease Fitting (Qty 2)
- 7.3 2015 Outlaw Toplink RH End (Qty 1)
- 8.3 2015 Outlaw Toplink LH End (Qty 1)
-
11.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
35.1#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
46.1#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
57.1#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
3.1#018-0051-00
1/2-13 X 3.75 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
4.1#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
1.2#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
3.2#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
4.2#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
5.2#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
6.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
1.3#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
2.3#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
3.3#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
4.3#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
5.3#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
6.3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.54 USDRegular priceUnit price per
-
7.3#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
8.3#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
