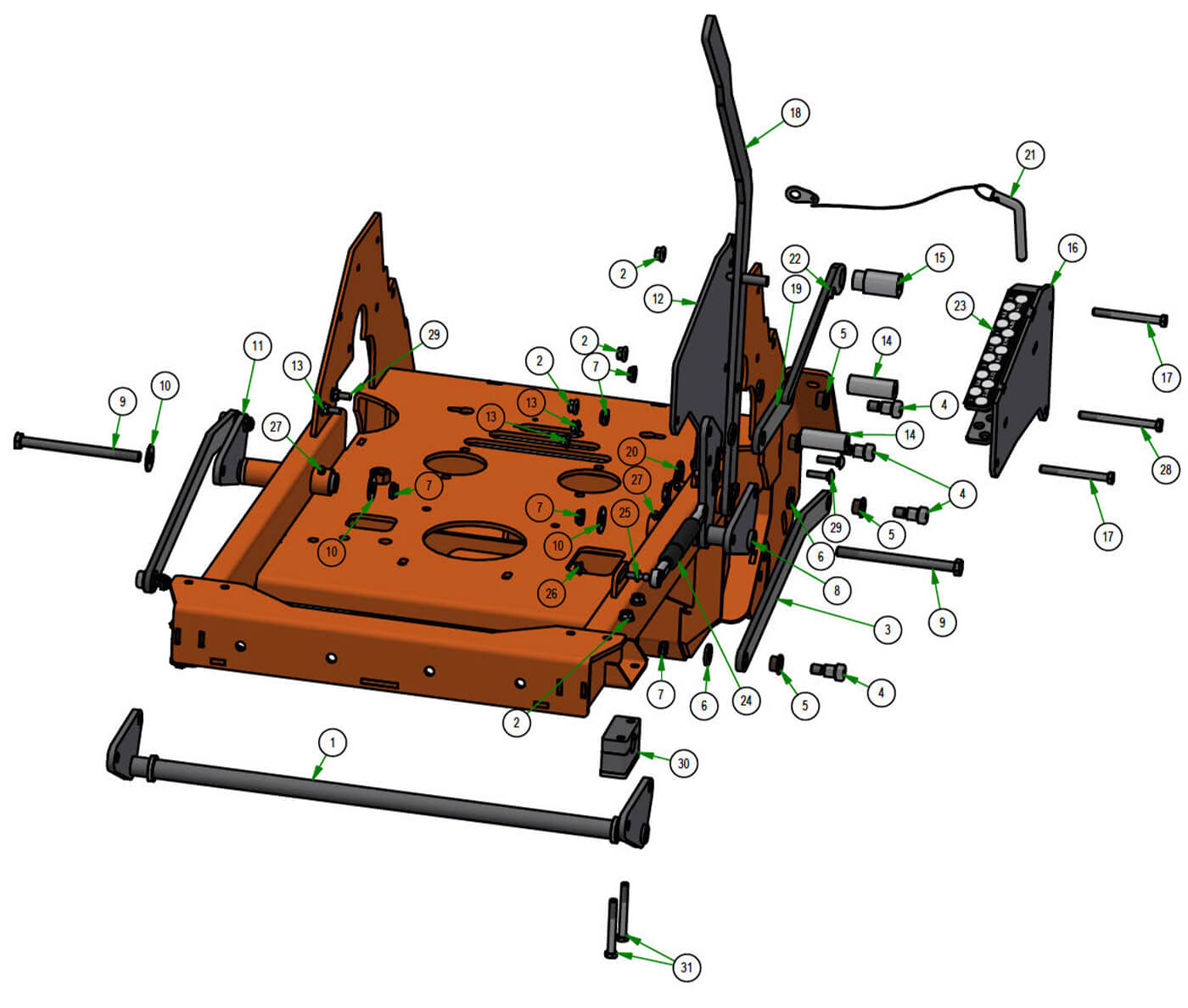

Deck Height
Parts Index
- 12 Front Actuator--Black (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 7)
- 3 2023 Stand On Actuator Linkage--Black (Qty 2)
- 4 5/8 x 5/8 Shoulder Bolt (Qty 6)
- 5 Bronze Bushing - SF-2024-8 (Qty 6)
- 6 .630 ID X 1.122 OD X .142 THK (Qty 6)
- 7 1/2-13 Nylon Insert Jam Locknut (Qty 8)
- 9 1/2-13 x 6 1/2 Hex Bolt Grade 5 (Qty 2)
- 10 1/2 Flat Washer (Qty 4)
- 13 5/16-18 Nylon Flange Nut (Qty 4)
- 14 Revolt Spacer 2.5" (Qty 2)
- 15 Stand On Spacer 2.5" With Shoulder (Qty 1)
- 17 3/8’’-16 x 3 ¾’’ Hex bolt Grade 5 (Qty 2)
- 18 2023 Revolt Lift Lever--Orange (Qty 1)
- 19 Lever Secondary Linkage--Black (Qty 1)
- 21 2023 Revolt Deck Height Pin (Qty 1)
- 22 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 23 Revolt Deck Height Indicator (Qty 1)
- 24 Dampener (200lbs) (Qty 1)
- 25 10mm Ball Stud (Long Thread) (Qty 2)
- 26 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 27 1/8" Drive-in Grease Fitting No Ball (Qty 3)
- 28 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 1)
- 29 5/16-18 X 1-1/4 Carriage Bolt (Qty 4)
- 30 Revolt X Pillow Block Assembly (Qty 2)
- 31 3/8-16 X 3 GR 5 Hex Bolts Zinc (Qty 4)
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 7Regular price $1.49 USDRegular priceUnit price per
-
3#026-0300-00
2023 Stand On Actuator Linkage--Black
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
4#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 6Regular price $14.59 USDRegular priceUnit price per
-
5#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 6Regular price $4.37 USDRegular priceUnit price per
-
6#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
7#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 8Regular price $1.59 USDRegular priceUnit price per
-
9#018-0038-00
1/2-13 x 6 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
10#019-2040-00
1/2 Flat Washer
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
12#028-0068-00
Front Actuator--Black
Qty Used: 1Regular price $54.90 USDRegular priceUnit price per
-
13#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#025-5343-00
Revolt Spacer 2.5"
Qty Used: 2Regular price $10.29 USDRegular priceUnit price per
-
15#025-0081-00
Stand On Spacer 2.5" With Shoulder
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
17#018-0084-00
3/8’’-16 x 3 ¾’’ Hex bolt Grade 5
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
18#031-7153-00
2023 Revolt Lift Lever--Orange
Qty Used: 1Regular price $69.95 USDRegular priceUnit price per
-
19#028-5002-00
Lever Secondary Linkage--Black
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
21#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
22#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
23#091-0025-00
Revolt Deck Height Indicator
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
24#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
25#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
26#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
27#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 3Regular price $0.99 USDRegular priceUnit price per
-
28#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $2.59 USDRegular priceUnit price per
-
29#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
30#017-9082-00
Revolt X Pillow Block Assembly
Qty Used: 2Regular price $73.99 USDRegular priceUnit price per
-
31#018-4700-00
3/8-16 X 3 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
