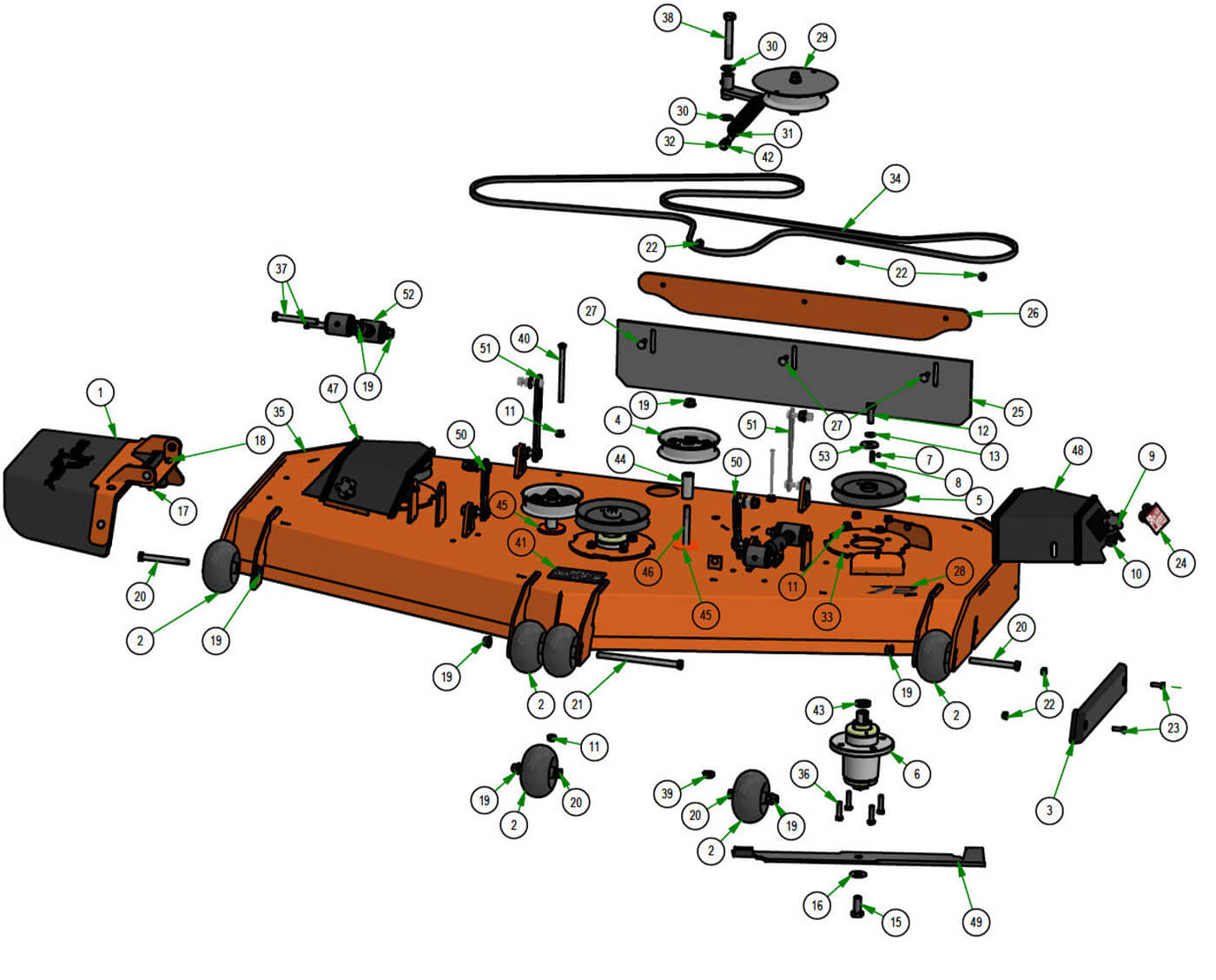

72" Deck
Parts Index
- 1 R-Series, Revolt Chute Assembly (Qty 1)
- 2 Deck Wheel (Qty 6)
- 3 Bumper (Deck) (Qty 1)
- 4 5 3/4 Idler Pulley-Capitol (Qty 2)
- 5 7" Spindle Deck Pulley (Qty 3)
- 6 Commercial Cast Iron Spindle (Qty 3)
- 7 5/16-24 x 1/4 Set Screw (Qty 3)
- 8 1/4 x 1 Square Key (Qty 3)
- 9 5/16 Black Plastic Knob (Qty 4)
- 10 .360 ID Black Plastic Washer (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 16)
- 12 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 13 1/2 Lockwasher Zinc (Qty 3)
- 14 1/2 Belleville Washer #K2000-G (Qty 1)
- 15 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 16 5/8 Flat Washer (Qty 3)
- 17 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 18 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 19 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 20 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 21 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 22 5/16-18 Nylon Flange Nut (Qty 5)
- 23 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 24 Danger Decal-Spindle/Discharge (Qty 2)
- 25 Stripe Kit Rubber Only-R Series Deck (Qty 1)
- 26 61" Bolt In Baffle Deck V2 Striping Plate--Orange (Qty 1)
- 27 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 28 MY24 72" Deck Decal (Qty 1)
- 29 Idler Assembly (61" Deck) (Qty 1)
- 30 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 31 Deck Spring 2019 Models (Qty 1)
- 32 All Thread (Qty 1)
- 33 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 34 72" Revolt X Deck Belt (Qty 1)
- 36 3/8 x 1 1/2 Bolt (Qty 12)
- 37 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 38 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 39 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 40 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 41 61" Revolt Deck Belt Route Decal (Qty 1)
- 42 1/2-13 Hex Nuts Zinc (Qty 2)
- 43 Spacer ( Front Fork and Suspension ) (Qty 3)
- 44 2019 Stand On Stationary Idler Spacer (Qty 2)
- 45 ZT/CZT Deck Round Spacer Idler--Plated (Qty 2)
- 46 1/2 -13 x 4.25 gr. 5 hex bolt (Qty 2)
- 47 Pulley Cover RH Rogue, Rebel, Renegade 72" (Qty 1)
- 48 Pulley Cover LH Rebel, Rogue, Renegade 72" (Qty 1)
- 49 72" High Lift Blade (Qty 3)
- 52 Turnbuckle - QT450 (Qty 2)
- 53 1/2 Belleville Washer #K2000-G (Qty 3)
-
1#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
2#022-1001-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
3#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
4#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
5#033-7203-00
7" Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
6#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
7#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
8#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
9#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
10#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 16Regular price $1.49 USDRegular priceUnit price per
-
12#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
13#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
1453#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
15#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
16#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
17#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
18#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
20#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
21#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
22#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
23#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
24#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
25#084-5004-00
Stripe Kit Rubber Only-R Series Deck
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
26#026-0234-00
61" Bolt In Baffle Deck V2 Striping Plate--Orange
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
27#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
28#091-0507-00
MY24 72" Deck Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
29#039-6945-20
Idler Assembly (61" Deck)
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
30#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
31#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
32#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
33#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
34#041-4025-00
72" Revolt X Deck Belt
Qty Used: 1Regular price $131.30 USDRegular priceUnit price per
-
36#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
37#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
38#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
39#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
40#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
41#091-4052-00
61\" Revolt Deck Belt Route Decal
Qty Used: 1Regular price $5.99 USDRegular priceUnit price per
-
42#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 3Regular price $5.83 USDRegular priceUnit price per
-
44#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 2Regular price $7.69 USDRegular priceUnit price per
-
45#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
46#018-7049-00
1/2 -13 x 4.25 gr. 5 hex bolt
Qty Used: 2Regular price $1.74 USDRegular priceUnit price per
-
47#014-5055-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
48#014-5054-00
Pulley Cover LH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
49#038-7230-00
72" High Lift Fusion Blade
Qty Used: 3Regular price $22.49 USDRegular priceUnit price per
-
52#048-9000-00
Turnbuckle - QT450
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
