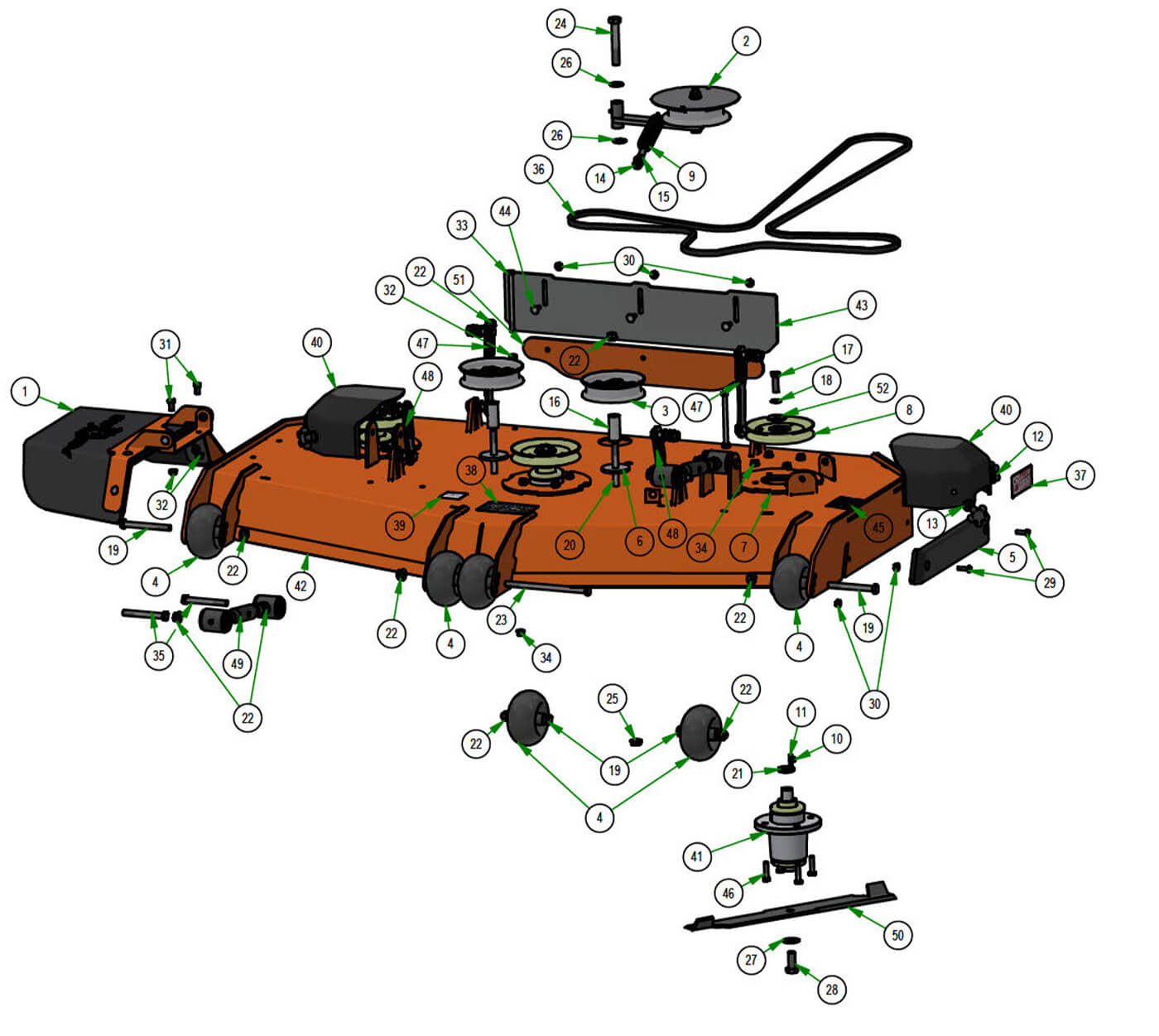

61" Deck
Parts Index
- 1 R-Series, Revolt Chute Assembly (Qty 1)
- 2 Idler Assembly (61" Deck) (Qty 1)
- 3 5 3/4 Idler Pulley-Capitol (Qty 2)
- 4 Deck Wheel (Qty 6)
- 5 Bumper (Deck) (Qty 1)
- 6 ZT/CZT Deck Round Spacer Idler--Plated (Qty 2)
- 7 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 8 6 1/4 Spindle Deck Pulley (Qty 3)
- 9 Deck Spring 2019 Models (Qty 1)
- 10 5/16-24 x 1/4 Set Screw (Qty 3)
- 11 1/4 x 1 Square Key (Qty 3)
- 12 5/16 Black Plastic Knob (Qty 4)
- 13 .360 ID Black Plastic Washer (Qty 4)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 15 All Thread (Qty 1)
- 16 2019 Stand On Stationary Idler Spacer (Qty 2)
- 17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 18 1/2 Lockwasher Zinc (Qty 3)
- 19 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 20 1/2 -13 x 4.25 gr. 5 hex bolt (Qty 2)
- 21 Spacer ( Front Fork and Suspension ) (Qty 3)
- 22 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 23 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 24 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 25 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 26 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 27 5/8 Flat Washer (Qty 3)
- 28 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 29 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 30 5/16-18 Nylon Flange Nut (Qty 5)
- 31 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 32 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 33 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 34 3/8 Nylock Flange Nut (Qty 14)
- 35 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 36 42" MZ Magnum/42"CZT Deck Belt (Qty 1)
- 37 Danger Decal-Spindle/Discharge (Qty 2)
- 38 61" Revolt Deck Belt Route Decal (Qty 1)
- 39 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 40 2023 Revolt Pulley Covers (Qty 2)
- 41 Commercial Cast Iron Spindle (Qty 3)
- 42 2023 61" Revolt Deck--Orange (Qty 1)
- 43 2023 MZ Stripe Kit Rubber (Qty 1)
- 44 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 45 MY24 61" Deck Decal (Qty 1)
- 46 3/8 x 1 1/2 Bolt (Qty 12)
- 49 Turnbuckle - QT450 (Qty 2)
- 50 61" High Lift Blade (Qty 3)
- 51 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 52 1/2 Belleville Washer #K2000-G (Qty 3)
-
1#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
2#039-6945-20
Idler Assembly (61" Deck)
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
3#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
4#022-1001-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
5#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
6#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
7#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
8#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
9#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
10#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
11#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
12#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
13#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
16#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 2Regular price $7.69 USDRegular priceUnit price per
-
17#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
18#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
19#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
20#018-7049-00
1/2 -13 x 4.25 gr. 5 hex bolt
Qty Used: 2Regular price $1.74 USDRegular priceUnit price per
-
21#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 3Regular price $5.83 USDRegular priceUnit price per
-
22#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
23#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
24#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
25#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
26#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
27#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
28#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
29#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
30#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
31#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
32#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
33#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
34#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
35#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
36#041-4022-00
42" MZ Magnum/42"CZT Deck Belt
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
37#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
38#091-4052-00
61\" Revolt Deck Belt Route Decal
Qty Used: 1Regular price $5.99 USDRegular priceUnit price per
-
39#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
40#014-4006-00
2023 Revolt Pulley Covers
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-
41#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
42#060-2328-00
2023 61" Revolt Deck--Orange
Qty Used: 1Regular price $999.99 USDRegular priceUnit price per
-
43#084-5005-00
2023 MZ Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
44#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
45#091-0506-00
MY24 61" Deck Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
46#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
49#048-9000-00
Turnbuckle - QT450
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
50#038-6080-00
61" High Lift Fusion Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
51#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
52#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
