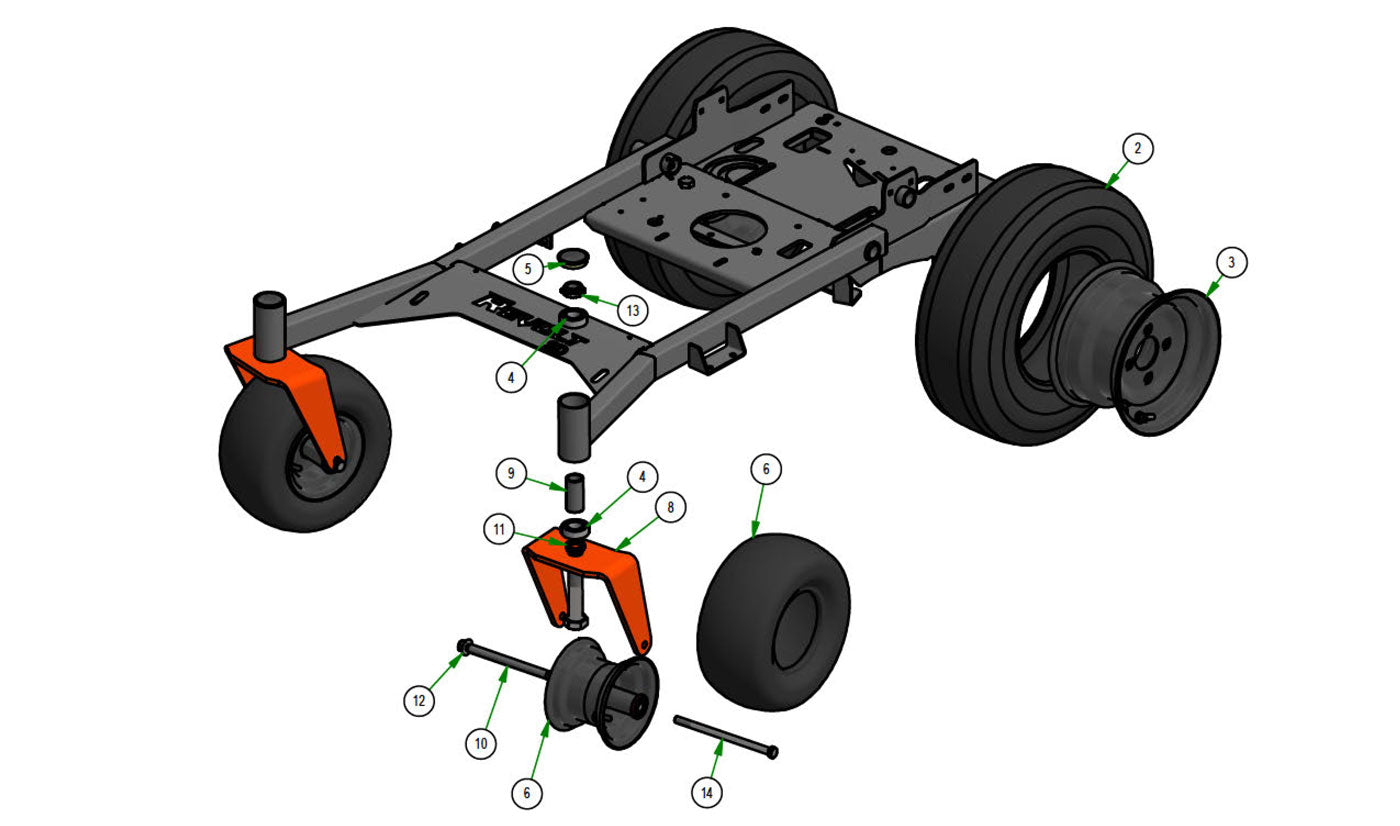

Tires & Front Spindles
Parts Index
- 1 2023 Revolt SD Frame Weldment--Orange (Qty 1)
- 2 21x7-10 Reaper Turf Tire Only (Qty 2)
- 3 10 x 7 Black Wheel (Qty 2)
- 4 Caster Bearing (Qty 4)
- 5 Bearing Retainer Cap (Qty 2)
- 6 13x6.50-6 Caster Front (Qty 2)
- 7 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 4)
- 8 ZT, AVENG Front fork (Qty 2)
- 9 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 10 Front Wheel Spanner-All Models (Qty 2)
- 11 Spacer ( Front Fork and Suspension ) (Qty 2)
- 12 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 13 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 14 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 15 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
-
1#070-5223-00
2023 Revolt SD Frame Weldment--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
2#022-4042-00
21x7-10 Reaper Turf Tire Only
Qty Used: 2Regular price $92.99 USDRegular priceUnit price per
-
3#022-4043-00
10 x 7 Black Wheel
Qty Used: 2Regular price $88.99 USDRegular priceUnit price per
-
4#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
5#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
6#022-2017-00
13x6.50-6 Caster Front
Qty Used: 2Regular price $87.99 USDRegular priceUnit price per
-
7#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 4Regular price $12.49 USDRegular priceUnit price per
-
8#023-0003-00
ZT, AVENG Front fork
Qty Used: 2Regular price $36.49 USDRegular priceUnit price per
-
9#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
10#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
11#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
12#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
13#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
14#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $6.53 USDRegular priceUnit price per
-
15#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
