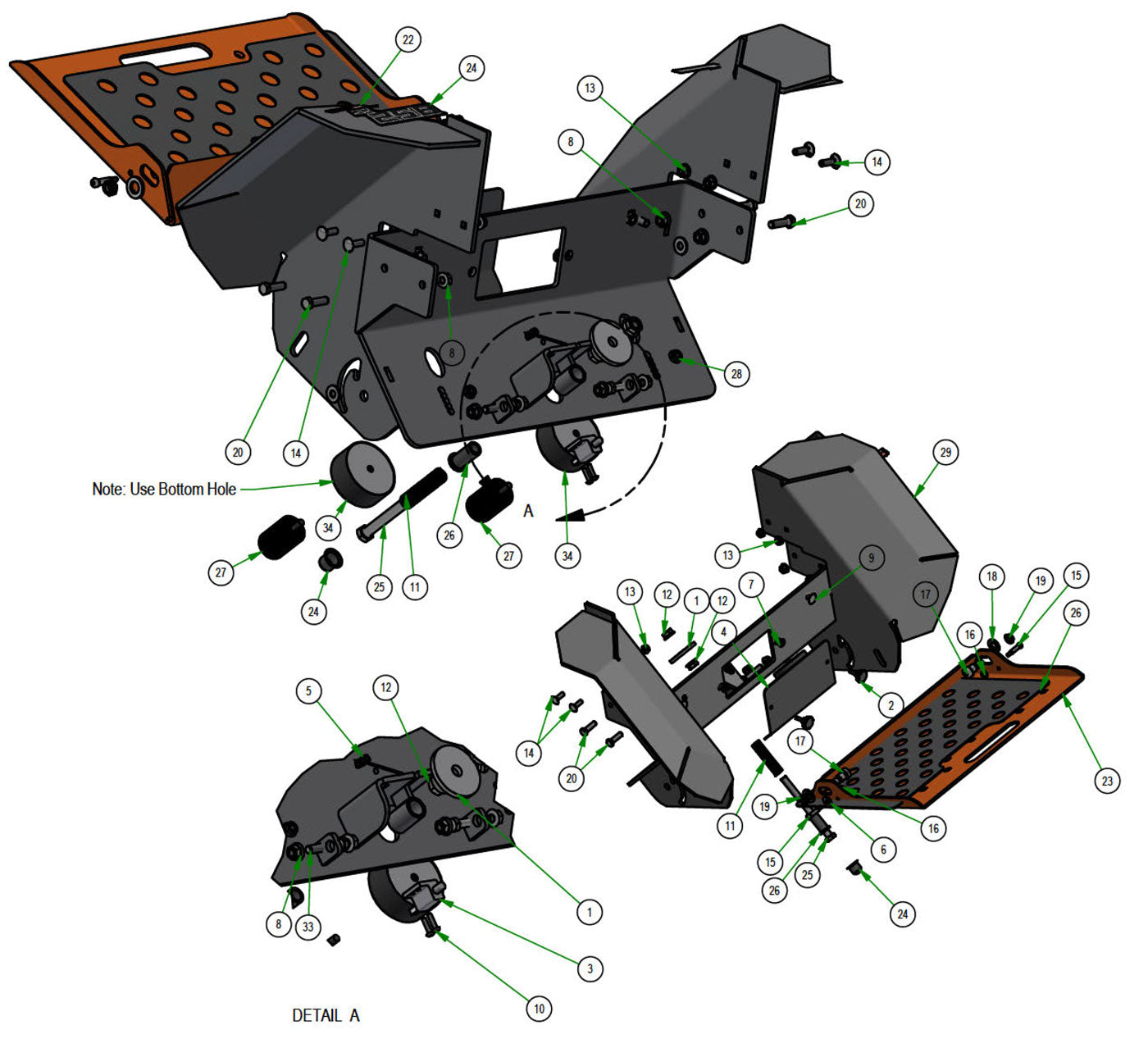

48-61" Fender Assembly

48-61" Fender Assembly

Parts Index

1 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
2 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
3 2017? Walk Behind-Safety Switch (Qty 1)
4 2019 Stand On Access Panel Plate--Black (Qty 1)
5 10-24 Nylon Insert Locknut Zin (Qty 2)
6 5/16 USS Flat Washer Zinc (Qty 4)
7 Wellnut 1/4-20 x 5/8 (Qty 2)
8 3/8 Nylock Flange Nut (Qty 10)
9 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
10 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
11 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
13 5/16-18 Nylon Flange Nut (Qty 4)
14 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
15 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
16 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
17 5/8 x 5/8 Shoulder Bolt (Qty 2)
18 .630 ID X 1.122 OD X .142 THK (Qty 2)
19 1/2-13 Nylon Insert Jam Locknut (Qty 2)
20 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
24 Hex Nut Cap (Qty 1)
25 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
26 Grip Tape for 026-0062-00 (Qty 1)
26.1 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
27 Revolt Platform Dampener Cylinder (Qty 2)
28 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
29 2024 48-61" Stand On Platform Support--Orange (Qty 1)
33 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
34 Revolt Platform Bumper (Qty 2)
