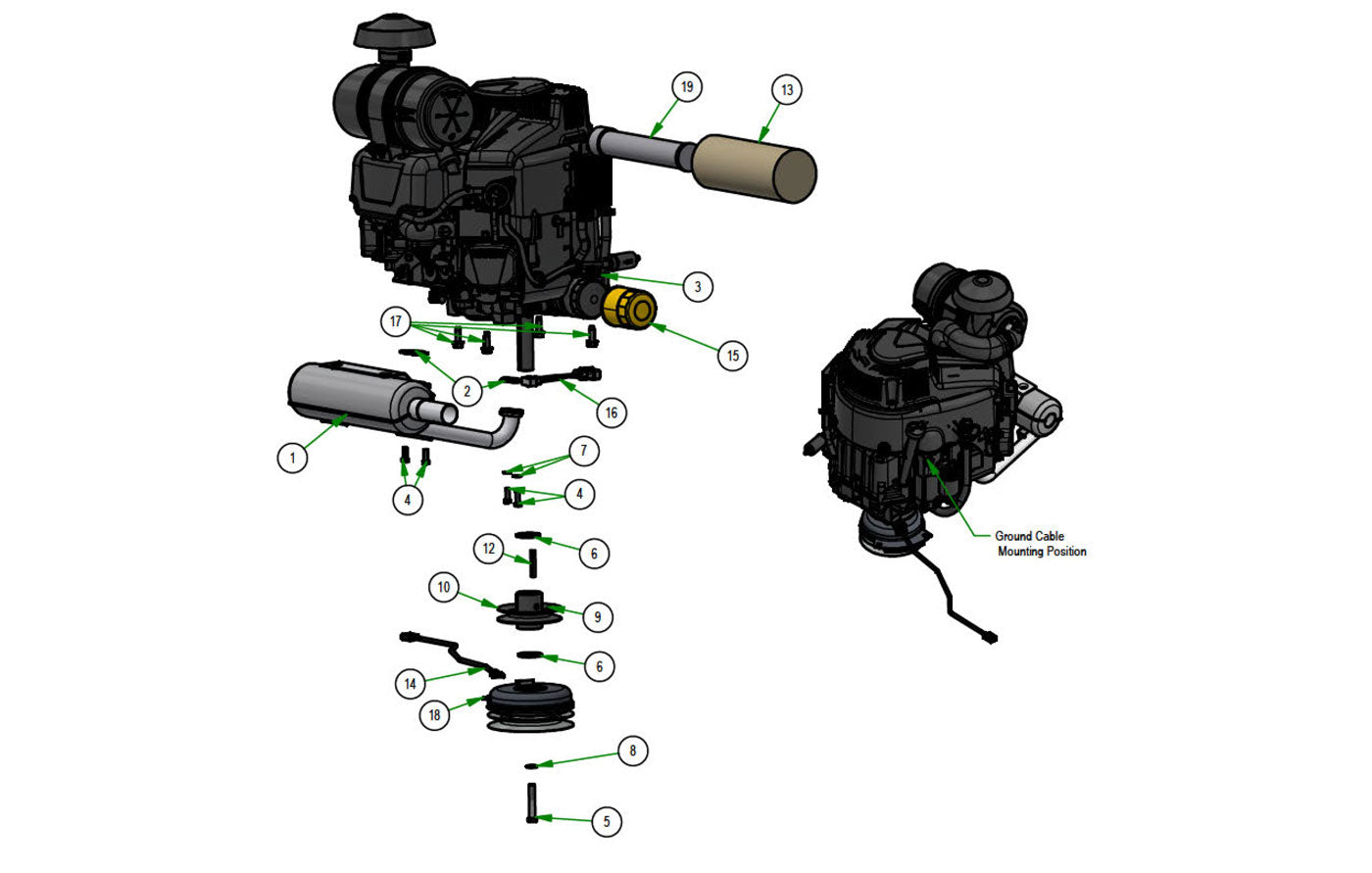

48-61" Engine - Vanguard 28 EFI
Parts Index
- 1 Briggs 28 EFI Exhaust Revolt (Qty 1)
- 2 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 3 Spark Plug-Kohler/Briggs (Qty 2)
- 4 Torx Bolt-Exhaust-23hp Vanguard (Qty 3)
- 5 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 6 1.140x1.750x .132 Flat Washer (Qty 2)
- 7 5/16 Lock washer Zinc (Qty 4)
- 8 7/16 Lock washer zinc (Qty 1)
- 9 5/16-24 x 1/4 Set Screw (Qty 1)
- 10 4 3/4 Motor Pulley (Qty 1)
- 11 5 3/4 Idler Pulley-Don Dye (Qty 1)
- 12 1/4 X 2 Square Key Stock (Qty 1)
- 13 Canister Air Fil Outer2010&Old (Qty 1)
- 14 Clutch Pigtail (Qty 1)
- 15 Briggs Oil Filter (Qty 1)
- 16 2021 28 Briggs EFI Pigtail (Qty 1)
- 17 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 18 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 19 Canister Air Filter - Inner (Qty 1)
-
1#015-1021-00
Briggs 28 EFI Exhaust Revolt
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
2#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
3#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
4#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 3Regular price $5.29 USDRegular priceUnit price per
-
5#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
6#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
7#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#019-8053-00
7/16 Lock washer zinc
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
9#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
10#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
11#033-7201-00
5 3/4 Idler Pulley-Don Dye
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
12#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
13#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
14#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
15#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $24.79 USDRegular priceUnit price per
-
16#086-9015-21
2021 28 Briggs EFI Pigtail
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
17#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
-
19#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
