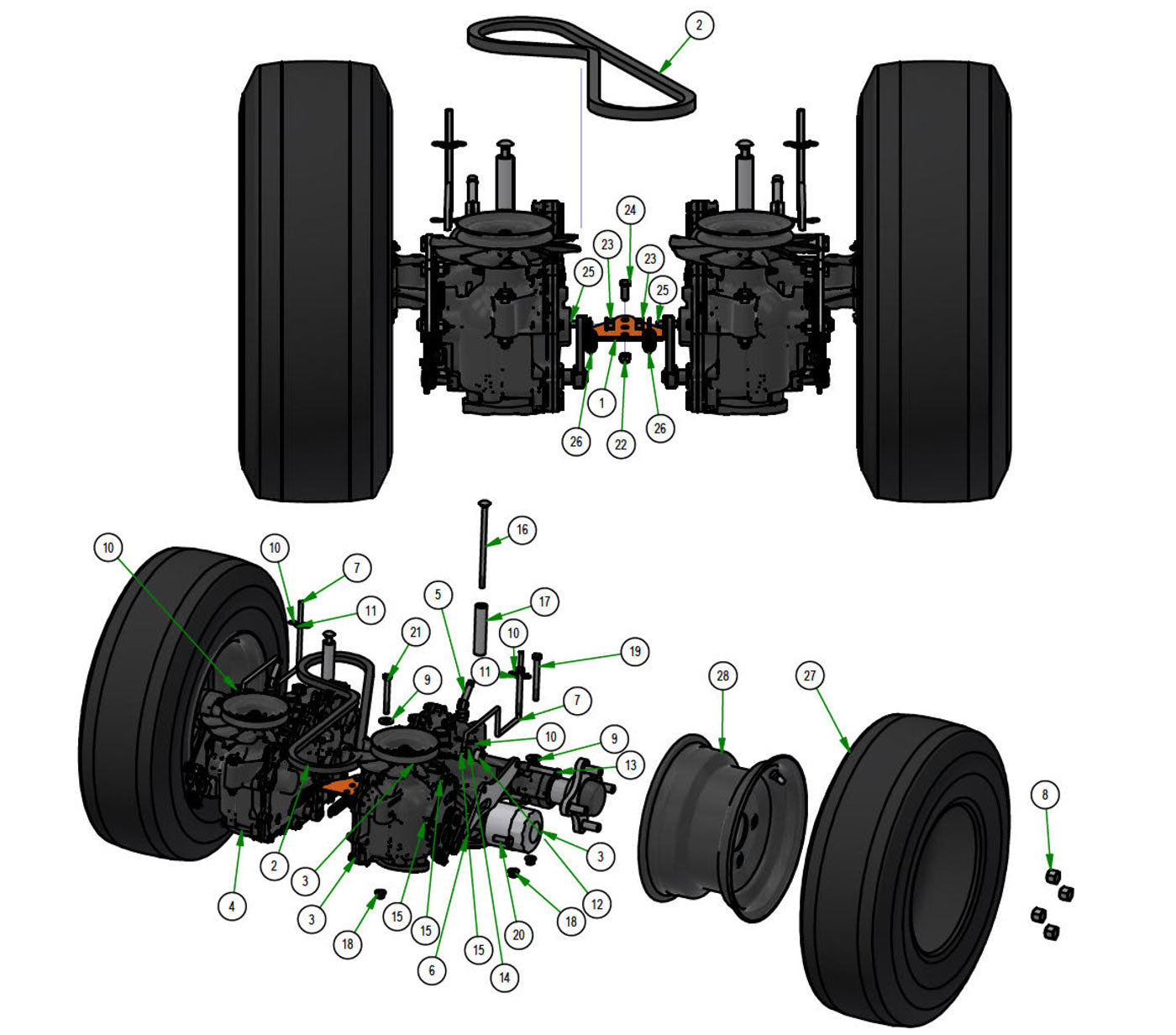

36" Transaxle
Parts Index
- 1 2020 36" Brake Bracket--Orange (Qty 1)
- 2 2019 Renegade / 2020 Revolt - Pump Belt (Qty 1)
- 3 ZT/36 Revolt Transaxle Left 3100 (Qty 1)
- 4 ZT/36 Revolt Transaxle Right 3100 (Qty 1)
- 5 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 6 Control Arm Plate--Plated (Qty 2)
- 7 2019 Stand On Neutral Release Rod (Qty 2)
- 8 Acorn Lug Nut (Qty 8)
- 9 5/16 USS Flat Washer Zinc (Qty 8)
- 10 Bow Pin (Qty 4)
- 11 1/4 USS Flat Washer Zinc (Qty 2)
- 12 ACS Spacer 3/4x3/8x1/2 (Qty 2)
- 13 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 14 3/8 Lockwasher Zinc (Qty 6)
- 15 3/8-16 Hex Nuts Zinc (Qty 6)
- 16 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 17 2017 Transaxle Spacer (Qty 2)
- 18 5/16-18 Nylon Flange Nut (Qty 8)
- 19 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 20 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 21 5/16 x 2 1/2 Bolt (Qty 2)
- 22 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 23 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 24 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 25 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 26 Brake Spring (Qty 2)
- 27 21x7-10 Reaper Turf Tire Only (Qty 2)
- 28 10 x 7 Black Wheel (Qty 2)
-
No sequence found for SKU:
2020 36" Brake Bracket--Orange
Regular price $0.00 USDRegular priceUnit price per
-
2#041-8000-00
2019 Renegade / 2020 Revolt - Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
3#050-2096-01
ZT/36 Revolt Transaxle Left 3100
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
4#050-2095-01
ZT/36 Revolt Transaxle Right 3100
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
5#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
No sequence found for SKU:
Control Arm Plate--Plated
Regular price $0.00 USDRegular priceUnit price per
-
7#028-0071-00
2019 Stand On Neutral Release Rod
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
8#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
9#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
-
11#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#025-2004-00
ACS Spacer 3/4x3/8x1/2
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
13#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
14#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
15#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
16#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
17#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
18#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
19#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
20#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
21#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
24#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
26#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
27#022-4042-00
21x7-10 Reaper Turf Tire Only
Qty Used: 2Regular price $92.99 USDRegular priceUnit price per
-
28#022-4043-00
10 x 7 Black Wheel
Qty Used: 2Regular price $59.99 USDRegular priceUnit price per
