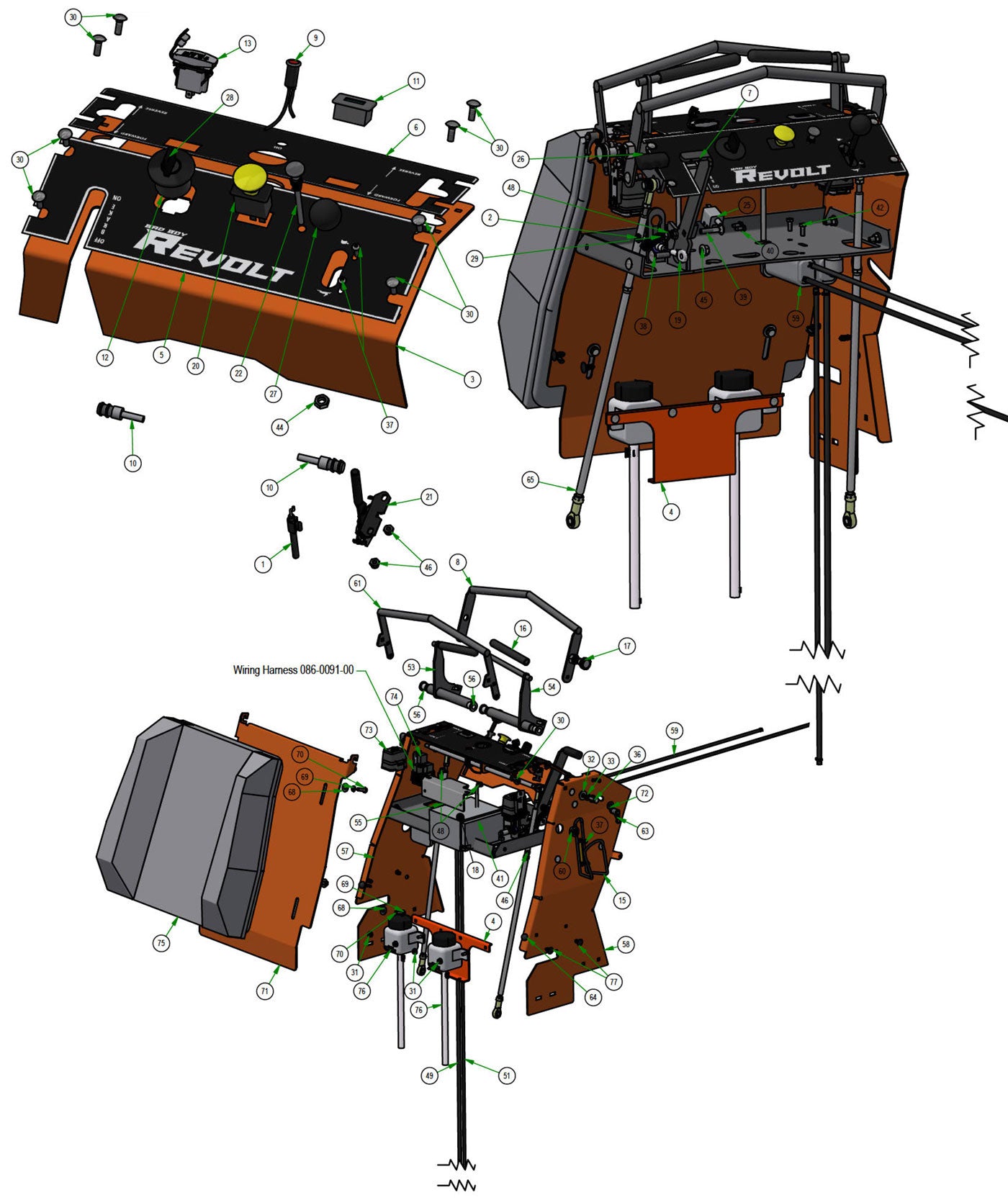

36" Podium
Parts Index
- 1 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 2 5/16-18 Nylock Jam Nut (Qty 5)
- 3 36" Podium Front Panel Weldment--Orange (Qty 1)
- 5 36" Control Panel (lower) (Qty 1)
- 6 36" Control Panel (upper) (Qty 1)
- 7 2019 Stand On Brake Handle--Black (Qty 1)
- 8 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 9 Oil Light (Qty 1)
- 10 Safety Switch Harness (Qty 2)
- 11 Tachometer-N310-0100-1018 (Qty 1)
- 12 Ignition Switch (Qty 1)
- 13 USB Port (Qty 1)
- 14 Magnet-Steering Arm-Stand ON (Qty 2)
- 15 2019 Stand-On Cup Holder (Qty 1)
- 16 2019 Revolt Cushioned hand Grip (Qty 2)
- 17 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 18 Revolt Battery (Qty 1)
- 19 Brake Cable Walk Behind/Revolt (Qty 1)
- 20 PTO Engager-Switch for Blades (Qty 1)
- 21 Universal Throttle Head - 2012 (Qty 1)
- 22 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 23 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 24 8-32 Hex M/S Nut (Qty 2)
- 25 Safety Switch (Qty 1)
- 26 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 27 Throttle / Brake Head Ball (Qty 1)
- 28 Ignition Key (Qty 1)
- 29 Brake Spring (Qty 1)
- 30 1/4 x 3/4 Carriage Bolt (Qty 14)
- 31 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 32 3/8 USS Flat Washer Zinc (Qty 2)
- 33 3/8 Lockwasher Zinc (Qty 2)
- 34 .390 ID Plastic Washer (Qty 1)
- 35 .390x.750x.062 Nylon Washer (Qty 2)
- 36 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 37 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 38 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 39 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 40 12-24 x 1/2 HWH Bolt (Qty 2)
- 41 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 43 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 44 3/8-24 Hex Nut Zinc (Qty 1)
- 45 3/8 Nylock Flange Nut (Qty 1)
- 46 10-24 Nylon Insert Locknut Zin (Qty 4)
- 47 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 48 5/16-18 Nylon Flange Nut (Qty 13)
- 49 1/4 Vinyl 46" EPA Line (Qty 1)
- 50 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 51 3/16 Vinyl 55" EPA Line (Qty 1)
- 52 3/16" Vinyl Hose Clamp (Qty 2)
- 53 36" LH Drive Arm Actuator Weldment--Black (Qty 1)
- 54 36" RH Drive Arm Actuator Weldment--Black (Qty 1)
- 55 2023 Revolt and SD Battery Hold Down--Orange (Qty 1)
- 56 2023 Revolt Drive Arm Bushings (Qty 4)
- 57 2023 Podium Panel Left--Orange (Qty 1)
- 58 2023 Podium Panel Right--Orange (Qty 1)
- 59 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 61 36-SD Control Arm Stop Weldment--Black (Qty 1)
- 63 2023 Revolt Platform adjustable handles (Qty 2)
- 64 2023 Floor Board Rubber Bumpers (Qty 2)
- 65 2019 Stand On Push Rod Assembly (Qty 2)
- 66 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 67 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 68 5/16 USS Flat Washer Zinc (Qty 4)
- 69 5/16 Lock washer Zinc (Qty 4)
- 70 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 71 2023 36-SD Pad Plate--Orange (Qty 1)
- 72 .360 ID Plastic Washer (Qty 2)
- 73 2019 Relay Cap Kit (Qty 2)
- 74 2019 Relay Terminal (Qty 8)
- 75 2025 3-Piece 36" Revolt Pad (Qty 1)
- 76 2017 ZT Hydro Tank Assembly (Qty 2)
- 77 Ratchet Fastener - Floorboard (Qty 4)
-
1#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
2#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 5Regular price $2.69 USDRegular priceUnit price per
-
3#079-4113-00
36" Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
5#091-4057-00
36" Control Panel (lower)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
6#091-4056-00
36" Control Panel (upper)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
7#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
8#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
10#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
11#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
12#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
14#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
15#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
16#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
17#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
18#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
19#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
20#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
21#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
22#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
23#031-0094-00
2020 36" Stand On Drive Pivot Bar
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
24#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
25#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
26#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
27#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
28#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
29#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
30#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
31#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
32#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
33#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
35#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
36#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
37#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
38#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
39#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
40#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
41#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
43#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
44#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
45#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
46#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
47#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
48#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
49#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
50#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
51#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
52#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
53#031-0048-00
36" LH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
54#031-0049-00
36" RH Drive Arm Actuator Weldment--Black
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
55#026-0264-00
2023 Revolt and SD Battery Hold Down--Orange
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
56#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
57#026-0280-00
2023 Podium Panel Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
58#026-0270-00
2023 Podium Panel Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
59#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
61#031-0061-00
36-SD Control Arm Stop Weldment--Black
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
63#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
64#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
65#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
66#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
67#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
68#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
69#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
70#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
71#026-0293-00
2023 36-SD Pad Plate--Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
72#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
73#086-1202-01
2019 Relay Cap Kit
Qty Used: 2Regular price $17.24 USDRegular priceUnit price per
-
74#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
75#071-6006-25
2025 3-Piece 36" Revolt Pad
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
