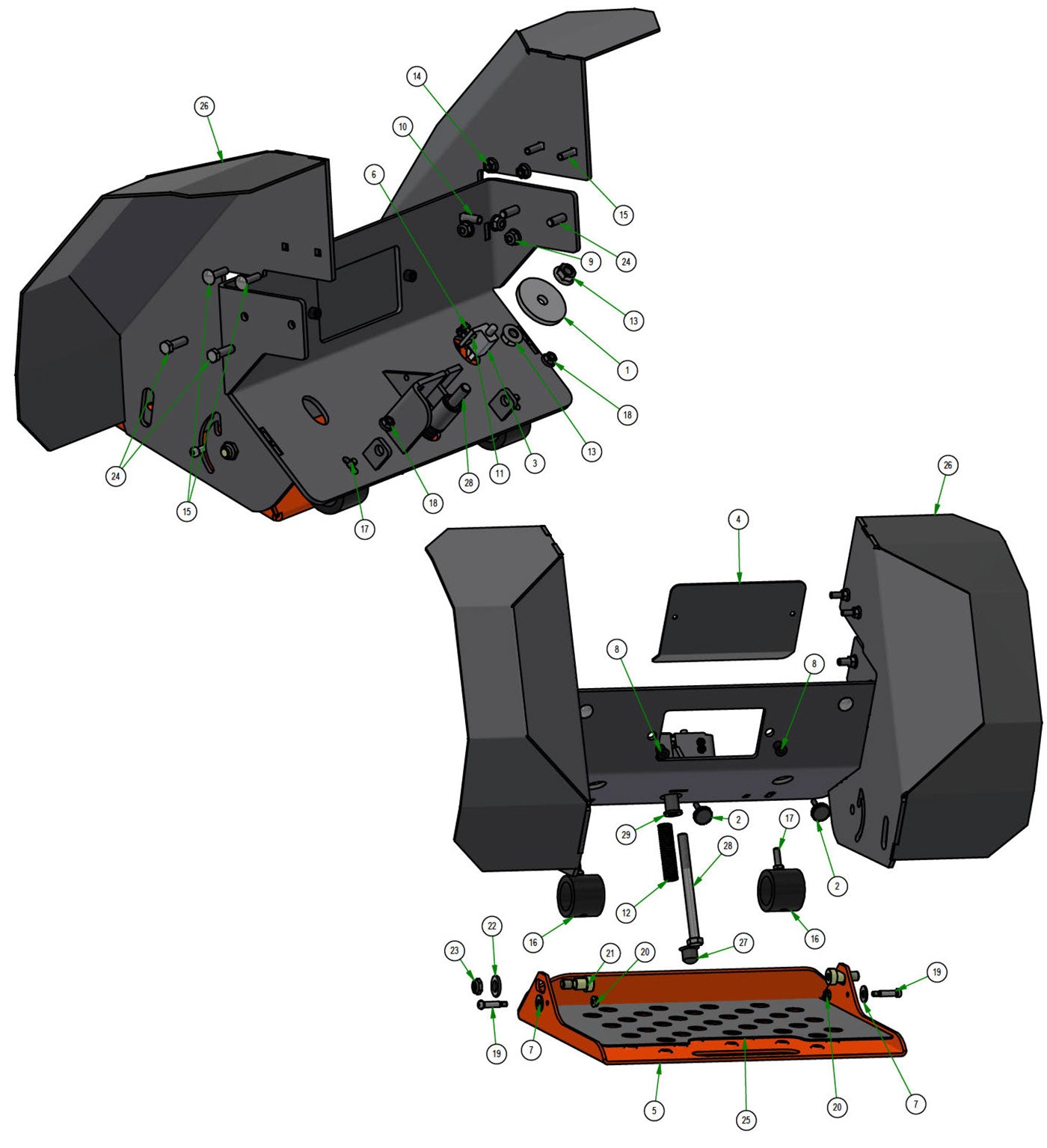

36" Fenders

36" Fenders

Parts Index

1 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
2 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
3 2017? Walk Behind-Safety Switch (Qty 1)
4 2019 Stand On Access Panel Plate--Black (Qty 1)
5 2020 36" Platform Plate--Orange (Qty 1)
6 10-24 Nylon Insert Locknut Zin (Qty 2)
7 5/16 USS Flat Washer Zinc (Qty 2)
8 Wellnut 1/4-20 x 5/8 (Qty 2)
9 3/8 Nylock Flange Nut (Qty 6)
10 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
11 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
12 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
13 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
14 5/16-18 Nylon Flange Nut (Qty 4)
15 5/16-18 X 1-1/4 Carriage Bolt (Qty 4)
16 2019 Revolt Platform Dampener (Qty 2)
17 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
18 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
19 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
21 5/8 x 5/8 Shoulder Bolt (Qty 2)
22 .630 ID X 1.122 OD X .142 THK (Qty 2)
23 1/2-13 Nylon Insert Jam Locknut (Qty 2)
24 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
25 Grip Tape for 026-0158-00 (Qty 1)
27 Hex Nut Cap (Qty 1)
28 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
29 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
