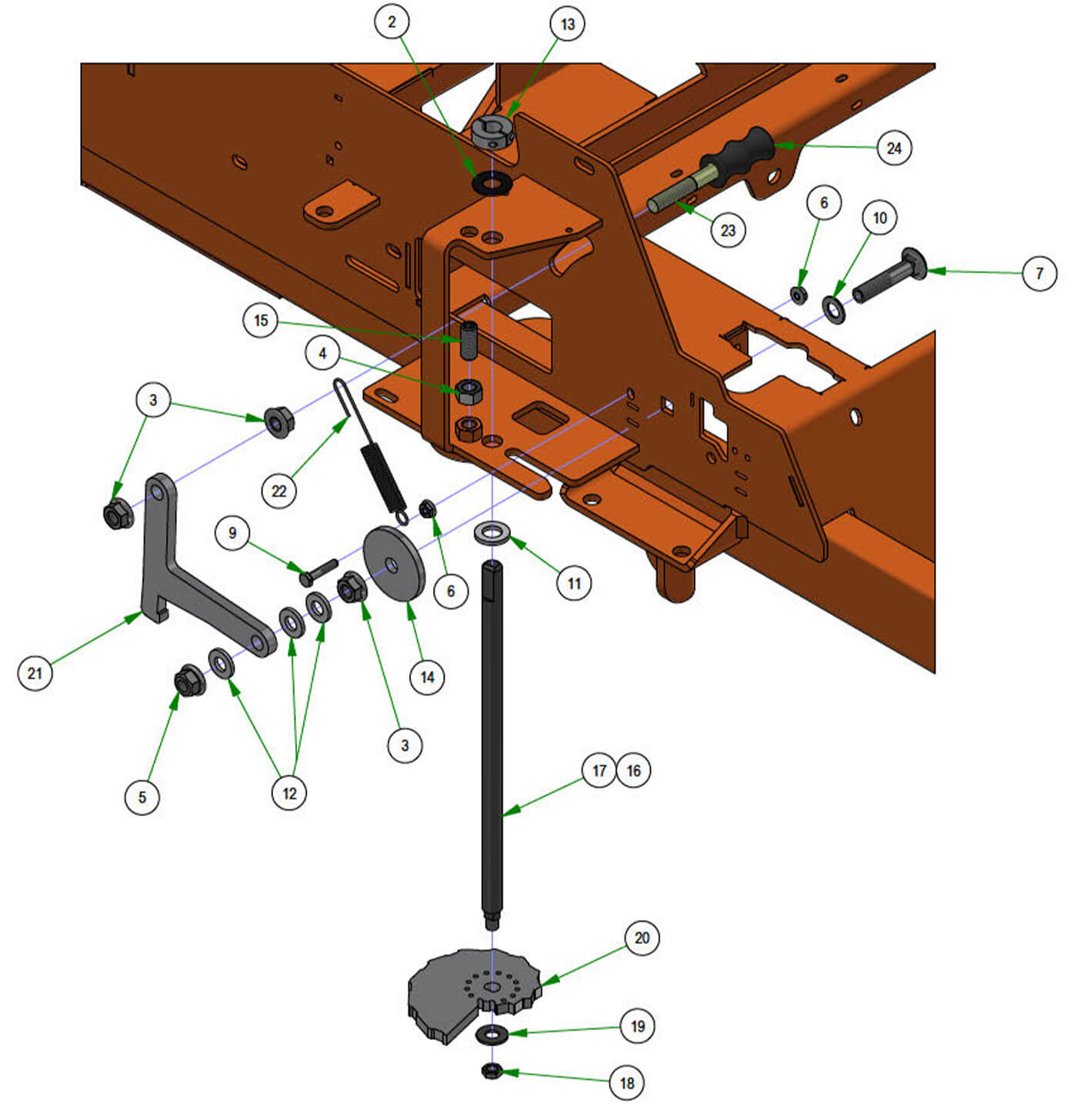

Deck Height Cam & Lock
Parts Index
- 1 2019 Horizontal Gas Frame--Orange (Qty 1)
- 2 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 3 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 4 1/2-13 Hex Nuts Zinc (Qty 1)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 6 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 7 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 8 10mm Ball Stud (Long Thread) (Qty 1)
- 9 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 10 .517 Square Hole Round Washer (Qty 1)
- 11 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 12 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 13 Split Collar (Qty 1)
- 14 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 15 Deck Height Cam Plunger (Qty 1)
- 16 R-Series Deck Height Dial Rod Assy (Qty 1)
- 17 2019 "R" Series Dial Rod (Qty 1)
- 18 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 19 3/8 USS Flat Washer Zinc (Qty 1)
- 20 Deck Height Cam Plate (Qty 1)
- 21 Deck Travel Lock Lever--Plated (Qty 1)
- 22 Brake Spring (Qty 1)
- 23 Seat Bracket Pin - 2008 Models (Qty 1)
- 24 Grip (Travel Lock) (Qty 1)
-
1#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
2#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
6#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
8#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
9#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
10#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
11#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
13#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
14#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
15#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
16#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
17#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
18#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
19#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
20#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
21#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
22#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
23#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
24#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
