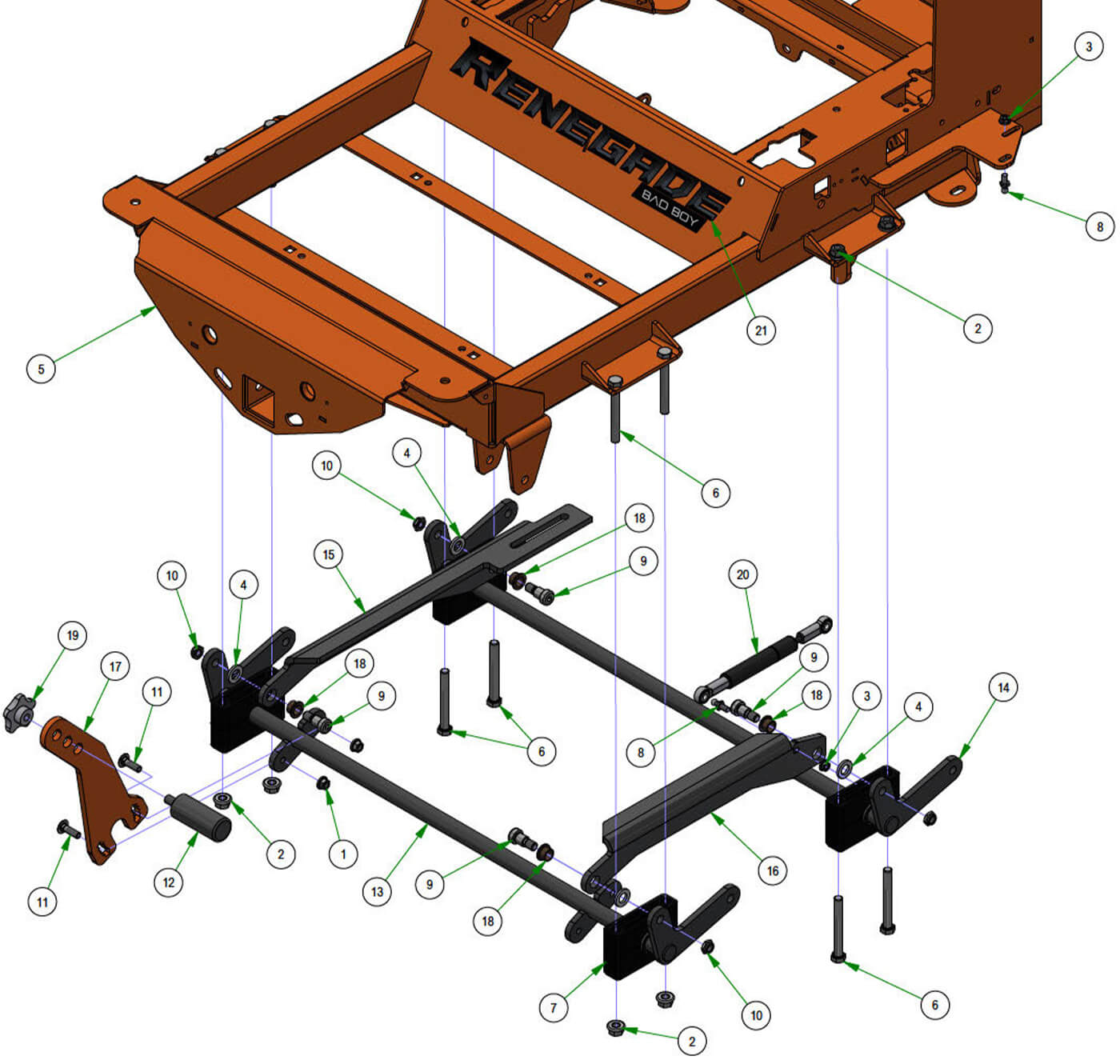

Deck Height Actuators
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 8)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 4 .630 ID X 1.122 OD X .142 THK (Qty 4)
- 5 2022 Horizontal Diesel Frame--Orange (Qty 1)
- 6 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 7 2015 Outlaw Pillow Block (Qty 4)
- 8 10mm Ball Stud (Long Thread) (Qty 2)
- 9 2019 Diesel Stub Shaft Double V (Qty 4)
- 10 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 11 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 12 Knurled Foot Pedal (Qty 1)
- 13 Actuator Bar (Front) (Qty 1)
- 14 Actuator Bar (Rear) (Qty 1)
- 15 2019 Actuator Linkage-Right-Black (Qty 1)
- 16 2019 Actuator Linkage-Left-Black (Qty 1)
- 17 Foot Lift Upright Lever--Orange (Qty 1)
- 18 Bronze Bushing - SF-2024-8 (Qty 4)
- 19 Star Knob 1/2-13 (Qty 1)
- 20 Dampener (250lbs) (Qty 1)
- 21 MY24 Renegade Front Decal (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#070-5376-22
2022 Horizontal Diesel Frame--Orange
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
6#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
7#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $35.99 USDRegular priceUnit price per
-
8#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
9#017-3001-00
2019 Diesel Stub Shaft Double V
Qty Used: 4Regular price $150.99 USDRegular priceUnit price per
-
10#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
11#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
12#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
13#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
14#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
15#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
16#028-6076-22
2019 Actuator Linkage-Left-Black
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
17#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
18#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
19#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
20#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
21#091-0518-00
MY24 Renegade Front Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
