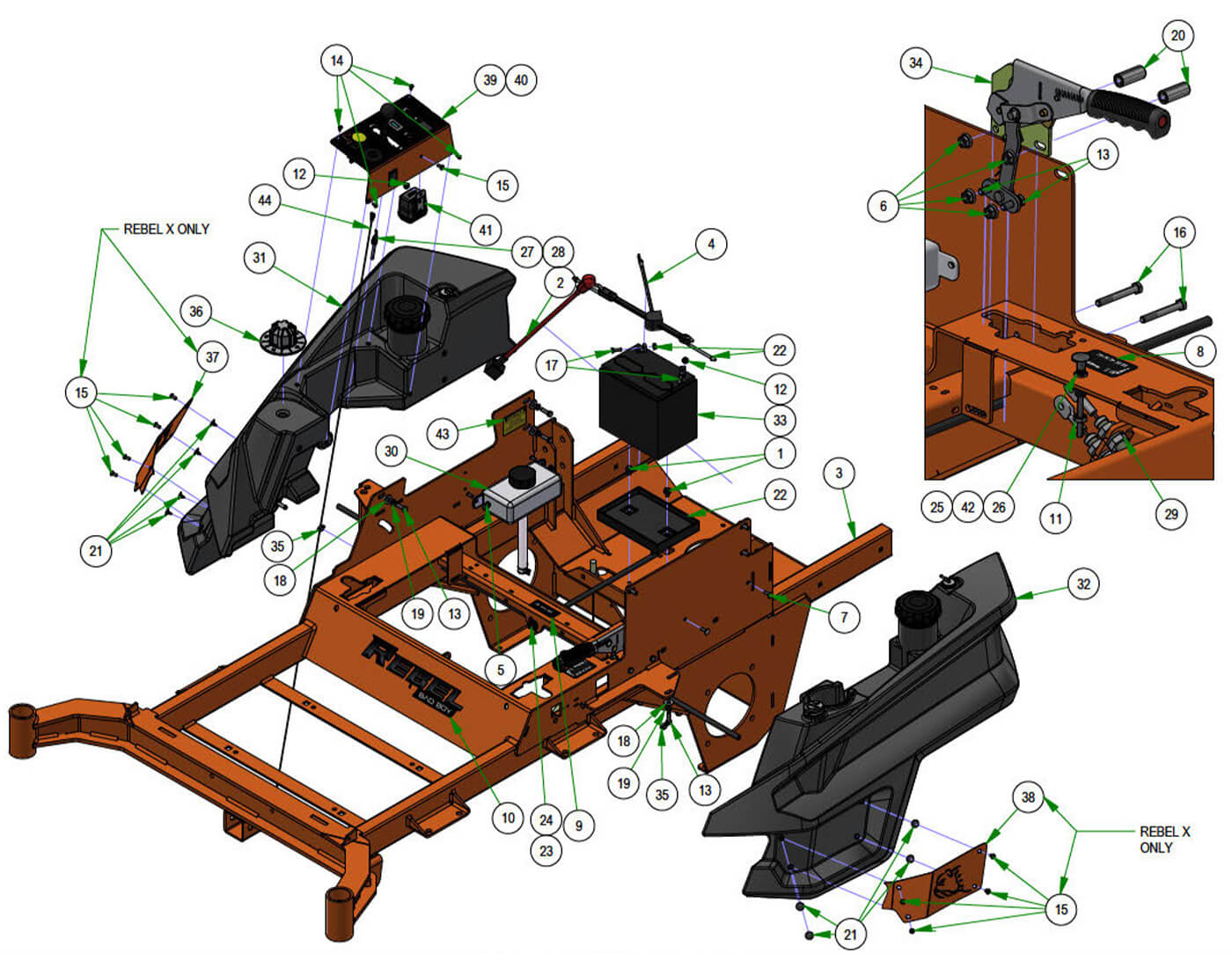

Tanks & Battery

Tanks & Battery

Parts Index

1 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
2 14" Red Battery Cable- Rebel, Raider (Qty 1)
3 2023 Rebel Frame--Orange (Qty 1)
4 Rebel, Rogue Ground Wire (Qty 1)
5 1/4-20 Nylon Insert Flange Nut (Qty 4)
6 5/16-18 Nylon Flange Nut (Qty 4)
7 1/4 x 3/4 Carriage Bolt (Qty 4)
8 R-Series Brake Decal (Qty 1)
9 R-Series Shut Off Valve Decal (Qty 1)
10 MY24 Rebel Back Plate & Front Decal (Qty 1)
11 3/8-24 Hex Nut Zinc (Qty 1)
12 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
13 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
14 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
15 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 9)
16 5/16 x 2 1/2 Bolt (Qty 2)
17 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
18 5/16 USS Flat Washer Zinc (Qty 8)
19 5/16 Lock washer Zinc (Qty 8)
20 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
21 3/16 x .48 Christmas Tree Nylon Black (Qty 8)
22 2023 Battery Hold Down Assembly (Qty 1)
25 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
26 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
27 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
28 2019 Throttle Cable (Qty 1)
29 Long Brake Cable (Qty 2)
30 2019 Rebel Hydro Tank Assembly (Qty 2)
31 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
32 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
33 Battery - All models except Renegade and Revolt (Qty 1)
34 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
35 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
36 Deck Height Dial (1.5 - 5.5) (Qty 1)
37 Fuel Tank Insert--RH--Orange (Qty 1)
38 Fuel Tank Insert--LH--Orange (Qty 1)
39 Rebel/Rogue Control Panel Assy (Qty 1)
40 2023 Rebel/Rogue FX1000EFI,EVO CONTROL PANEL ASY. (Qty 1)
41 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
42 MIL Light (Qty 2)
43 Yellow Hydraulic Decal (Qty 2)
