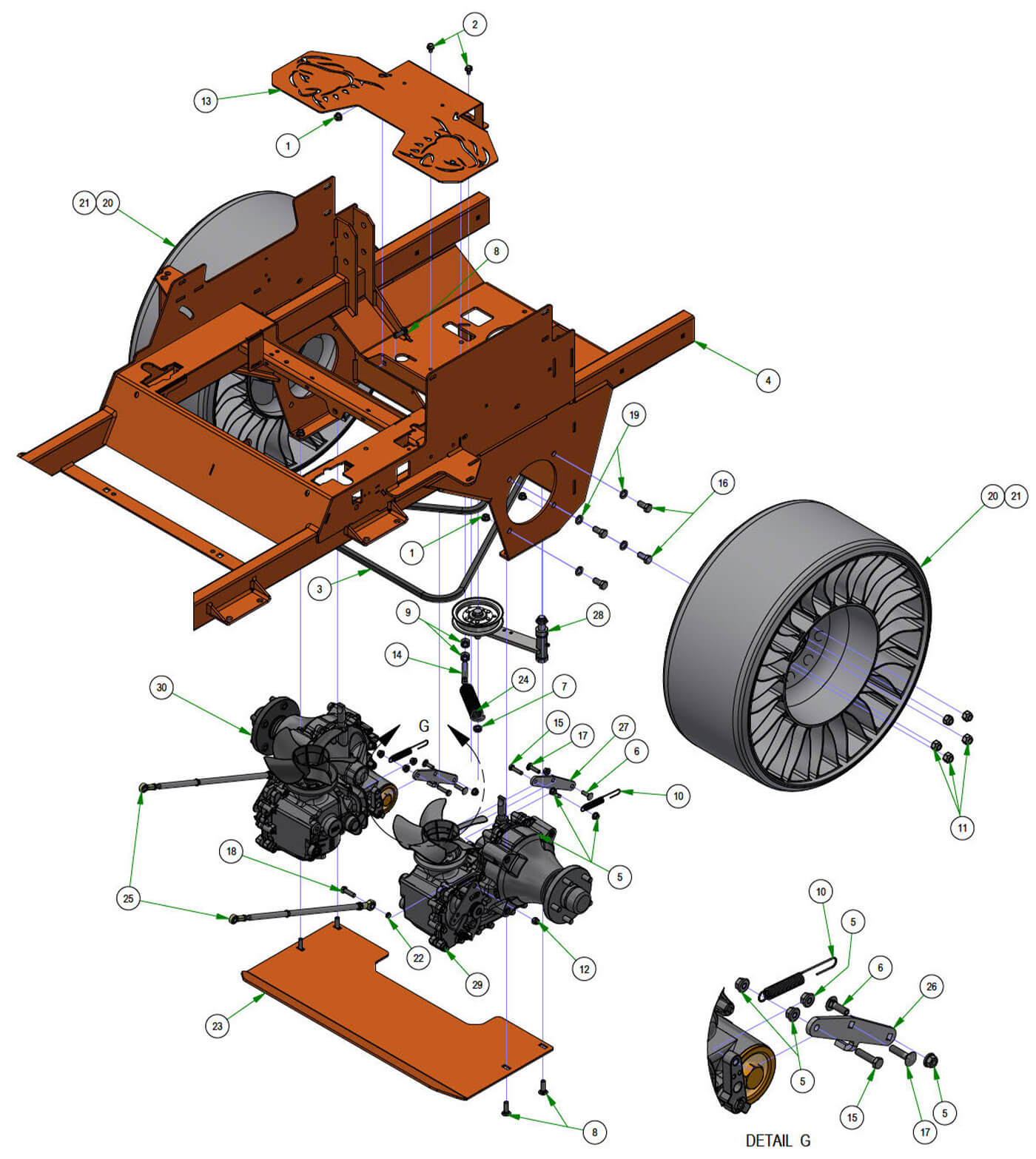

Rebel X Transaxle

Rebel X Transaxle

Parts Index

1 3/8 Nylock Flange Nut (Qty 6)
2 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
3 2019 & up Rebel Pump Belt (Qty 1)
4 2023 Rebel Frame--Orange (Qty 1)
5 5/16-18 Nylon Flange Nut (Qty 8)
6 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
7 1/2-13 Nylon Insert Jam Locknut (Qty 1)
8 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
9 1/2-13 Hex Nuts Zinc (Qty 2)
10 Brake Spring (Qty 2)
11 Acorn Lug Nut (Qty 10)
12 3/8-16 Nylon Insert Locknut Zi (Qty 2)
14 All Thread (Qty 1)
15 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
16 1/2 x 1 Bolt (Qty 8)
17 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
18 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
19 1/2 Lockwasher Zinc (Qty 8)
20 Michelin 24 x 12N12 X Tweel Turf 5x4.5 Bolt (Qty 2)
21 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 2)
22 Drive Arm Transaxle Spacer (Qty 2)
23 Rigid Skid Plate--Orange (Qty 1)
24 2019 Deck Spring - Big Diameter (Qty 1)
25 2024 Rebel Push Rod ASSY (Qty 2)
28 Idler Bracket (Qty 1)
29 5400 Transaxle - Left - Rebel X (Qty 1)
30 5400 Transaxle-Right- Rebel X (Qty 1)
