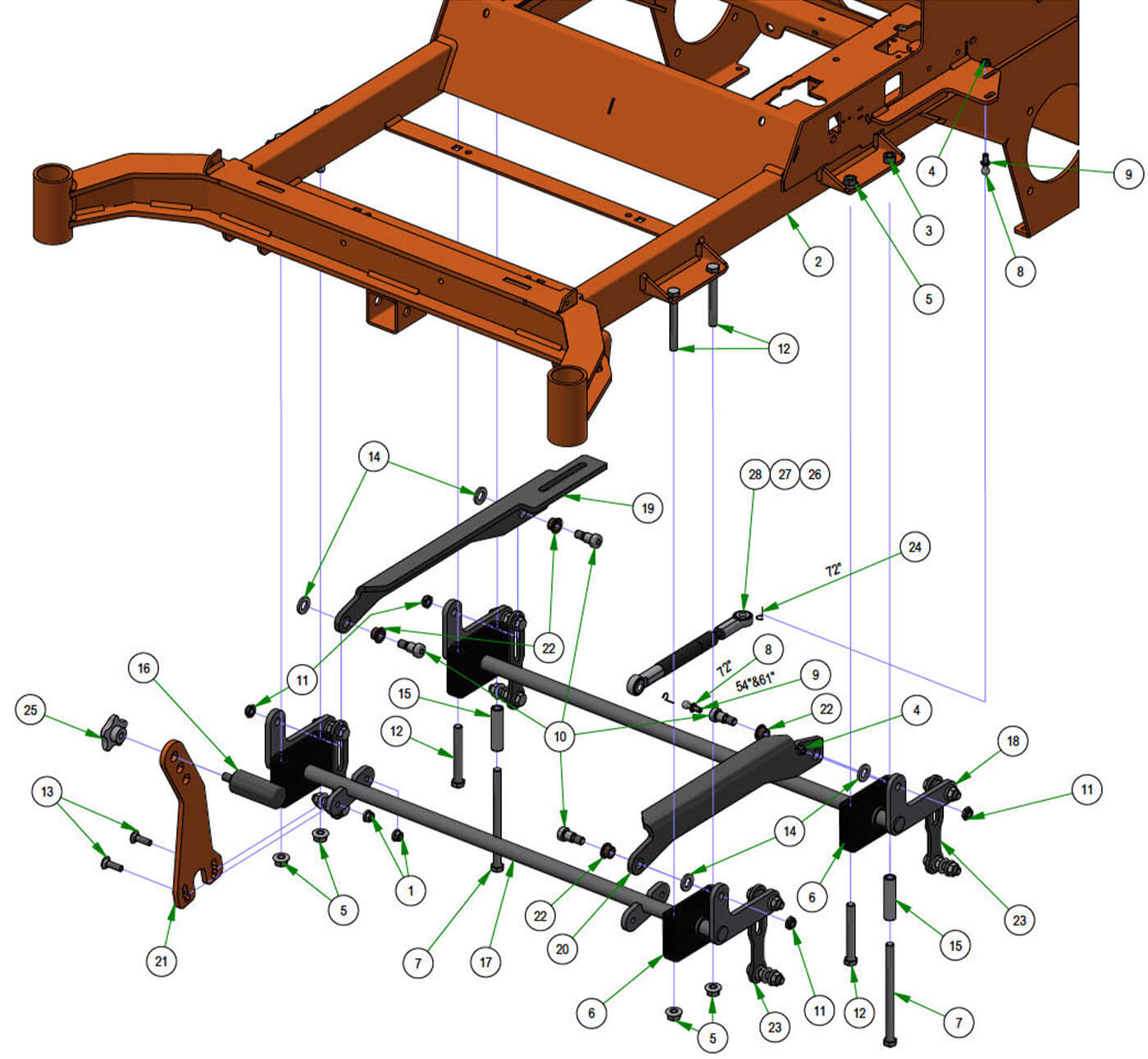

Deck Height
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 2023 Rebel Frame--Orange (Qty 1)
- 3 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 6)
- 6 2015 Outlaw Pillow Block (Qty 4)
- 7 1/2-13 X 7 Hex Bolt - Grade 5 (Qty 2)
- 8 13mm Ball Stud (Qty 2)
- 9 10mm Ball Stud (Long Thread) (Qty 2)
- 10 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 11 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 12 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 6)
- 13 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 14 .630 ID X 1.122 OD X .142 THK (Qty 4)
- 15 2019 Deck Stop Spacer (Qty 2)
- 16 Knurled Foot Pedal (Qty 1)
- 17 Actuator Bar (Front) (Qty 1)
- 18 Actuator Bar (Rear) (Qty 1)
- 19 2019 Actuator Linkage-Right-Black (Qty 1)
- 20 2019 Actuator Linkage-Left-Black (Qty 1)
- 21 Foot Lift Upright Lever--Orange (Qty 1)
- 22 Bronze Bushing - SF-2024-8 (Qty 4)
- 23 Outlaw/Extreme/XP Deck Hanger Assy (Qty 4)
- 24 Security Ring - PC744 For 72" Deck Dampener (Qty 2)
- 25 Star Knob 1/2-13 (Qty 1)
- 26 Dampener (200lbs) (Qty 1)
- 27 Dampener (250lbs) (Qty 1)
- 28 Dampener (300lbs) (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
3#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
6#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $35.99 USDRegular priceUnit price per
-
7#018-0004-00
1/2-13 X 7 Hex Bolt - Grade 5
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
8#018-2049-00
13mm Ball Stud
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
9#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
10#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
11#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
12#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 6Regular price $3.99 USDRegular priceUnit price per
-
13#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
14#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#025-0033-00
2019 Deck Stop Spacer
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
16#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
17#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
18#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
19#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
20#028-6076-22
2019 Actuator Linkage-Left-Black
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
21#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
22#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
23#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
24#044-6050-00
Security Ring - PC744
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
25#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
26#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
27#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
28#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
