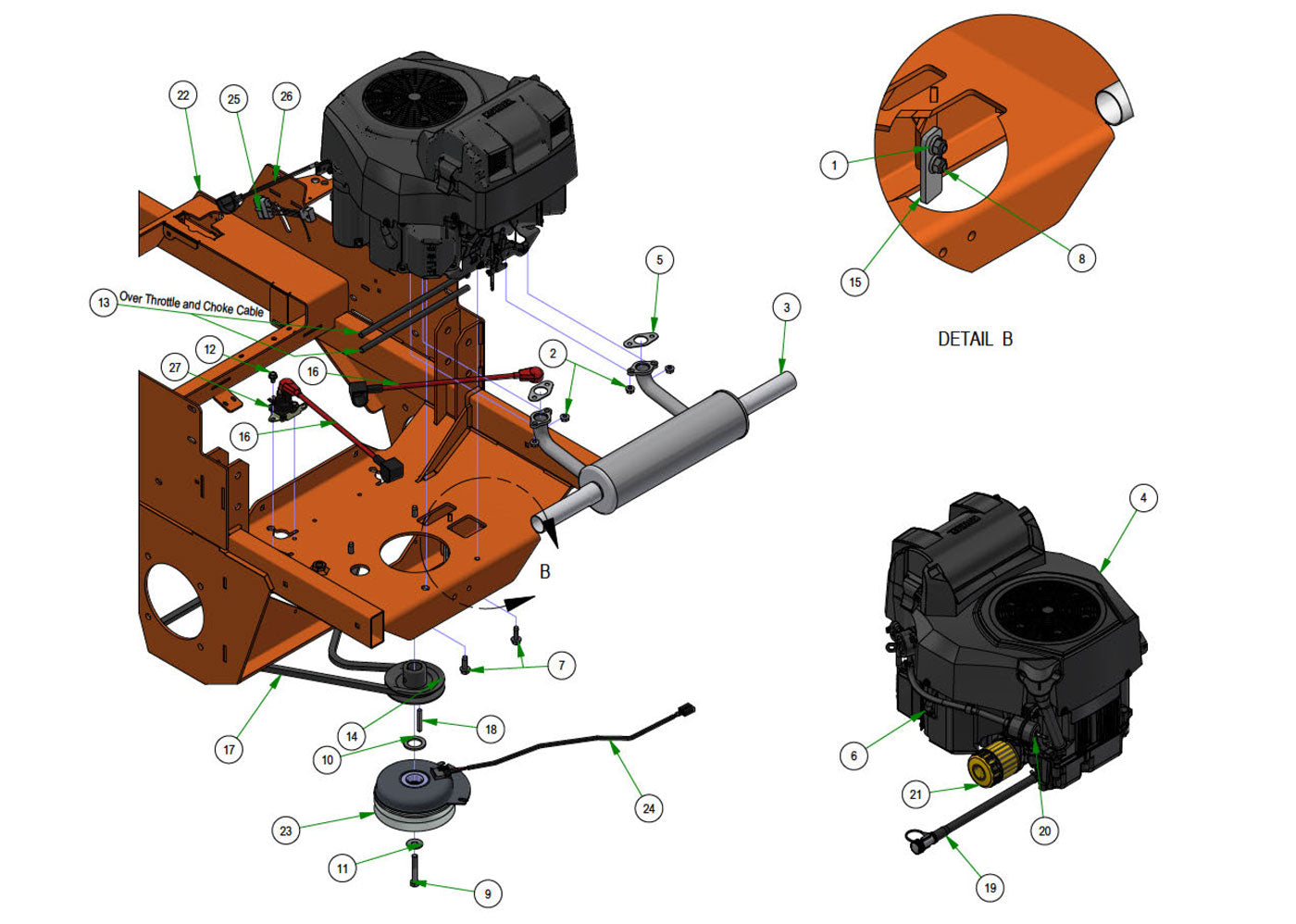

Engine - Kohler
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 3 2019 Rebel Kohler CV752 Muffler (Qty 1)
- 4 25hp Kohler-2014 CZT, Oulaw (Qty 1)
- 5 Exhaust Gaskets for 27,30 hp (Qty 2)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 8 3/8 x 1 Carriage Bolt (Qty 2)
- 9 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 10 1.140x1.750x .132 Flat Washer (Qty 1)
- 11 7/16 USS Flat Washer Zinc (Qty 1)
- 12 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 13 Cut 12" Heat Sleeve (Qty 2)
- 14 4 3/4 Motor Pulley (Qty 1)
- 15 Rebel Clutch Stop Tab (Qty 1)
- 16 14" Red Battery Cable- Rebel, Raider (Qty 2)
- 17 2019 & up Rebel Pump Belt (Qty 1)
- 18 1/4 X 2 Square Key Stock (Qty 1)
- 19 Kohler Oil Drain Hose (Qty 1)
- 20 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 21 Oil Filter - 27 & 30 Kohler (Qty 1)
- 22 2023 Rebel Frame--Orange (Qty 1)
- 23 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 24 Clutch Pigtail (Qty 1)
- 26 Rebel, Rogue Ground Wire (Qty 1)
- 27 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
3#015-1013-00
2019 Rebel Kohler CV752 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
4#015-2030-00
25hp Kohler-2014 CZT, Oulaw
Qty Used: 1Regular price $2,799.00 USDRegular priceUnit price per
-
5#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
6#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
7#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
8#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
10#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
11#019-8052-00
7/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.55 USDRegular priceUnit price per
-
12#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
13#032-6000-00
Cut 12\" Heat Sleeve
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
15#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
16#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 2Regular price $12.09 USDRegular priceUnit price per
-
17#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
18#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
19#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
20#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
21#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
22#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
-
24#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
26#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
27#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
