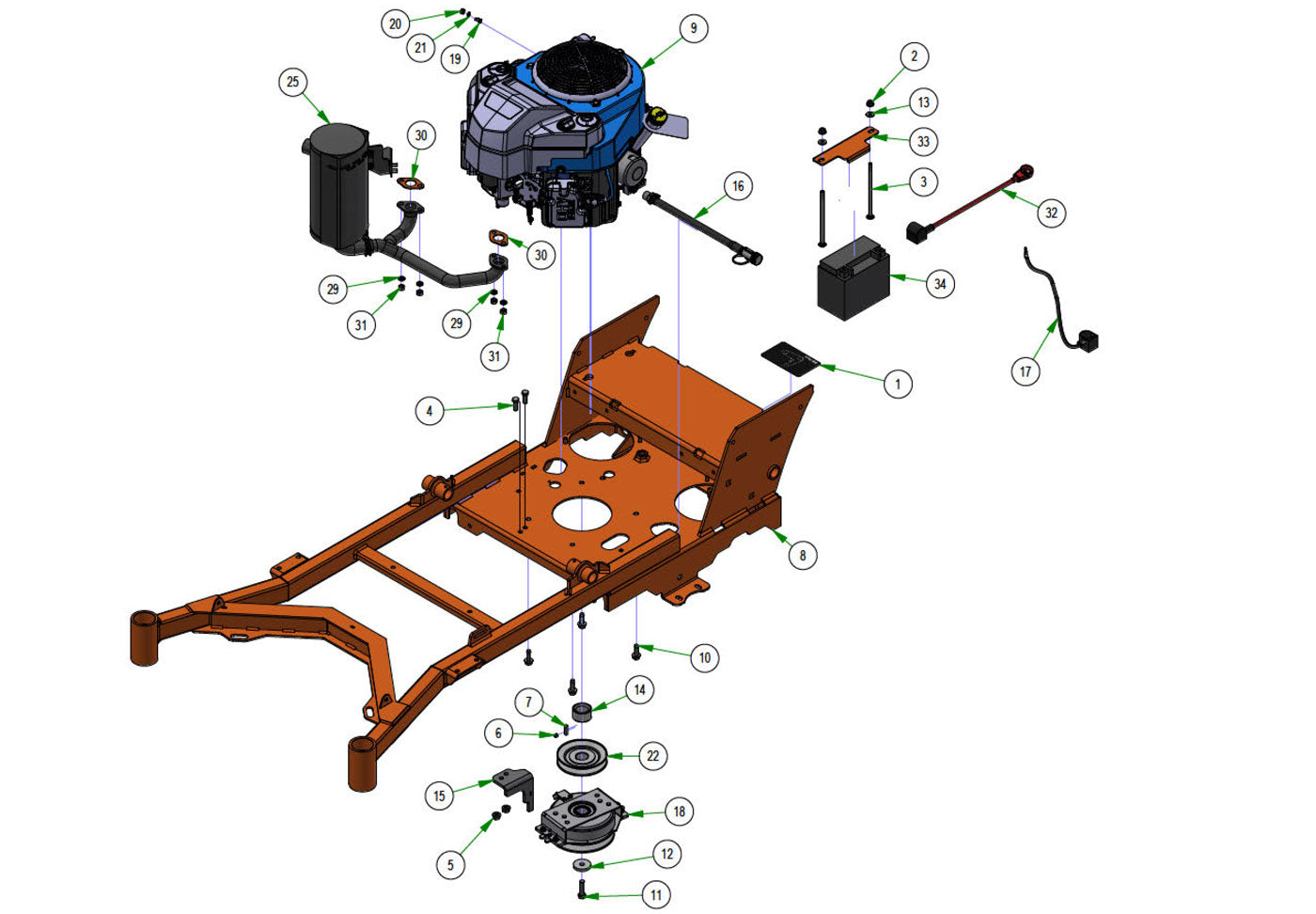

Engine
Parts Index
- 1 2017 Walk Behind 36" Deck Belt Route (Qty 1)
- 2 5/16-18 Nylon Flange Nut (Qty 2)
- 3 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 4 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 5 3/8 Nylock Flange Nut (Qty 2)
- 6 5/16-24 x 1/4 Set Screw (Qty 1)
- 7 1/4 x 1 Square Key (Qty 1)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 12 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 13 1/4 USS Flat Washer Zinc (Qty 2)
- 14 1.130 ID X 1.75 OD X 1 Length (Qty 1)
- 16 Kawasaki Oil Drain (Qty 1)
- 17 24 inch Black Cable - MZ/ZT (Qty 1)
- 18 Clutch For 1-1/8" Shaft (Qty 1)
- 21 1/4 Lockwasher Zinc (Qty 1)
- 22 4 3/4 Motor Pulley - DB74-601 (Qty 1)
- 23 Exhaust Pipe for 2018 Kawasaki Walk Behind (Qty 1)
- 24 Exhaust Bracket for 2018 Kawasaki Walk Behind (Qty 1)
- 25 Exhaust Only for 2018 Kawasaki Walk Behind (Qty 1)
- 26 Exhaust Band for 2018 Kawasaki Walk Behind (Qty 1)
- 27 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 2)
- 28 Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind (Qty 4)
- 29 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 30 Exhaust Gasket for 2018 Kawasaki Walk Behind (Qty 2)
- 31 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 32 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 33 Battery Hold Down Plate-Raider--Orange (Qty 1)
- 34 Revolt Battery (Qty 1)
-
1#091-0418-00
2017 Walk Behind 36" Deck Belt Route
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
5#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
6#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
7#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $0.87 USDRegular priceUnit price per
-
12#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
13#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#025-5032-00
1.130 ID X 1.75 OD X 1 Length
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
16#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
17#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
21#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
22#033-5034-00
4 3/4 Motor Pulley - DB74-601
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
23#015-0543-02
Exhaust Pipe for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
24#015-0543-03
Exhaust Bracket for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
25#015-0543-01
Exhaust Only for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
26#015-0543-08
Exhaust Band for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
27#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
28#015-0543-04
Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
29#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
30#015-0543-07
Exhaust Gasket for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
31#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
32#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
33#026-0098-00
Battery Hold Down Plate-Revolt--Orange
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
34#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
