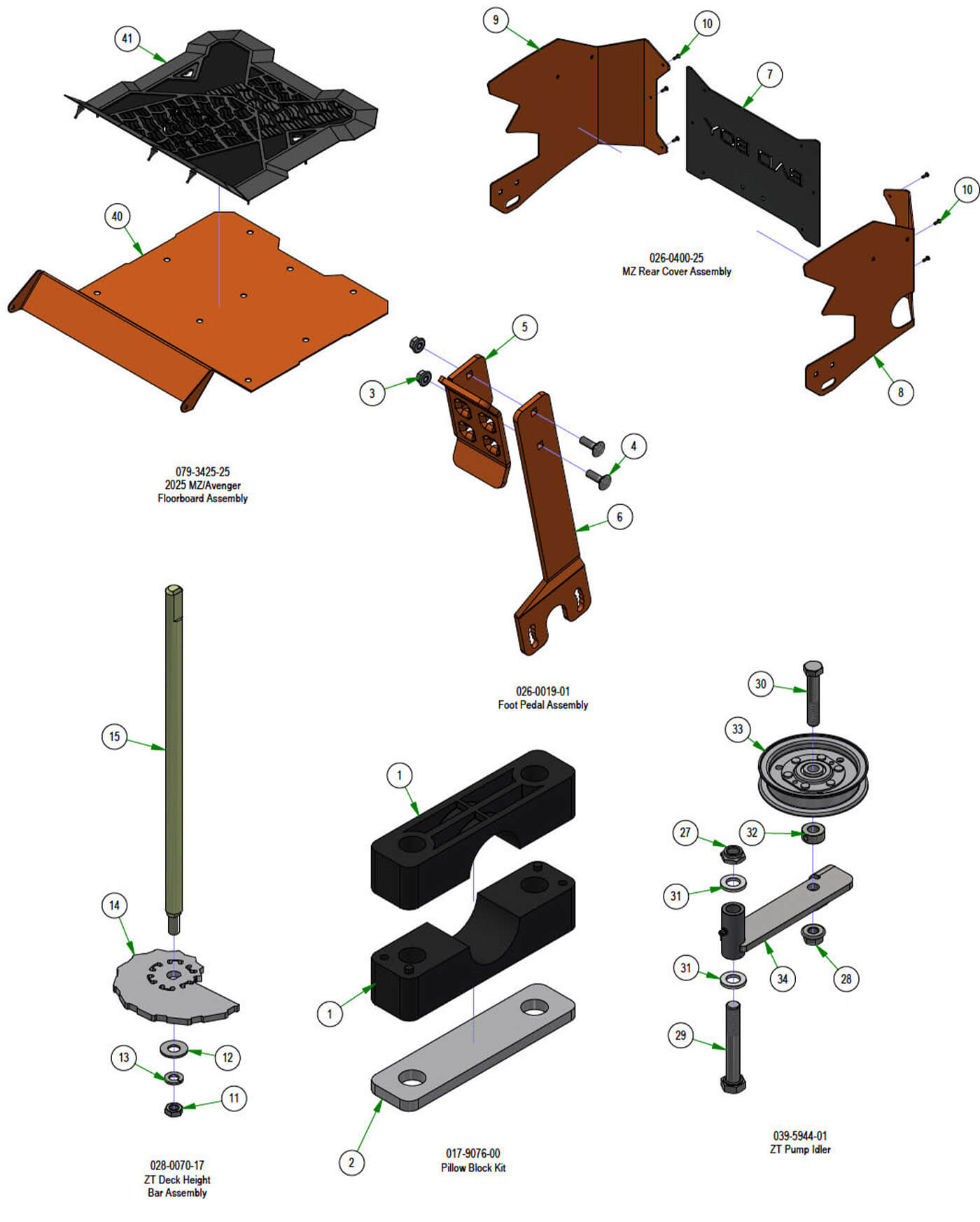

Frame Subassemblies
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 7 2025 Rambler/Magnum Rear Cover Center--Black (Qty 1)
- 8 2025 Rambler/Magnum Rear Cover LH--Orange (Qty 1)
- 10 Steel Rivets (Qty 6)
- 11 3/8-24 Hex Nut Zinc (Qty 1)
- 12 3/8 USS Flat Washer Zinc (Qty 1)
- 13 3/8 Lockwasher Zinc (Qty 1)
- 14 Deck Height Cam Plate (Qty 1)
- 15 2017 Deck Height Dial Rod ZT (Qty 1)
- 27 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 28 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 29 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 30 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 31 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 32 1/2 Set Collar w/set collar (Qty 1)
- 33 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 34 Idler Bracket (Qty 1)
- 40 2025 MZ Avenger Floorboard-Orange (Qty 1)
- 41 2025 Maverick HD & Down Floor Mat "Saftey" (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
7#026-0408-00
2025 Rambler/Magnum Rear Cover Center--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
8#026-0410-00
2025 Rambler/Magnum Rear Cover LH--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#032-0004-00
Steel Rivets
Qty Used: 6Regular price $0.75 USDRegular priceUnit price per
-
11#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
15#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
27#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
28#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
29#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
30#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
31#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
32#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
33#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
34#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
40#079-3425-00
2025 MZ Avenger Floorboard-Orange
Qty Used: 1Regular price $24.68 USDRegular priceUnit price per
-
41#081-4002-00
2025 Maverick HD & Down Floor Mat "Saftey"
Qty Used: 1Regular price $24.84 USDRegular priceUnit price per
