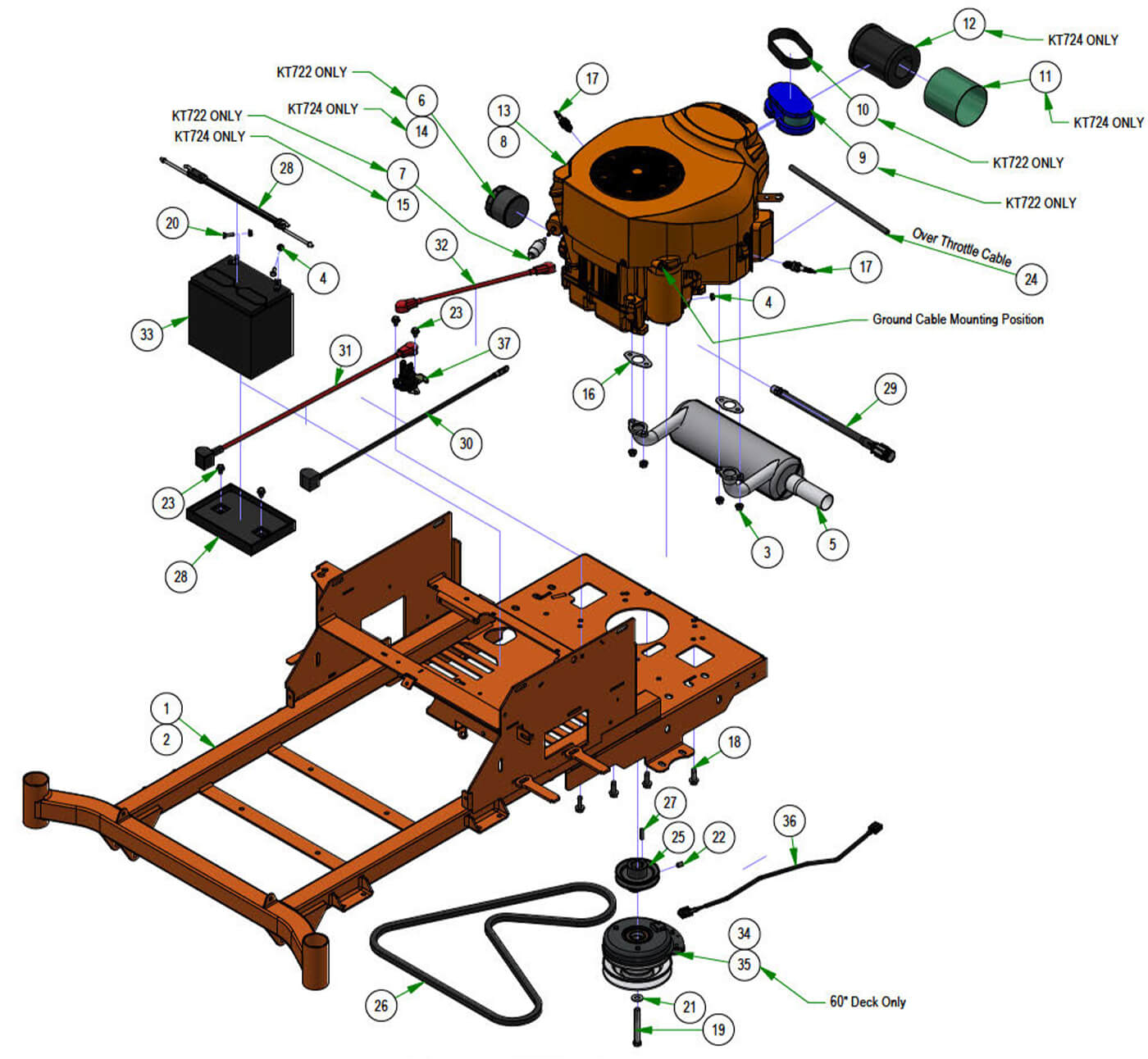

Engine - Kohler
Parts Index
- 1 2025 MZ 42-48 Frame--Orange (Qty 1)
- 2 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 3 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 4 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 5 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 6 Oil Filter for 015-0077-00/015-9990-00/015-9991-00 (Qty 1)
- 7 Fuel Filter (Qty 1)
- 8 Kohler KT722 Engine (Qty 1)
- 9 Air Filter for 015-2023-00 (Qty 1)
- 10 Pre-Cleaner for 015-2023-00 (Qty 1)
- 11 Air Pre-Cleaner for 015-2026-00 (Qty 1)
- 12 Air Filter Element for 015-2026-00 (Qty 1)
- 13 24hp Kohler KT724 (Qty 1)
- 14 Oil Filter for 015-2031-00 (KT724/KT726) (Qty 1)
- 15 Fuel Filter for 015-2031-00 (KT724/KT726) (Qty 1)
- 16 Exhaust Gaskets for 27,30 hp (Qty 2)
- 17 Spark Plug-Kohler/Briggs (Qty 2)
- 18 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 19 7/16-20x3.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 20 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 21 3/8 USS Flat Washer Zinc (Qty 1)
- 22 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 23 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 24 Cut 12" Heat Sleeve (Qty 1)
- 25 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 26 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 27 1/4 x 1 Square Key (Qty 1)
- 28 2023 Battery Hold Down Assembly (Qty 1)
- 29 Kohler Oil Drain Hose (Qty 1)
- 30 24 inch Black Cable - MZ/ZT (Qty 1)
- 31 24 Red Battery Cable (Qty 1)
- 32 14" Red Battery Cable (Qty 1)
- 33 Battery - All models except Renegade and Revolt (Qty 1)
- 34 105 Ft Lb. Clutch- 1” Shaft (Qty 1)
- 35 120 Ft Lb. Clutch- 1” Shaft (Qty 1)
- 36 Clutch Pigtail (Qty 1)
- 37 Solenoid (752-1251-210HP) (Qty 1)
-
1#070-2500-00
2025 MZ 42-48 Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
2#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
3#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
4#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
5#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
6#015-0077-04
Oil Filter for 015-0077-00/015-9990-00/015-9991-00
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
7#015-0077-07
Fuel Filter
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
8#015-2023-00
Kohler KT722 Engine
Qty Used: 1Regular price $1,999.99 USDRegular priceUnit price per
-
9#015-2023-01
Air Filter for 015-2023-00
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
10#015-2023-02
Pre-Cleaner for 015-2023-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
11#015-2026-02
Air Pre-Cleaner for 015-2026-00
Qty Used: 1Regular price $13.54 USDRegular priceUnit price per
-
12#015-2026-03
Air Filter Element for 015-2026-00
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
13#015-2031-00
24hp Kohler KT724
Qty Used: 1Regular price $1,599.99 USDRegular priceUnit price per
-
14#015-2031-01
Oil Filter for 015-2031-00 (KT724/KT726)
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15#015-2031-02
Fuel Filter for 015-2031-00 (KT724/KT726)
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
16#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
17#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
18#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
19#018-5052-21
7/16-20x3.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
20#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
21#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
22#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
23#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
24#032-6000-00
Cut 12\" Heat Sleeve
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
25#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
26#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
27#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
28#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
29#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
30#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
31#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
32#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
33#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
34#070-0057-00
105 Ft Lb. Clutch- 1” Shaft
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
35#070-0058-00
120 Ft Lb. Clutch- 1” Shaft
Qty Used: 1Regular price $154.99 USDRegular priceUnit price per
-
36#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
37#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
