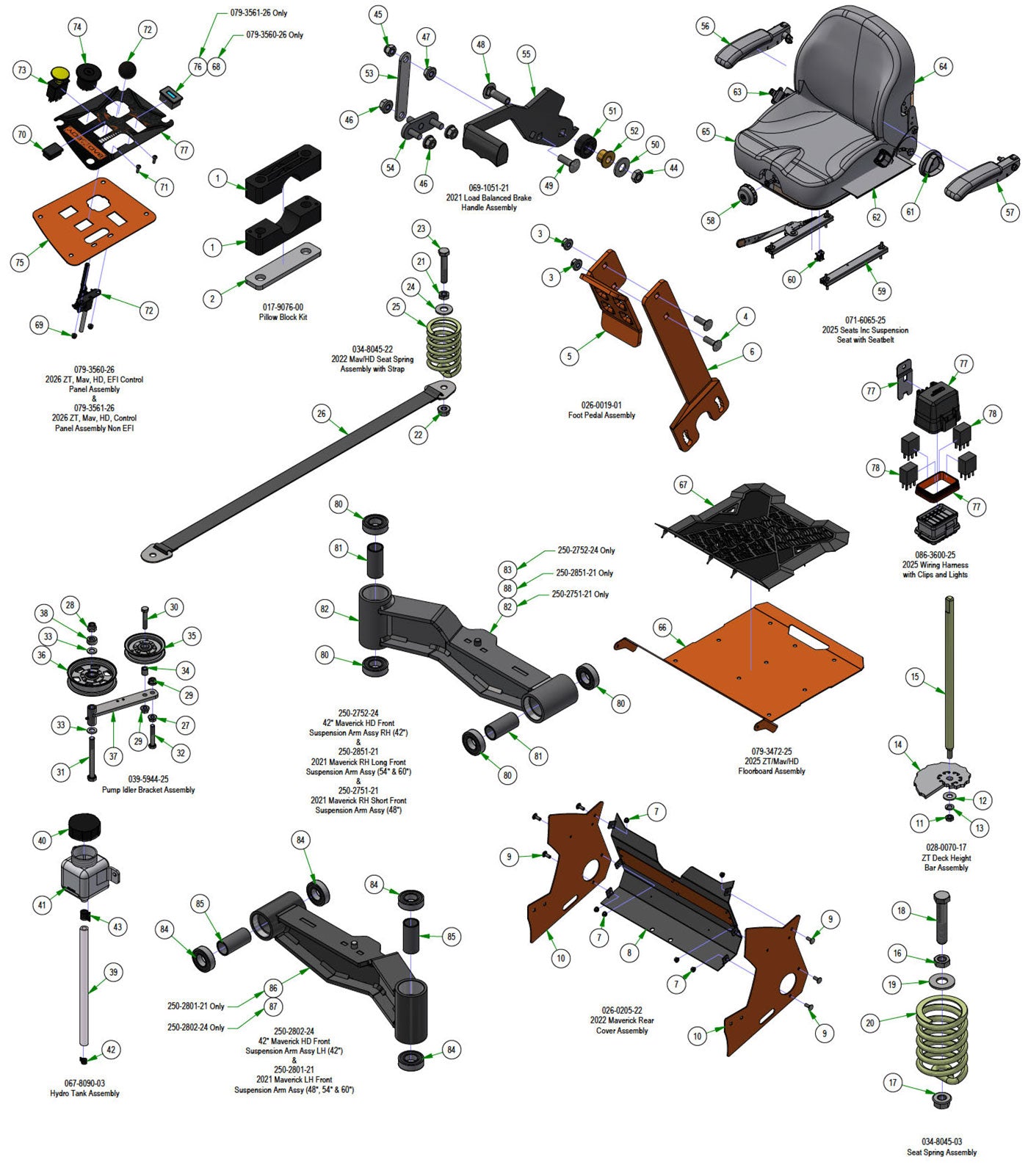

Frame Subassemblies

Frame Subassemblies

Parts Index

1 2017 Magnum Pillow Block-Male (Qty 8)
2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
3 5/16-18 Nylon Flange Nut (Qty 2)
4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
5 Foot Pedal--Orange (Qty 1)
6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
7 5/16-18 Nylon Flange Nut (Qty 6)
8 2021 Maverick Rear Cover Assembly (Qty 1)
9 3/8 x 1 Carriage Bolt (Qty 6)
10 Rear Cover Side Plate--Orange (Qty 2)
11 3/8-24 Hex Nut Zinc (Qty 1)
12 3/8 USS Flat Washer Zinc (Qty 1)
13 3/8 Lockwasher Zinc (Qty 1)
14 Deck Height Cam Plate (Qty 1)
15 2017 Deck Height Dial Rod ZT (Qty 1)
16 3/8-16 Half Jam Nut (Qty 1)
17 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
18 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
19 3/8 USS Flat Washer Zinc (Qty 1)
20 Seat Spring (Qty 1)
21 3/8-16 Half Jam Nut (Qty 1)
22 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
23 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
24 3/8 USS Flat Washer Zinc (Qty 1)
25 Seat Spring (Qty 1)
26 Seat Strap with Buckles (Qty 1)
27 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
28 5/8-11 Nylon Insert Locknut Zi (Qty 1)
29 1/2-13 Nylon Insert Flange Nut (Qty 2)
30 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
31 5/8 x 5 1/2 Bolt (Qty 1)
32 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
33 .630 ID X 1.122 OD X .142 THK (Qty 2)
34 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
35 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
36 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
37 Idler Bracket (Qty 1)
38 5/8 Set Collar W/One Set Screw (Qty 1)
39 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
40 ZT Hydraulic Tank Cap (Qty 2)
41 71328-Expansion Tank CZT/ZT (Qty 2)
42 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
43 1/2 Hose Clamp (Qty 2)
44 3/8-16 Centerlock Half Nut (Qty 1)
45 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
46 5/16-18 Nylon Flange Nut (Qty 3)
47 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
48 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
49 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
50 3/8 USS Flat Washer Zinc (Qty 1)
51 Brake Lever Spacer (Qty 1)
52 Bronze Bushing SF-1220-8 (Qty 1)
53 Brake Cable Extension Plate (Qty 1)
54 Brake Load Balancer Weldment (Qty 1)
55 Load Balanced Brake Handle With Grip (Qty 1)
56 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
57 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
58 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
59 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
60 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
61 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
62 Bellows w/Hardware for 071-6065-22 (Qty 1)
63 OBSOLETE USE 071-6063-00 (Qty 1)
64 Back Cover for 071-6065-25 (Qty 1)
65 Cushion Cover for 071-6065-25 (Qty 1)
66 2025 Elite Maverick Floorboard-Orange (Qty 1)
67 2025 Maverick HD & Down Floor Mat "Saftey" (Qty 1)
68 Tachometer-Kohler/Yamaha EFI (Qty 1)
69 10-24 Nylon Insert Locknut Zin (Qty 2)
70 Light Plug (Qty 1)
71 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
72 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
73 PTO Engager-Switch for Blades (Qty 1)
74 4-Way Key Switch (Qty 1)
75 2023 Control Panel--Orange (Qty 1)
76 Tachometer-N310-0100-1018 (Qty 1)
77.1 2019 Relay Terminal (Qty 1)
78.1 2019 Relay Terminal (Qty 4)
80 Caster Bearing (Qty 4)
81 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
82 I-Beam Front Arm Short-RH--Painted (Qty 1)
84 Caster Bearing (Qty 4)
86 I-Beam Front Arm-LH--Painted (Qty 1)
88 I-Beam Front Arm Long-RH--Painted (Qty 1)
