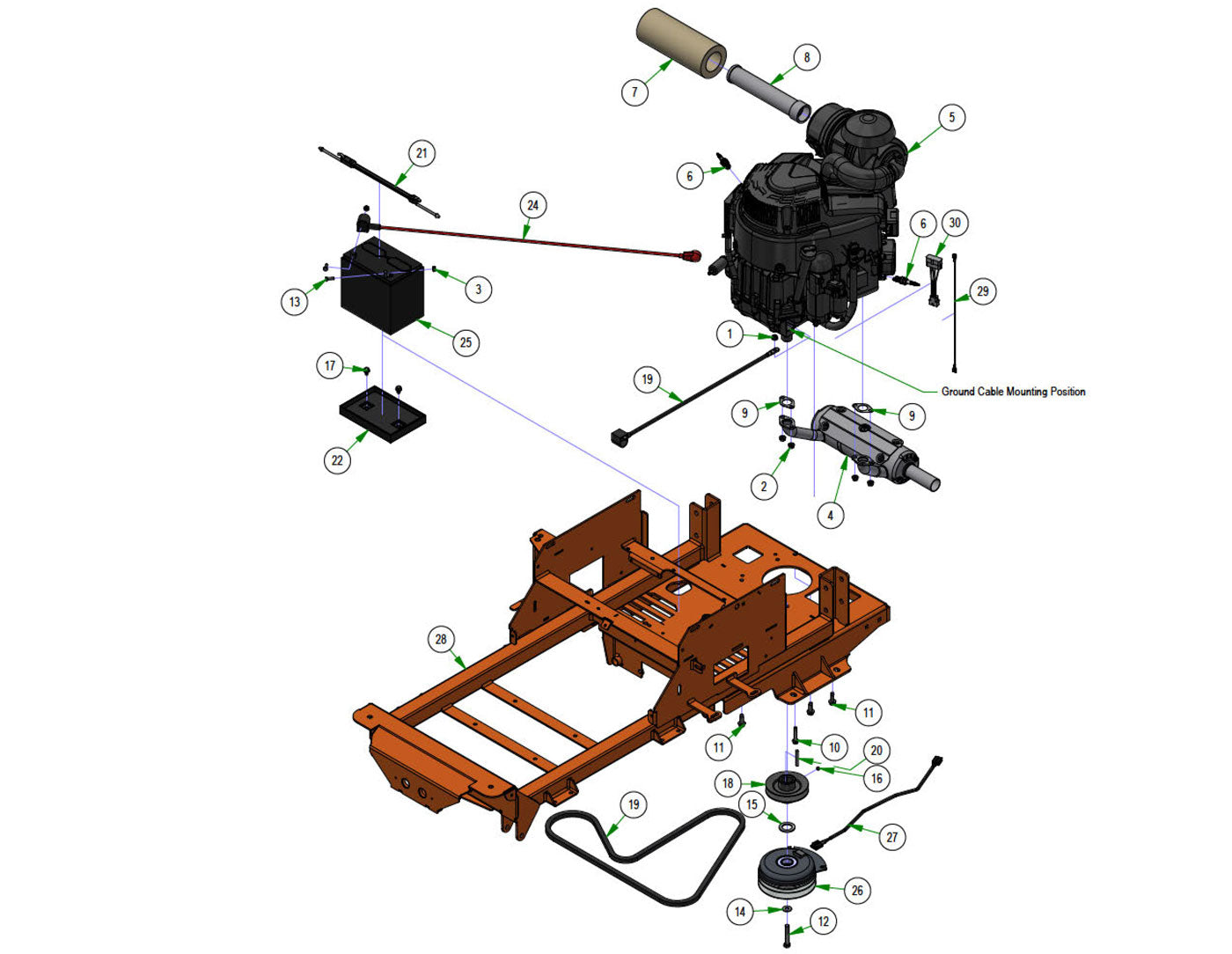

Engine - Vanguard
Parts Index
- 1 5/16-18 Gr5 Distorted-Thread Flange Locknut (Qty 1)
- 2 Muffle Nut for 015-0511-00 Briggs (Qty 4)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 Maverick HD 28 EFI Muffler (Qty 1)
- 5 28HP Briggs Vanguard 810cc (Qty 1)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 Canister Air Fil Outer2010&Old (Qty 1)
- 8 Canister Air Filter - Inner (Qty 1)
- 9 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 10 5/16-18x1 ¾ Gr5 Hex Flange Bolt Zinc Clear (Qty 1)
- 11 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 12 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 3/8 USS Flat Washer Zinc (Qty 1)
- 15 1.140x1.750x .132 Flat Washer (Qty 1)
- 16 5/16-24 x 1/4 Set Screw (Qty 1)
- 17 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 18 4 3/4 Motor Pulley (Qty 1)
- 19 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 20 1/4 X 2 Square Key Stock (Qty 1)
- 22 2023 Battery Tray Only (Qty 1)
- 23 24 inch Black Cable - MZ/ZT (Qty 1)
- 24 36 Red Battery Cable (Qty 1)
- 25 Battery - All models except Renegade and Revolt (Qty 1)
- 26 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 27 Clutch Pigtail (Qty 1)
- 28 2025 Maverick Frame--Orange (Qty 1)
- 30 2021 28 Briggs EFI Pigtail (Qty 1)
-
1#013-0101-00
5/16-18 Gr5 Distorted-Thread Flange Locknut
Qty Used: 1Regular price $0.39 USDRegular priceUnit price per
-
2#013-8250-00
Muffle Nut for 015-0511-00 Briggs
Qty Used: 4Regular price $8.99 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#015-0074-00
Maverick HD 28 EFI Muffler
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
5#015-0092-00
28HP Briggs Vanguard 810cc
Qty Used: 1Regular price $2,499.99 USDRegular priceUnit price per
-
6#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
7#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
8#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
9#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
10#018-0114-00
5/16-18x1 ¾ Gr5 Hex Flange Bolt Zinc Clear
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
11#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
12#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
13#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
16#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
17#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
18#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
19#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
20#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
22#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
23#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
24#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
25#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
27#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
28#070-2504-00
2025 Maverick Frame--Orange
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
30#086-9015-21
2021 28 Briggs EFI Pigtail
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
