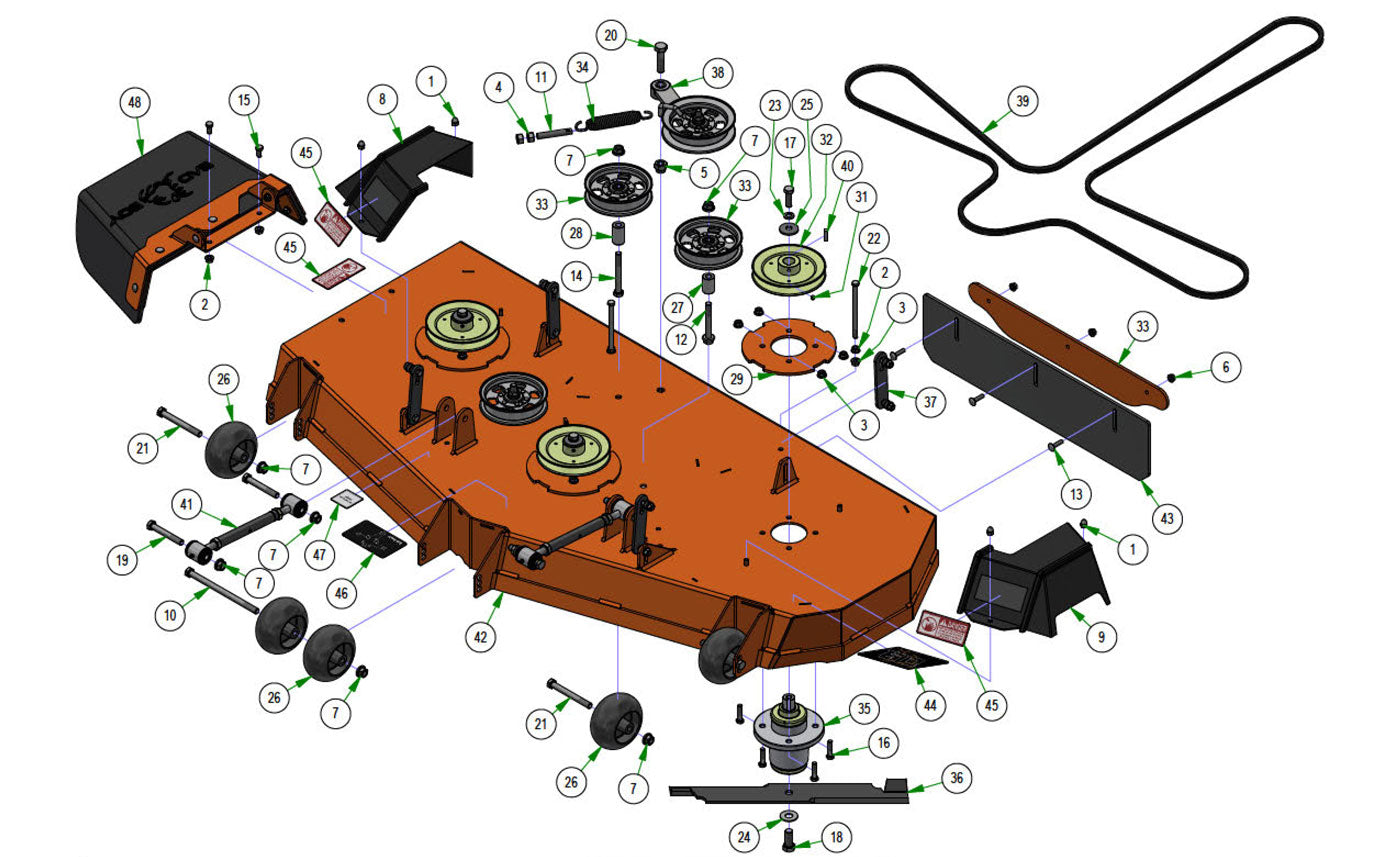

60" Deck

60" Deck

Parts Index

1 Acorn Nut-Pulley Cover (Qty 4)
2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
3 3/8 Nylock Flange Nut (Qty 14)
4 1/2-13 Hex Nuts Zinc (Qty 2)
5 5/8-11 Nylon Insert Locknut Zi (Qty 1)
6 5/16-18 Nylon Flange Nut (Qty 3)
7 1/2-13 Nylon Insert Flange Nut (Qty 12)
8 RH Pulley Cover 54"/60" (Qty 1)
9 LH Pulley Cover 54"/60" (Qty 1)
10 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
11 All Thread (Qty 1)
12 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
13 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
15 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
16 3/8 x 1 1/2 Bolt (Qty 12)
17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
18 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
19 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
20 5/8-11 X 2-1/4 GR 5 Hex Bolts (Qty 1)
21 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
22 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
23 1/2 Lockwasher Zinc (Qty 3)
24 5/8 Flat Washer (Qty 3)
25 1/2 Belleville Washer #K2000-G (Qty 3)
26 Deck Wheel (Qty 6)
27 .502 ID X 1.000 0D X 1.500 (Qty 2)
28 .502 ID X 1.00 OD X 1.750 (Qty 1)
29 Deck Spindle Support Plate 60"--Orange (Qty 3)
31 5/16-24 x 1/4 Set Screw (Qty 3)
32 6 1/4 Spindle Deck Pulley (Qty 3)
33 5 3/4 Idler Pulley-Capitol (Qty 3)
33.1 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
34 2015 Deck Idler Spring (Qty 1)
35 Commercial Cast Iron Spindle (Qty 3)
36 60" High Lift Blade (Qty 3)
37 MZ/ZT Deck Hanger Assembly (Qty 4)
38 Maverick HD & Down Deck Idler Assembly (Qty 1)
39 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
40 1/4 x 1 Square Key (Qty 3)
41 Toplink (Qty 2)
43 2023 ZT Stripe Kit Rubber (Qty 1)
44 60" Grip Deck Decal (Qty 1)
45 Danger Decal-Spindle/Discharge (Qty 3)
46 Deck Belt Route Decal (Qty 1)
47 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
