Transaxle

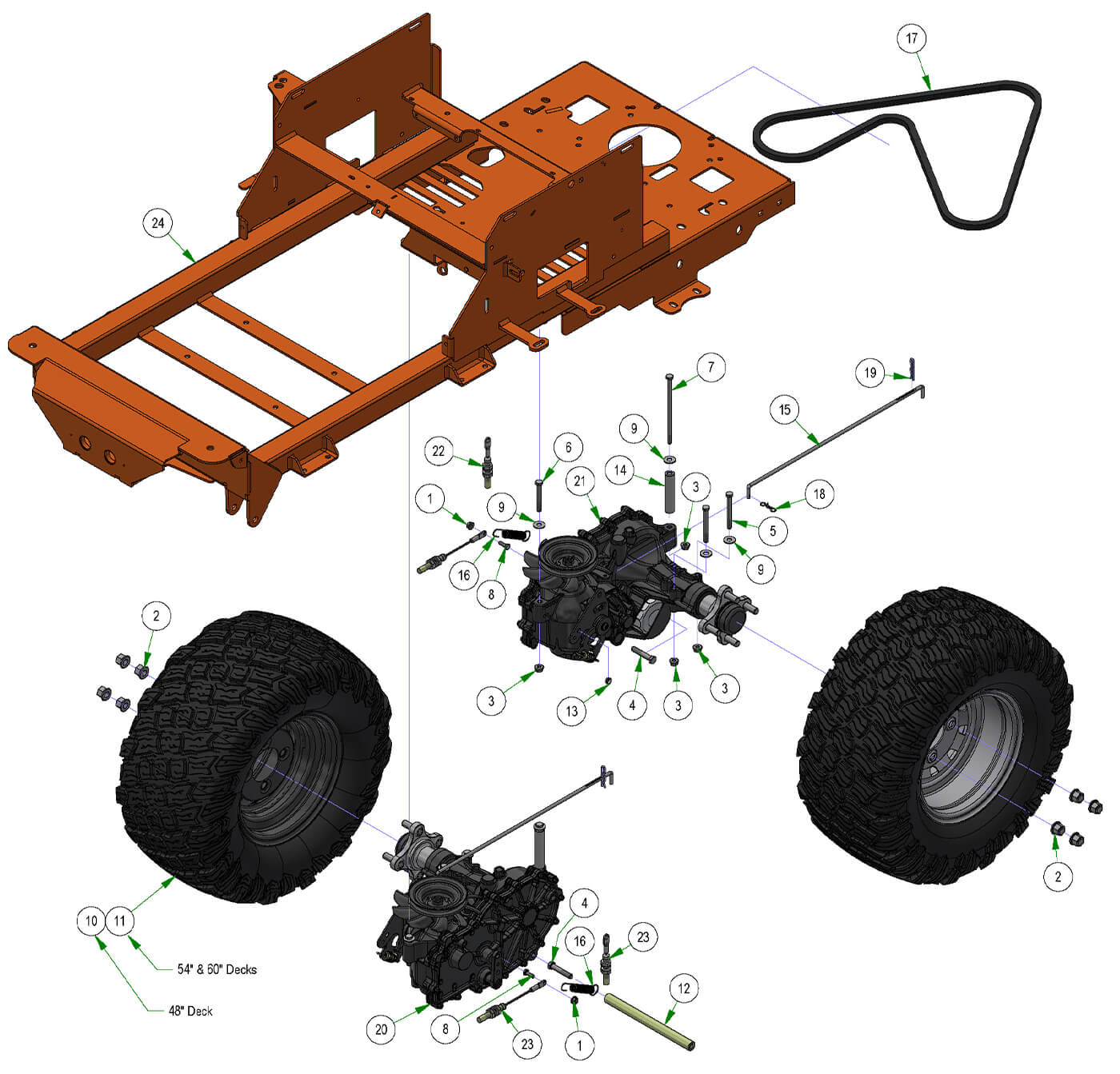

Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 Acorn Lug Nut (Qty 8)
- 3 5/16-18 Nylon Flange Nut (Qty 8)
- 4 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 5 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 6 5/16 x 2 1/2 Bolt (Qty 2)
- 7 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 8 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 9 5/16 USS Flat Washer Zinc (Qty 8)
- 10 22-10x10 Reaper Wheel/Tire Assembly (Qty 2)
- 11 22x11-10 Reaper Rear Black Assy (Qty 2)
- 12 2017 Transaxle Spacer-ZT (Qty 1)
- 13 Drive Arm Transaxle Spacer (Qty 2)
- 14 2017 Transaxle Spacer (Qty 2)
- 15 Neutral Rod (Qty 2)
- 16 Brake Return Spring (Qty 2)
- 17 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 18 Bow Pin (Qty 2)
- 19 Neutral Rod Clip (Qty 2)
- 20 2025 RH 3100 Transaxle ZT (Qty 1)
- 21 2025 LH 3100 Transaxle ZT (Qty 1)
- 22 2021 Load Balanced Brake Cable 1 (Qty 1)
- 23 2021 Load Balanced Brake Cable 2 (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
4#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
5#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

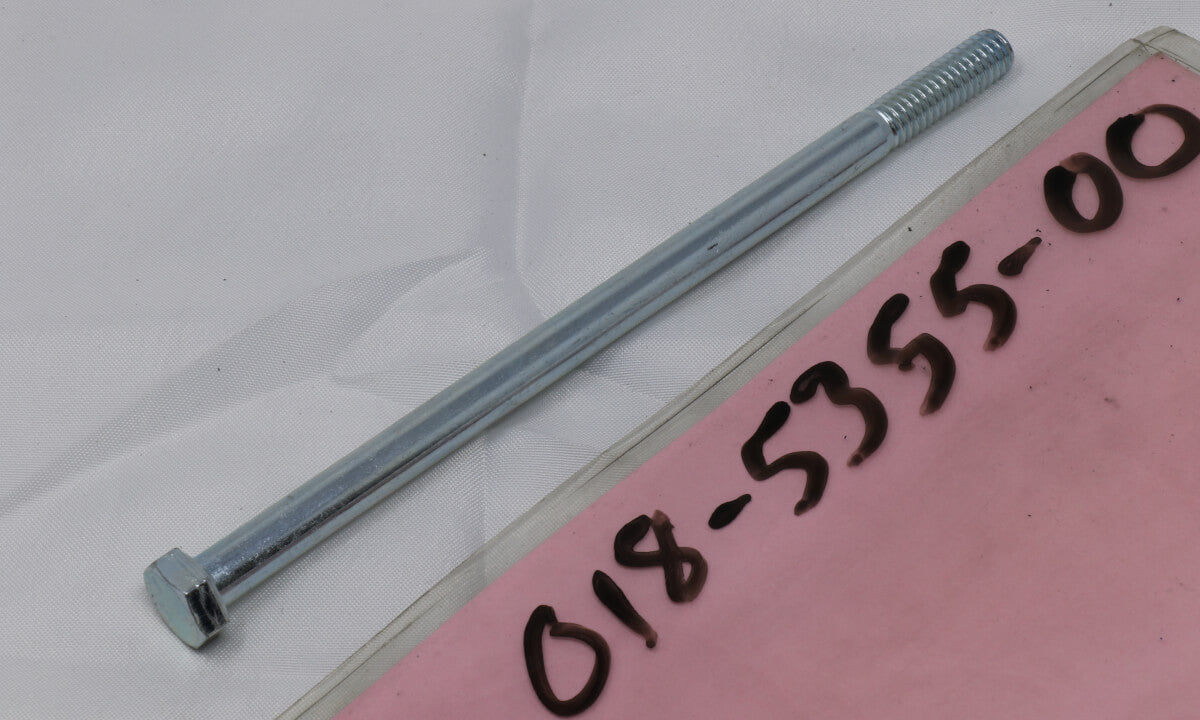

7#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
8#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
10#022-2028-00
22-10x10 Reaper Wheel/Tire Assembly
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
11#022-2215-00
22x11-10 Reaper Rear Black Assy
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-

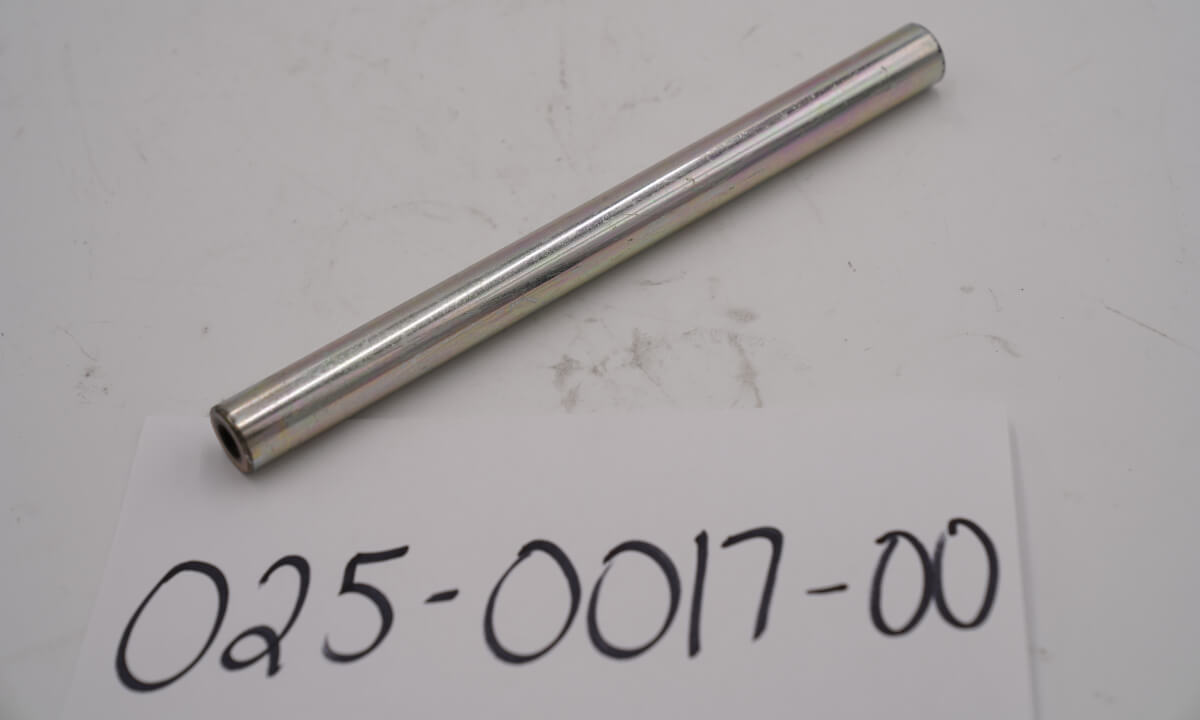

12#025-0017-00
2017 Transaxle Spacer-ZT
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
13#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
14#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
15#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
16#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
17#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
19#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
20#050-2095-03
2025 RH 3100 Transaxle ZT
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
21#050-2096-03
2025 LH 3100 Transaxle ZT
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
22#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
23#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
