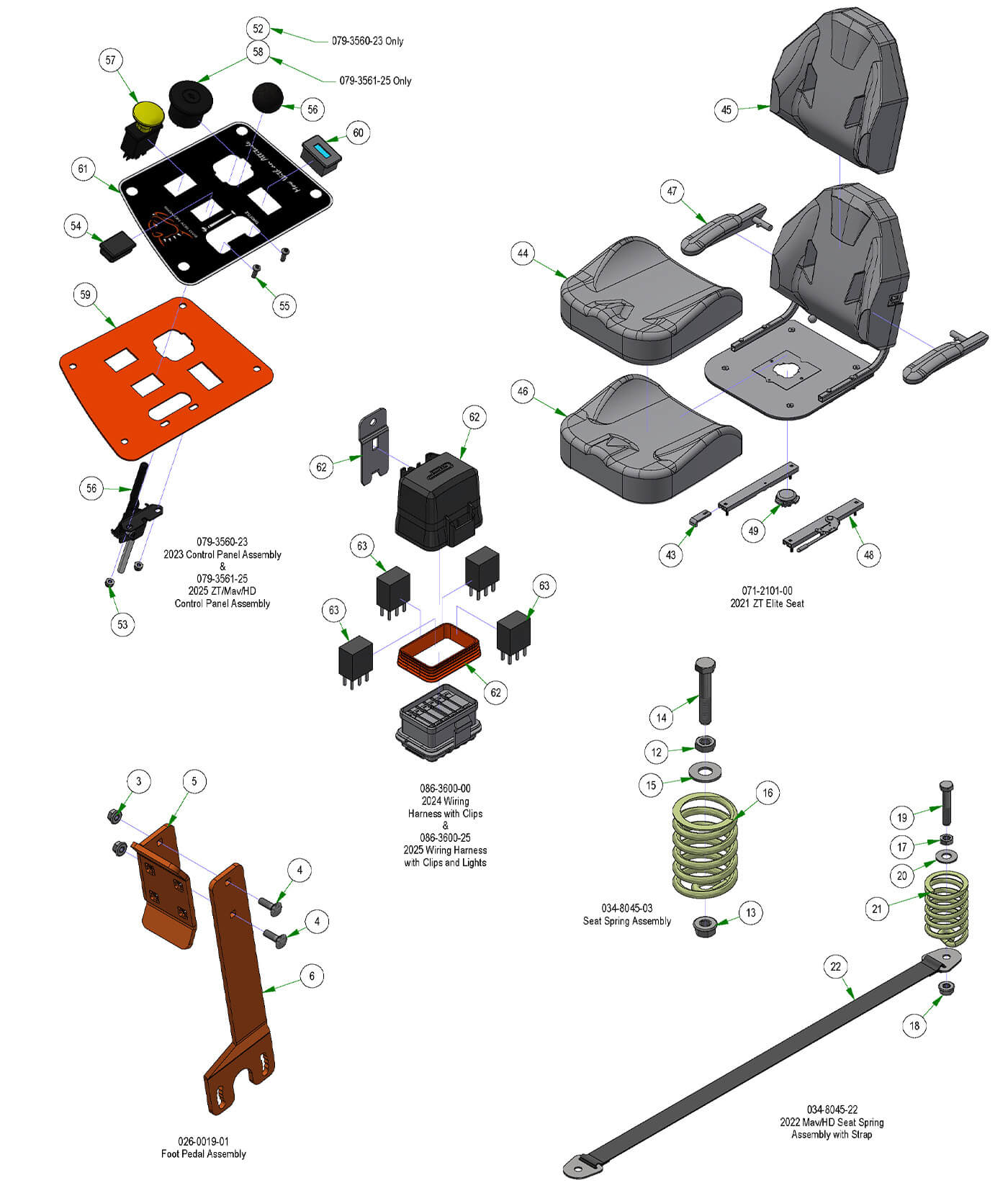

Frame Subassemblies 2
Parts Index
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 12 3/8-16 Half Jam Nut (Qty 1)
- 13 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 14 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 Seat Spring (Qty 1)
- 17 3/8-16 Half Jam Nut (Qty 1)
- 18 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 19 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 20 3/8 USS Flat Washer Zinc (Qty 1)
- 21 Seat Spring (Qty 1)
- 22 Seat Strap with Buckles (Qty 1)
- 43 Black Seat stop (Qty 1)
- 44 Seat Cover Molded Foam for 071-2040-18/071-5080-18 (Qty 1)
- 45 Back Cover for 071-2101-00 (Qty 1)
- 46 Seat Cover 071-2102-00 (Qty 1)
- 47 Arm rest Kit for 071-2102-00 (Qty 1)
- 48 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 49 13/14 MZ/Outlaw Seat Switch (Qty 1)
- 52 Ignition Switch (Qty 1)
- 53 10-24 Nylon Insert Locknut Zin (Qty 2)
- 54 Light Plug (Qty 1)
- 55 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 56 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 57 PTO Engager-Switch for Blades (Qty 1)
- 58 4-Way Key Switch (Qty 1)
- 59 2023 Control Panel--Orange (Qty 1)
- 60 Tachometer-N310-0100-1018 (Qty 1)
- 61 2023 Control Panel Decal (Qty 1)
- 62 2019 Relay Cap Kit (Qty 1)
- 63 2019 Relay Terminal (Qty 4)
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
1217#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
1318#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1419#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
1520#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
1621#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
22#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
43#039-2157-00
Black Seat stop
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
44#071-2042-01
Seat Cover Molded Foam for 071-2040-18/071-5080-18
Qty Used: 1Regular price $92.89 USDRegular priceUnit price per
-
45#071-2101-02
Back Cover for 071-2101-00
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
46#071-2102-02
Seat Cover 071-2102-00
Qty Used: 1Regular price $131.37 USDRegular priceUnit price per
-
47#071-2102-05
Arm rest Kit for 071-2102-00
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
48#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
49#071-8061-00
13/14 MZ/Outlaw Seat Switch
Qty Used: 1Regular price $17.89 USDRegular priceUnit price per
-
52#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
53#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
54#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
55#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
56#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
57#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
58#077-8078-00
4-Way Key Switch
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
59#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
60#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
61#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
62#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
63#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
