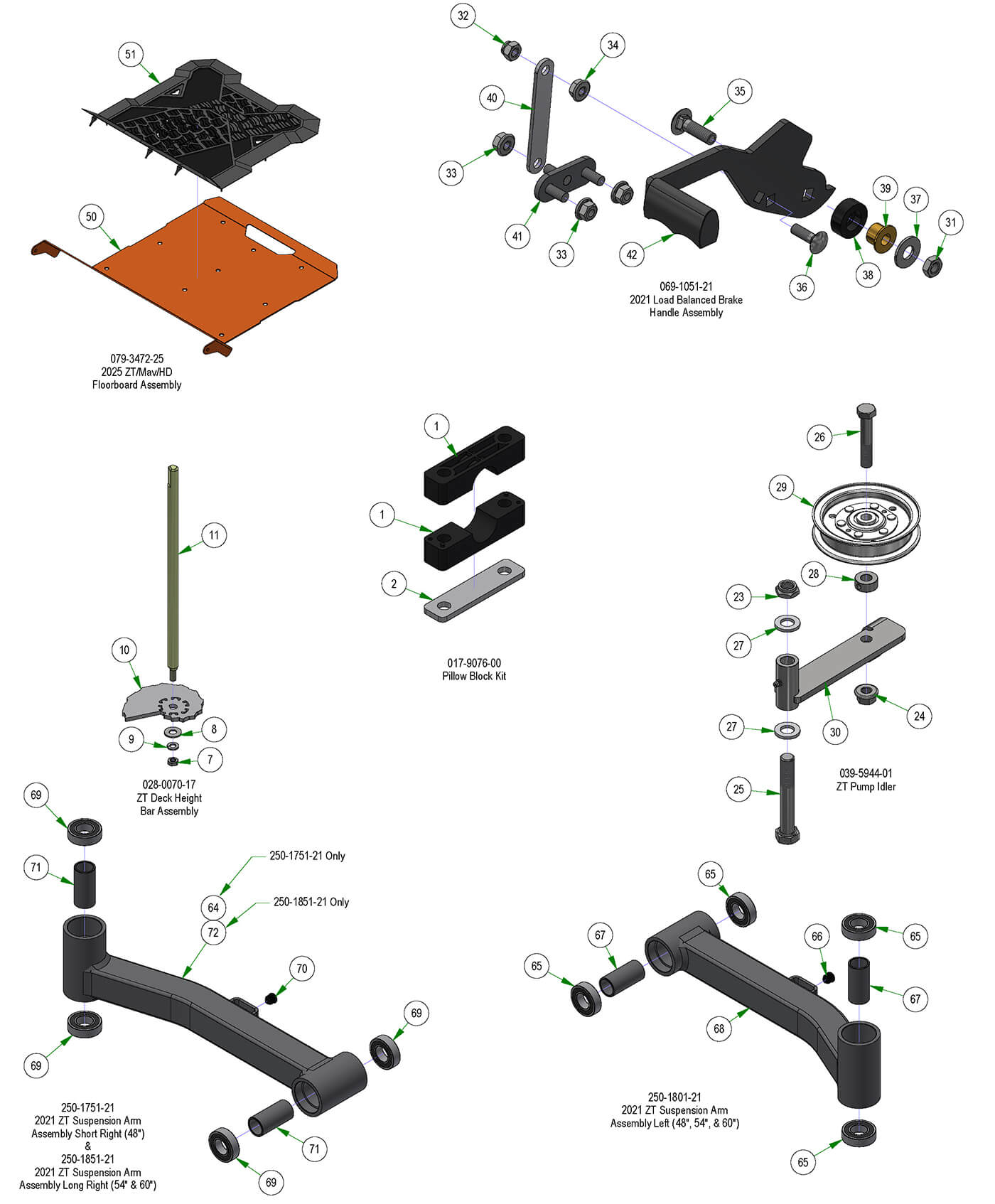

Frame Subassemblies
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 7 3/8-24 Hex Nut Zinc (Qty 1)
- 8 3/8 USS Flat Washer Zinc (Qty 1)
- 9 3/8 Lockwasher Zinc (Qty 1)
- 10 Deck Height Cam Plate (Qty 1)
- 11 2017 Deck Height Dial Rod ZT (Qty 1)
- 23 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 24 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 25 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 26 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 27 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 28 1/2 Set Collar w/set collar (Qty 1)
- 29 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 30 Idler Bracket (Qty 1)
- 31 3/8-16 Centerlock Half Nut (Qty 1)
- 32 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 33 5/16-18 Nylon Flange Nut (Qty 3)
- 34 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 35 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 36 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 37 3/8 USS Flat Washer Zinc (Qty 1)
- 38 Brake Lever Spacer (Qty 1)
- 39 Bronze Bushing SF-1220-8 (Qty 1)
- 40 Brake Cable Extension Plate (Qty 1)
- 41 Brake Load Balancer Weldment (Qty 1)
- 42 Load Balanced Brake Handle With Grip (Qty 1)
- 65 Caster Bearing (Qty 4)
- 66 5/8 Round Insert - Deck (Qty 1)
- 67 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 69 Caster Bearing (Qty 4)
- 70 5/8 Round Insert - Deck (Qty 1)
- 71 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
7#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
837#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
11#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
23#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
24#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
25#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
26#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
27#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
28#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
29#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
30#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
31#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
32#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
33#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
34#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
35#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
36#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
38#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
39#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
40#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
41#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
42#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
6569#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
6670#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
6771#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
