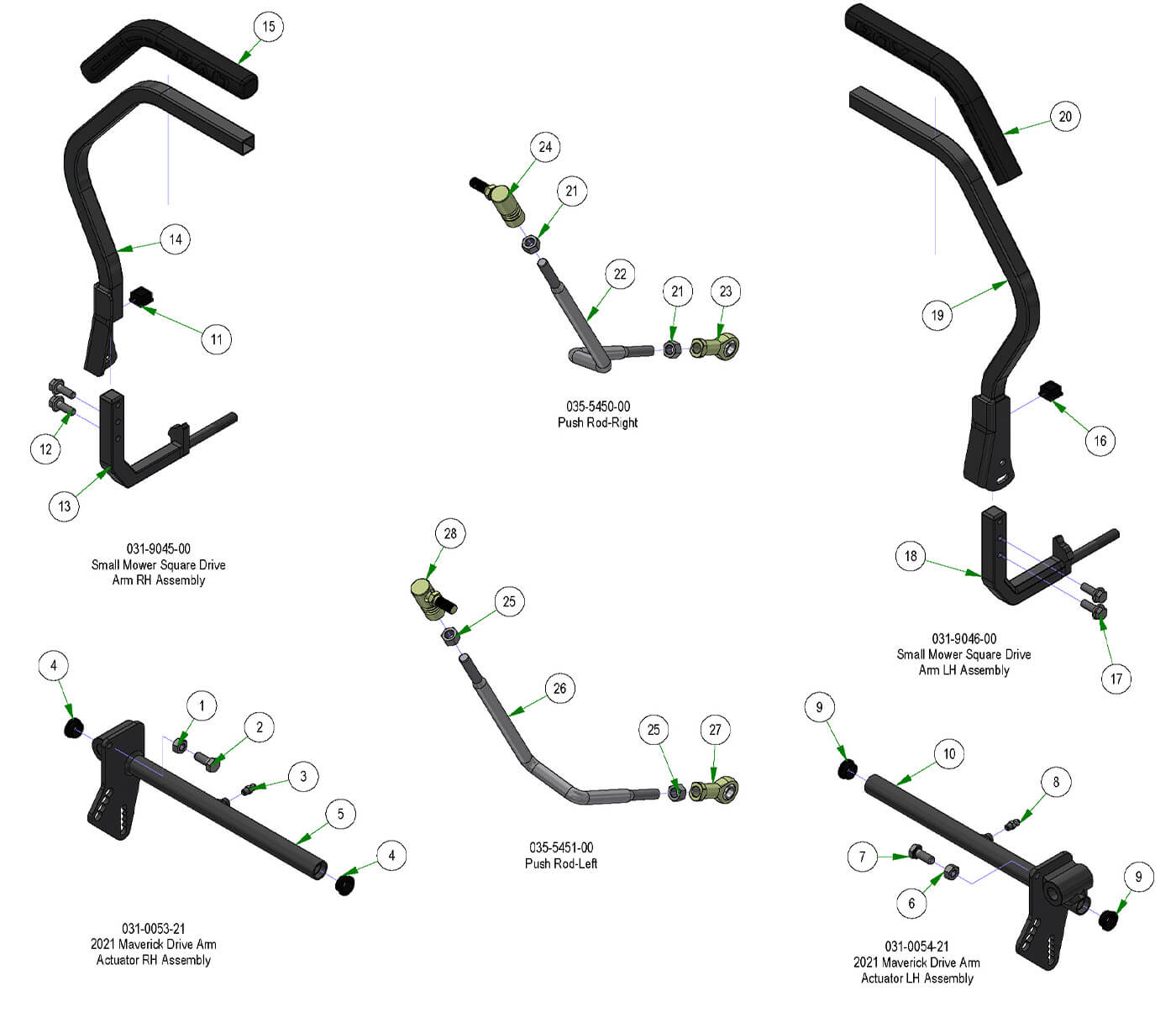

Drive Arm Subassemblies
Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 1)
- 2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 3 1/4 Drive-in Grease Fitting (Qty 1)
- 4 Drive Arm Actuator Bushing (Qty 2)
- 5 2021 Maverick Drive Actuator RH Weldment (Qty 1)
- 6 5/16-18 Hex Nuts Zinc (Qty 1)
- 7 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 8 1/4 Drive-in Grease Fitting (Qty 1)
- 9 Drive Arm Actuator Bushing (Qty 2)
- 10 2021 Maverick Drive Actuator LH Weldment (Qty 1)
- 13 Small Mower Square Drive Arm Lower RH Weldment (Qty 1)
- 14 Small Mower Square Drive Arm RH Weldment (Qty 1)
- 18 Small Mower Square Drive Arm Lower LH Weldment (Qty 1)
- 19 Small Mower Square Drive Arm LH Weldment (Qty 1)
- 21 3/8-24 Hex Nut Zinc (Qty 2)
- 23 Spherical Rod End (Qty 1)
- 24 Quick Release Ball Joint (Qty 1)
- 25 3/8-24 Hex Nut Zinc (Qty 2)
- 27 Spherical Rod End (Qty 1)
- 28 Quick Release Ball Joint (Qty 1)
-
16#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
27#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
38#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
49#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
5#031-0053-00
2021 Maverick Drive Actuator RH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#031-0054-00
2021 Maverick Drive Actuator LH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2125#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
2327#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
2428#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
