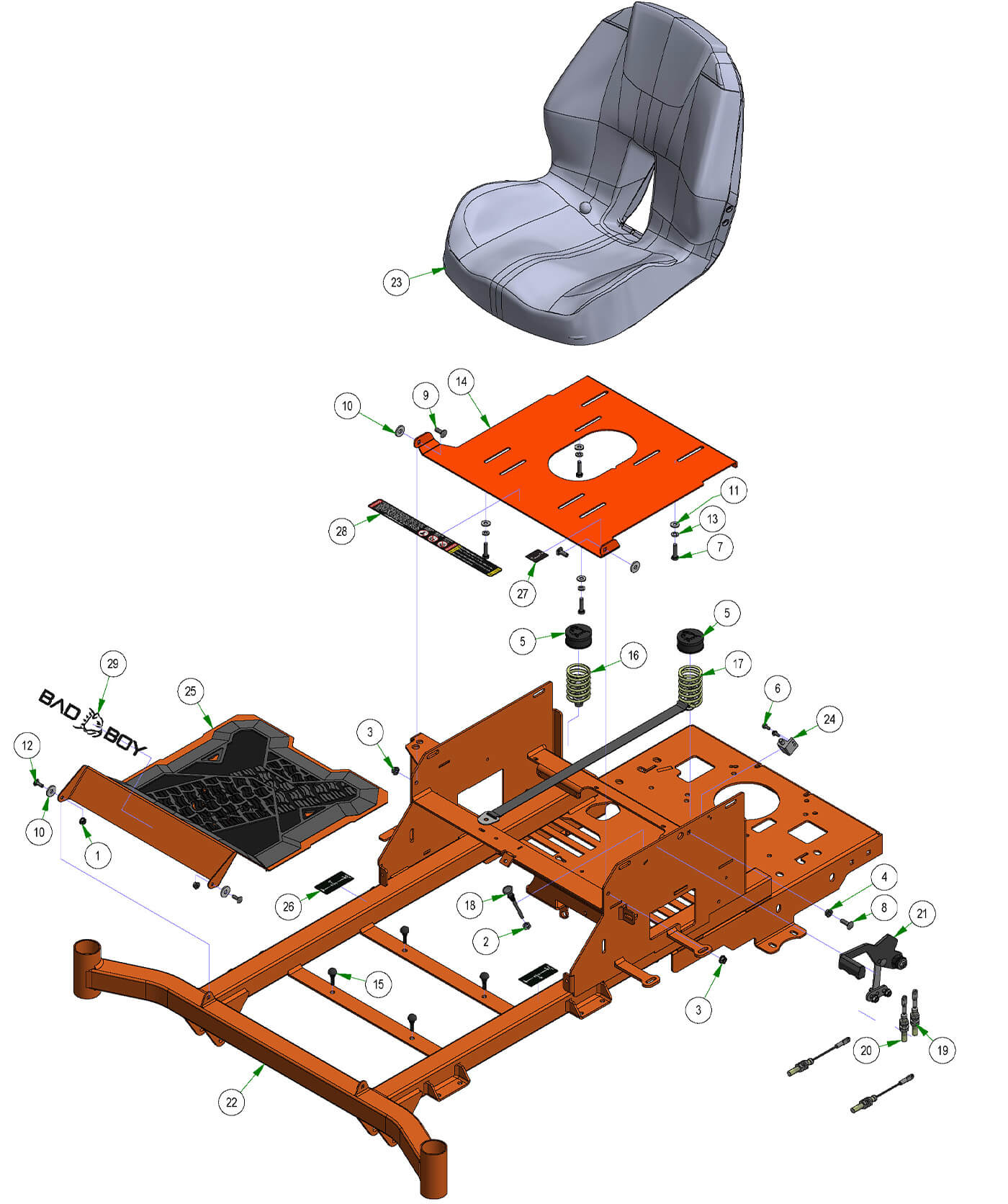

Upper Frame
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 3/8-24 Hex Nut Zinc (Qty 1)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 5 Seat Spring Cap Cover (Qty 2)
- 6 12-24 x 1/2 HWH Bolt (Qty 2)
- 7 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 8 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 9 5/16 x 7/8 Carriage Bolt (Qty 2)
- 10 .360 ID Plastic Washer (Qty 4)
- 11 1/4 USS Flat Washer Zinc (Qty 4)
- 12 1/4 x 3/4 Carriage Bolt (Qty 2)
- 13 5/16 Lock washer Zinc (Qty 4)
- 14 2023 Magnum, Rambler, Avenger Seat Plate--Orange (Qty 1)
- 15 2023 Floor Board Rubber Bumpers (Qty 4)
- 16 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 17 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 18 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 19 2021 Load Balanced Brake Cable 1 (Qty 1)
- 20 2021 Load Balanced Brake Cable 2 (Qty 1)
- 21 Brake Handle Assembly For HD Down (Qty 1)
- 22 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 23 2025 Avenger Seat (Qty 1)
- 24 Safety Switch (Qty 1)
- 26 2018 LH/RH Steering Control Decal Roll (Qty 1)
- 27 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 28 Long Seat Plate Warning Decal (Qty 1)
- 29 Flying Bulldog Front Bumper Decal (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
6#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
7#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
11#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
12#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
13#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#026-2022-00
2023 Magnum, Rambler, Avenger Seat Plate--Orange
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
15#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
16#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
17#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
18#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
19#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
20#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
21#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
22#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
23#071-2100-25
2025 Avenger Seat
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
26#091-0214-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
-
27#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
28#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
29#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
