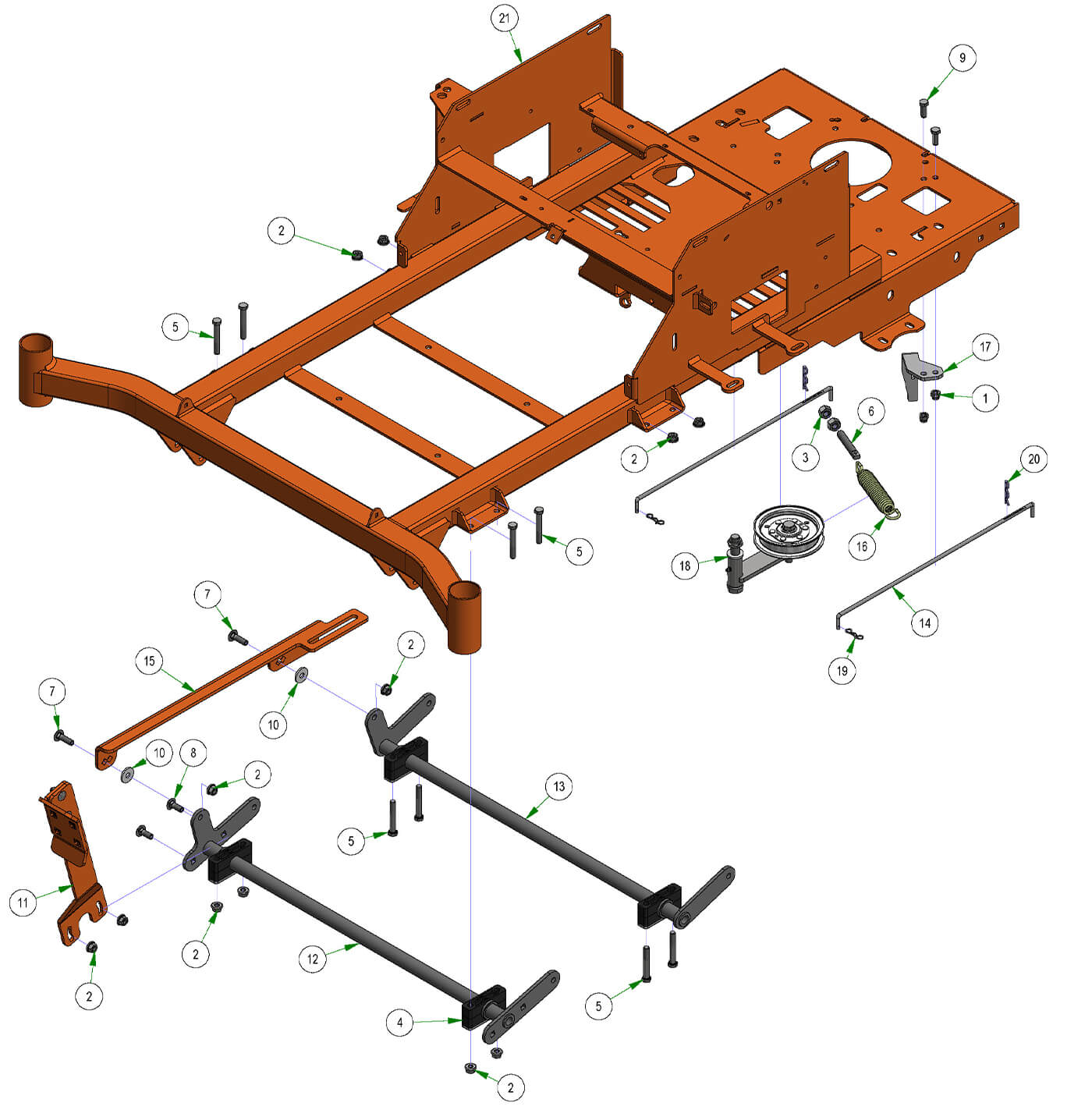

Lower Frame
Parts Index
- 1 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 2 3/8 Nylock Flange Nut (Qty 12)
- 3 1/2-13 Hex Nuts Zinc (Qty 2)
- 4 Pillow Block (Qty 4)
- 5 3/8x2 1/2" Hex Bolt (Qty 8)
- 6 All Thread (Qty 1)
- 7 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 8 3/8 x 1 Carriage Bolt (Qty 2)
- 9 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 10 .390 ID Plastic Washer (Qty 2)
- 11 2017 MZ Foot Pedal Assembly (Qty 1)
- 12 Actuator Bar (Front) (Qty 1)
- 13 Actuator Bar (Rear) (Qty 1)
- 14 Neutral Rod (Qty 2)
- 15 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 16 2015 Deck Idler Spring (Qty 1)
- 17 ZT Clutch Bracket--Plated (Qty 1)
- 18 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)

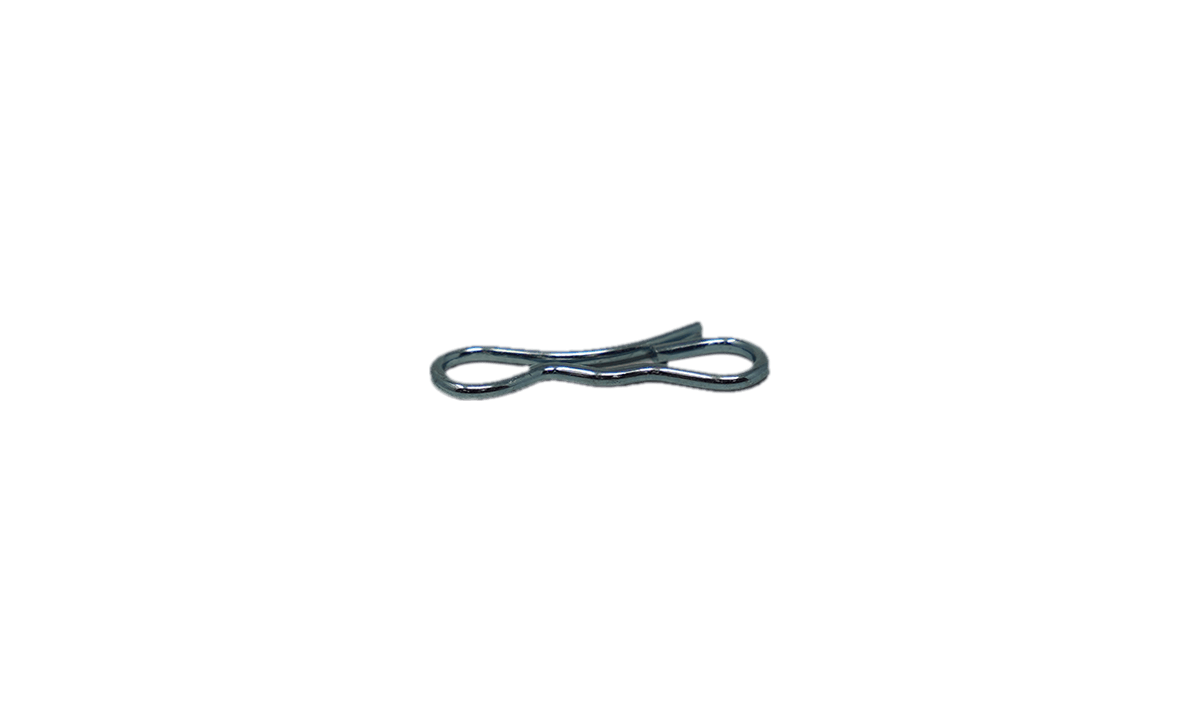

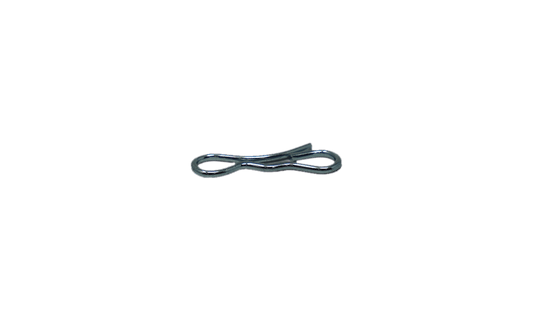

- 19 Bow Pin (Qty 2)
- 20 Neutral Rod Clip (Qty 2)
- 21 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
-

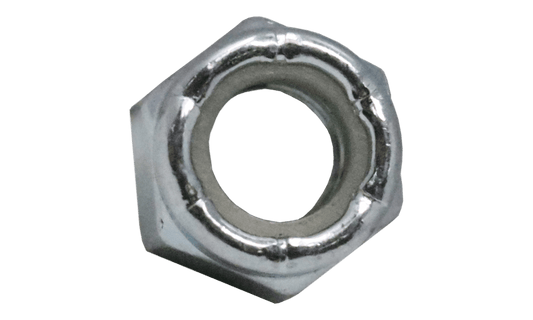

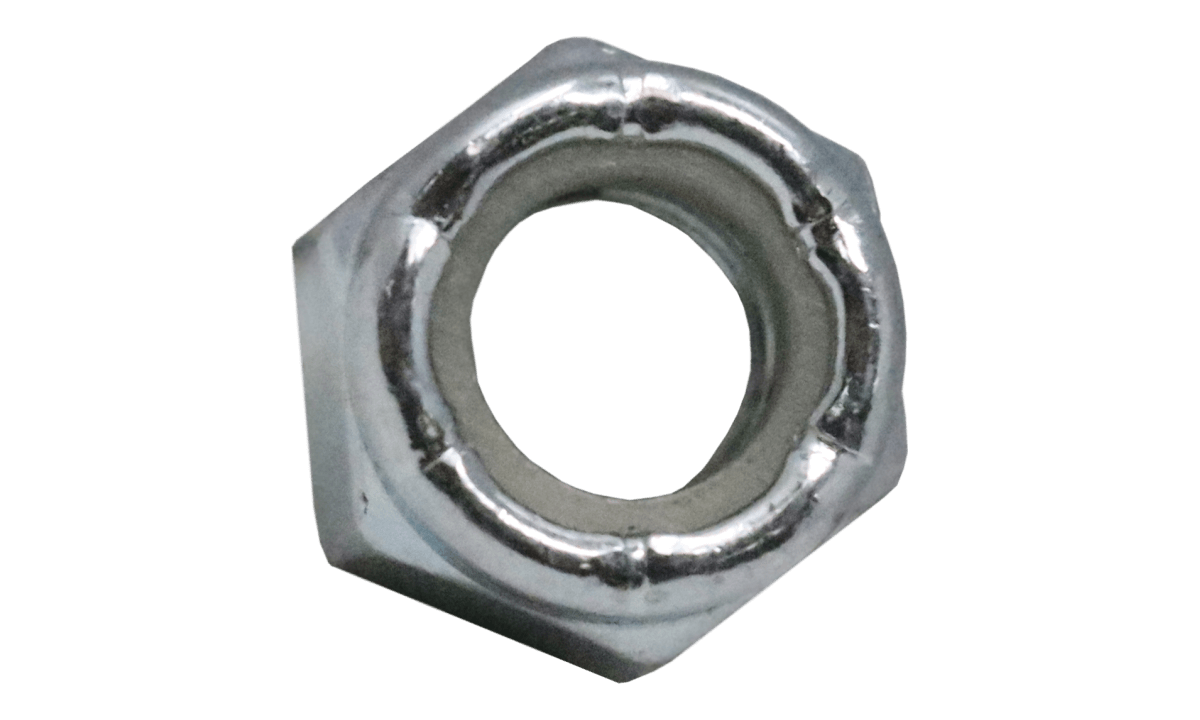

1#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-

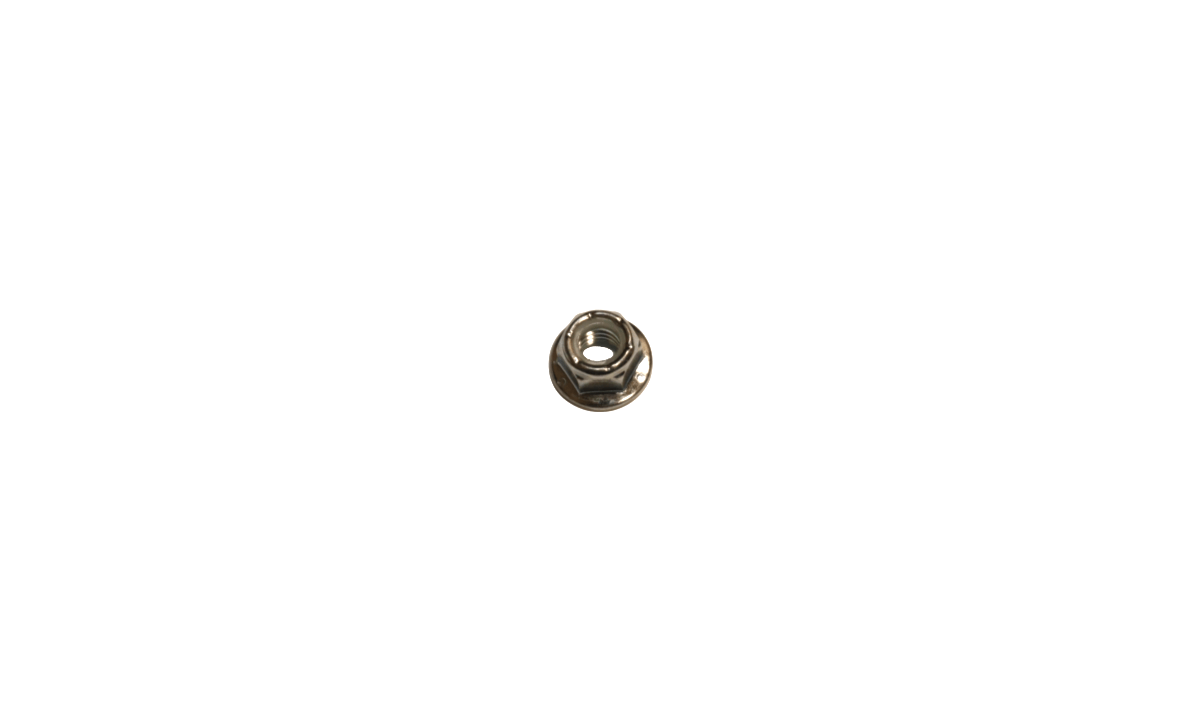

2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-

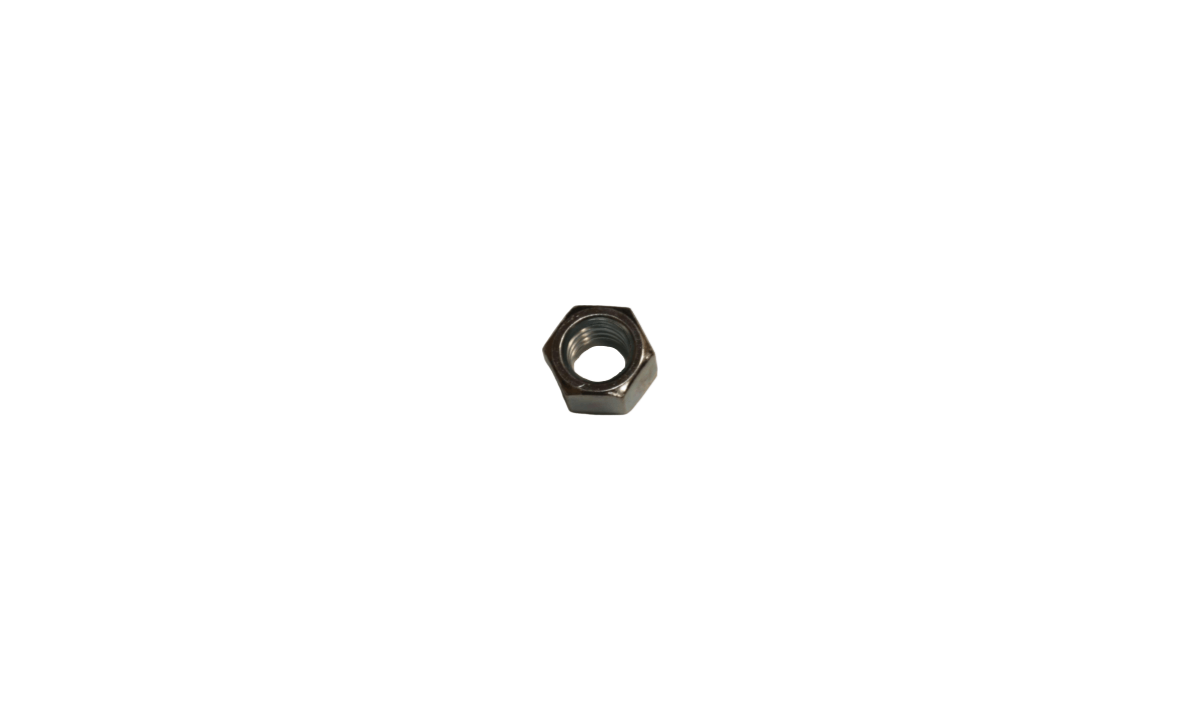

3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-

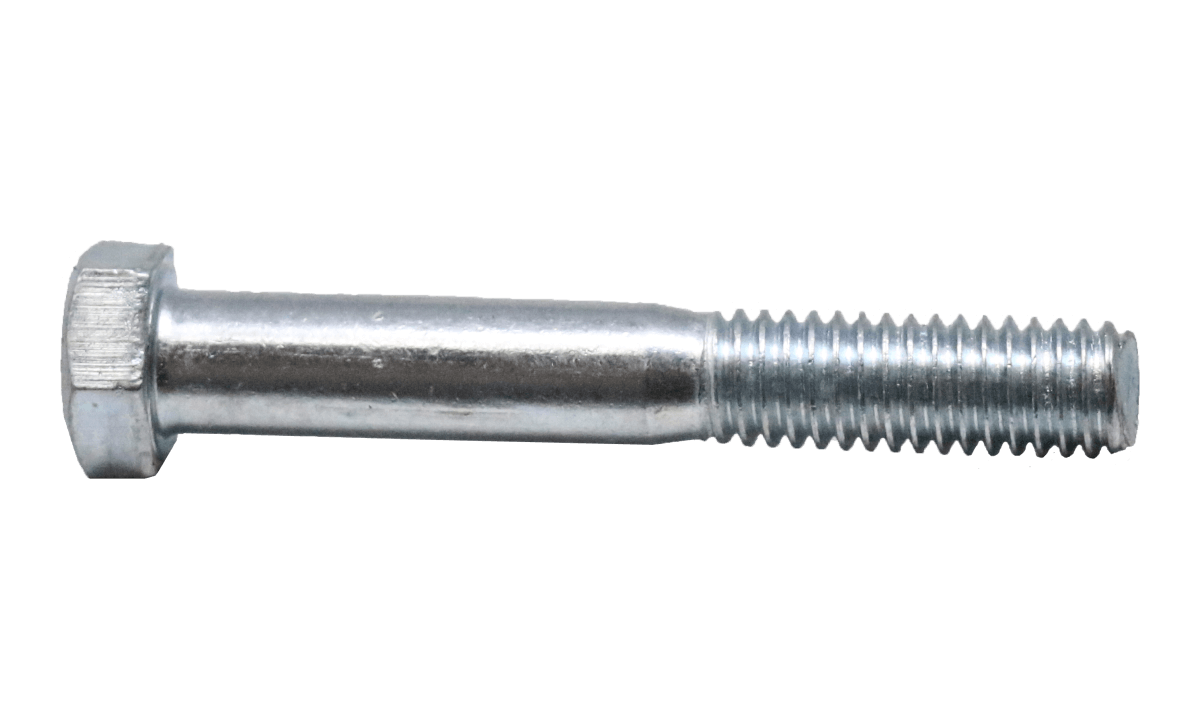

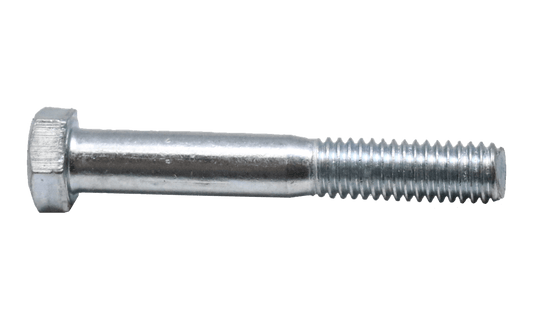

5#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
6#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
7#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
8#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#019-2073-00
.390 ID Plastic Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
12#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
13#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
14#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
15#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
16#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
17#039-0267-00
ZT Clutch Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

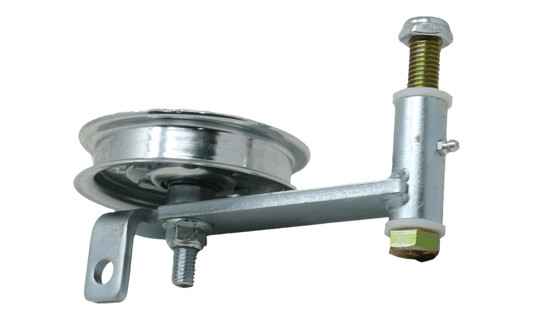

18#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
-

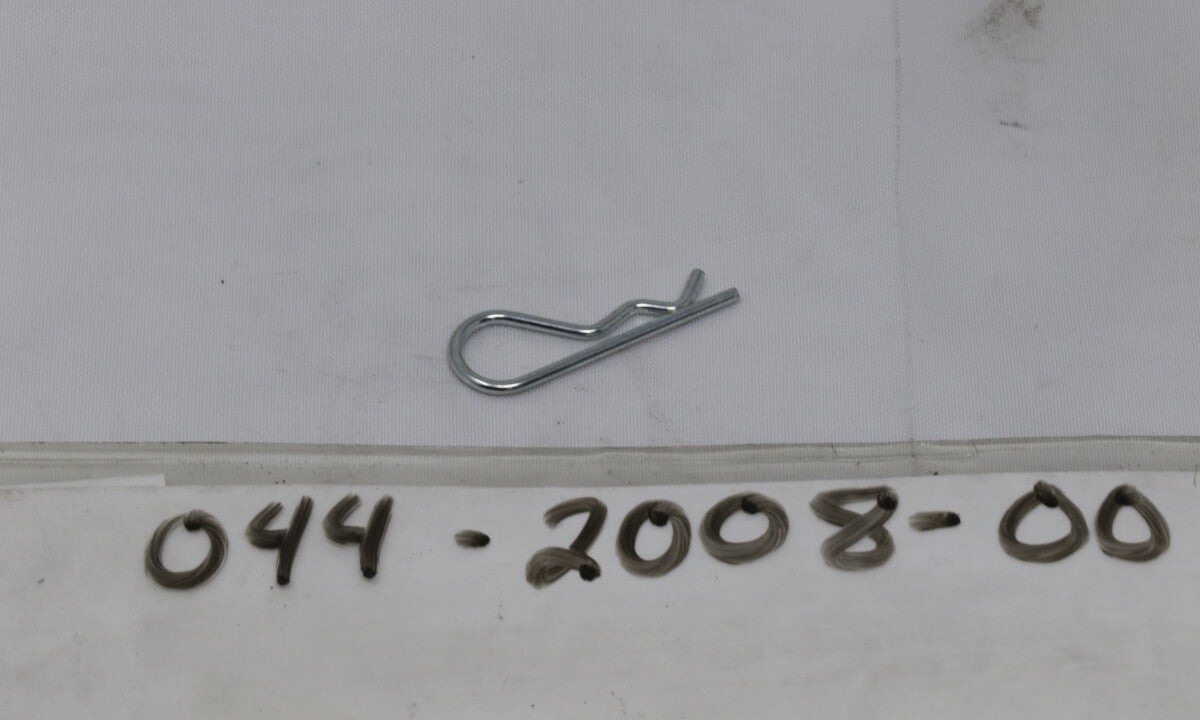

20#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
21#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
