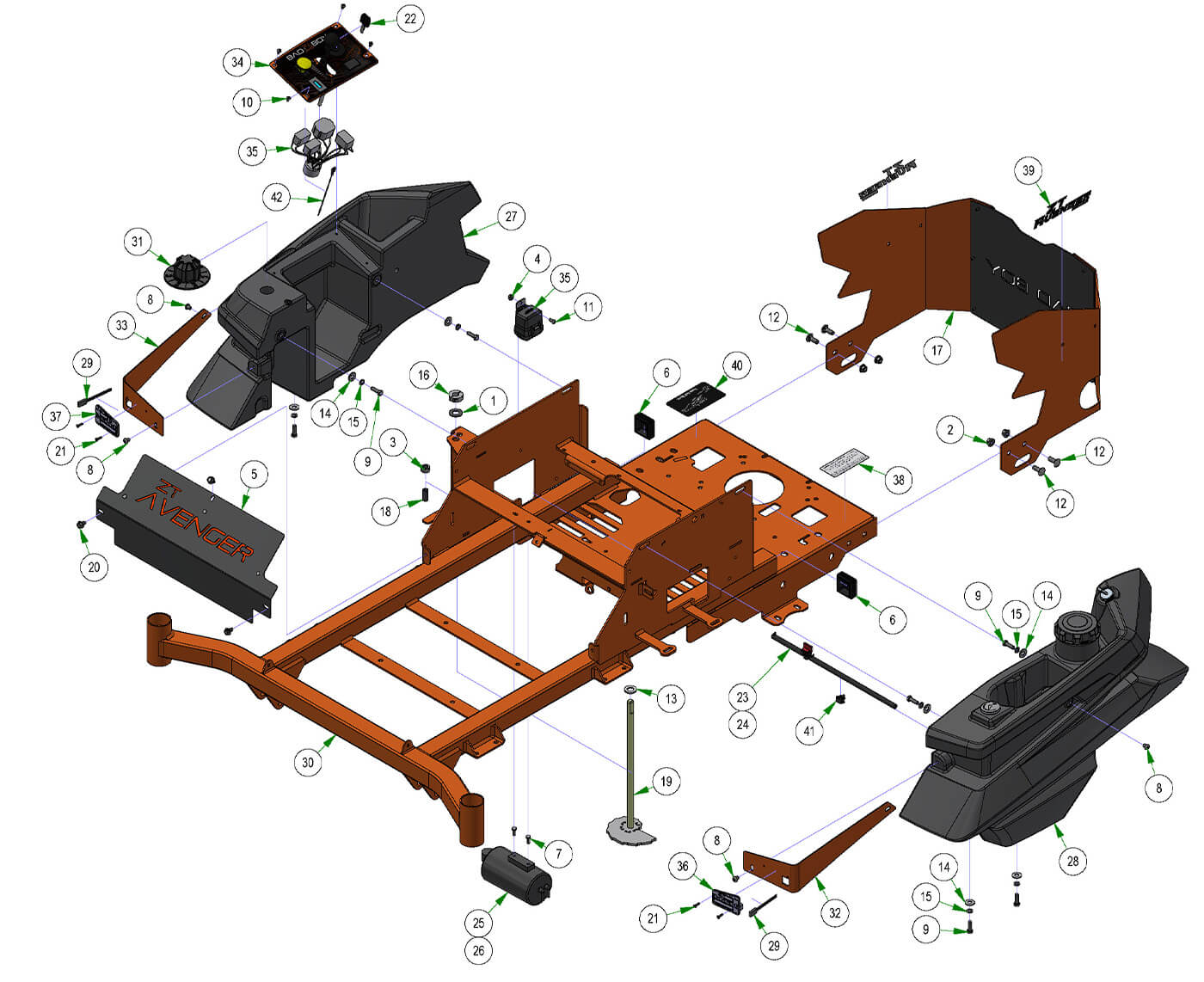

Fuel Tank & Rear Cover
Parts Index
- 1 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 4)
- 3 1/2-13 Hex Nuts Zinc (Qty 1)
- 4 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 5 2023 Avenger Cooler Cover Assembly (Qty 1)
- 6 Frame Plug 2x2 (Qty 2)
- 7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 8 5/16-18 x 3/8 Button SOC CAP BLACK (Qty 4)
- 9 5/16-18 x 3/8 Button SOC CAP BLACK (Qty 7)
- 10 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 11 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 12 3/8 x 1 Carriage Bolt (Qty 4)
- 13 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 14 5/16 USS Flat Washer Zinc (Qty 7)
- 15 5/16 Lock washer Zinc (Qty 7)
- 16 Split Collar (Qty 1)
- 17 2025 ZT Avenger backplate assembly (Qty 1)
- 18 Deck Height Cam Plunger (Qty 1)
- 19 2017 ZT Deck Height Bar Assy. (Qty 1)
- 20 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 3)
- 21 Domed Head Blind Rivets, 5/32" Diameter (Qty 4)
- 22 Ignition Key (Qty 1)
- 25 ZT/Mav EPA Cannister Assy (Qty 1)
- 28 2025 Aven, Magnum & Rambler LH Fuel Tank (Qty 1)
- 30 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 31 Deck Height Dial (Qty 1)
- 32 2025 Avenger Metal Tank Insert-Right--Painted (Qty 1)
- 33 2025 Avenger Metal Tank Insert-Left--Painted (Qty 1)
- 34 2025 Small Mower Control Panel Assembly (Qty 1)
- 35 2025 Wiring Harness With Clips and Light Option (Qty 1)
- 36 LH Tank Light (Qty 1)
- 37 RH Tank Light (Qty 1)
- 39 MY24 Avenger Back Plate Decal (Qty 2)
- 40 Pump Belt Route Decal-Pump Pla (Qty 1)
- 42 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
1#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#014-3319-23
2023 Avenger Cooler Cover Assembly
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
6#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
89#018-0116-00
5/16-18 x 3/8 Button SOC CAP BLACK
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
10#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
12#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
14#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
15#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
16#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
18#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
19#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
20#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
22#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
25#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
28#067-2026-00
2025 Aven, Magnum & Rambler LH Fuel Tank
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
30#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
39#091-0510-00
MY24 Avenger Back Plate Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
40#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
42#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
