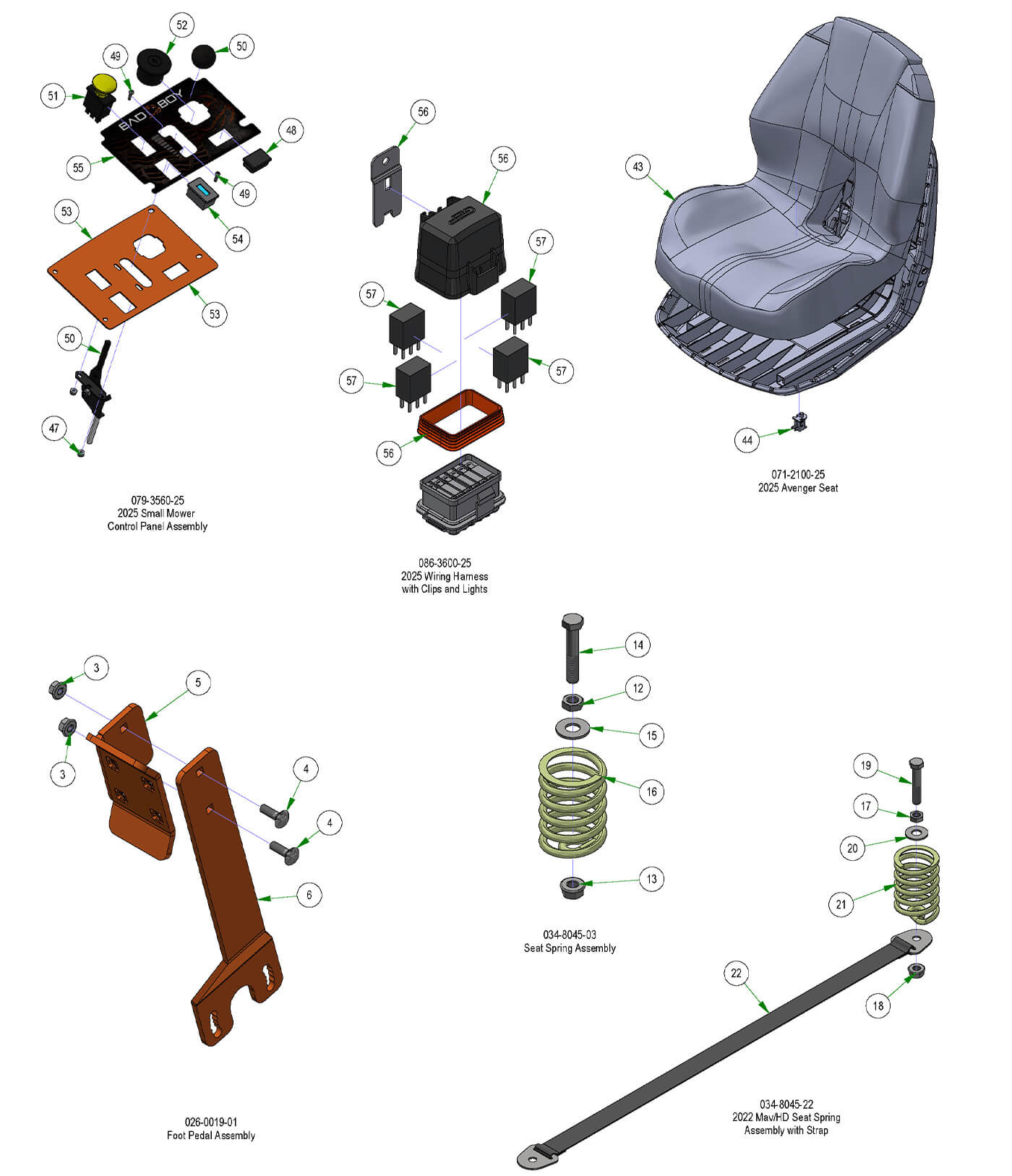

Frame Subassemblies 2
Parts Index
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 12 3/8-16 Half Jam Nut (Qty 1)
- 13 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 14 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 Seat Spring (Qty 1)
- 17 3/8-16 Half Jam Nut (Qty 1)
- 18 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 19 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 20 3/8 USS Flat Washer Zinc (Qty 1)
- 21 Seat Spring (Qty 1)
- 22 Seat Strap with Buckles (Qty 1)
- 44 Seat Switch for 2019 Renegade Gas/Diesel Seat/ (Qty 1)
- 47 10-24 Nylon Insert Locknut Zin (Qty 2)
- 48 Light Plug (Qty 1)
- 49 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 50 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 51 PTO Engager-Switch for Blades (Qty 1)
- 52 4-Way Key Switch (Qty 1)
- 54 Tachometer-N310-0100-1018 (Qty 1)
- 55 2025 Reaper Control Panel Decal (Qty 1)
- 56 2019 Relay Cap Kit (Qty 1)
- 57 2019 Relay Terminal (Qty 4)
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
1217#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
1318#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1419#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
1520#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
1621#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
22#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
44#071-5065-07
Seat Switch for 2019 Renegade Gas/Diesel Seat
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
47#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
48#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
49#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
50#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
51#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
52#077-8078-00
4-Way Key Switch
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
54#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
56#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
57#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
