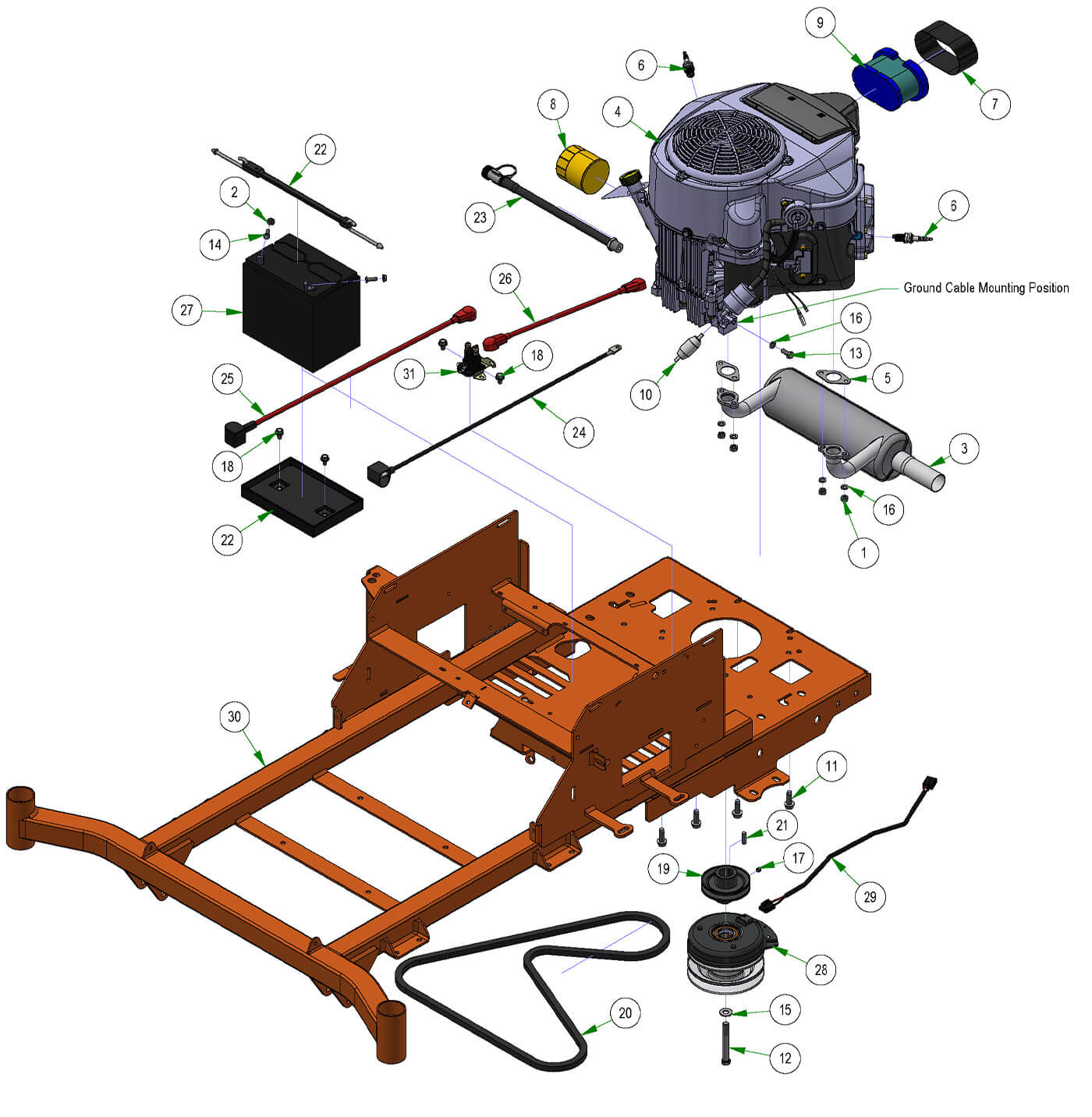

Engine - Kawasaki
Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 Kawasaki FR691 29.5HP (Qty 1)
- 5 Exhaust Gasket for 015-0077-00 (Qty 2)
- 6 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 7 Air Filter Pre-Cleaner for KAW (Qty 1)
- 8 22-26 Kaw Oil Filter FR Engine (Qty 1)
- 9 22-26 Kaw Air Filter FR / FS (Qty 1)
- 10 Universal Inline Fuel Filter (Qty 1)
- 11 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 12 7/16-20x3.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 13 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 14 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 5/16 Lock washer Zinc (Qty 5)
- 17 5/16-24 x 1/4 Set Screw (Qty 1)
- 18 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 19 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 20 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 21 1/4 x 1 Square Key (Qty 1)
- 22 2023 Battery Hold Down Assembly (Qty 1)
- 23 Kawasaki Oil Drain (Qty 1)
- 24 24 inch Black Cable - MZ/ZT (Qty 1)
- 25 24 Red Battery Cable (Qty 1)
- 26 14" Red Battery Cable (Qty 1)
- 27 Battery - All models except Renegade and Revolt (Qty 1)
- 28 120 Ft Lb. Clutch- 1” Shaft (Qty 1)
- 29 Clutch Pigtail (Qty 1)
- 30 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 31 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-0068-00
Kawasaki FR691 29.5HP
Qty Used: 1Regular price $2,499.99 USDRegular priceUnit price per
-
5#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
6#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#041-4000-00
Air Filter Pre-Cleaner for KAW
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
8#063-2096-00
22-26 Kaw Oil Filter FR Engine
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
9#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
10#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
11#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
12#018-5052-21
7/16-20x3.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
13#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
14#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
15#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
17#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
18#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
19#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
20#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
21#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
22#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
23#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
24#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
25#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
26#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
27#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
28#070-0058-00
120 Ft Lb. Clutch- 1” Shaft
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
29#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
30#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
