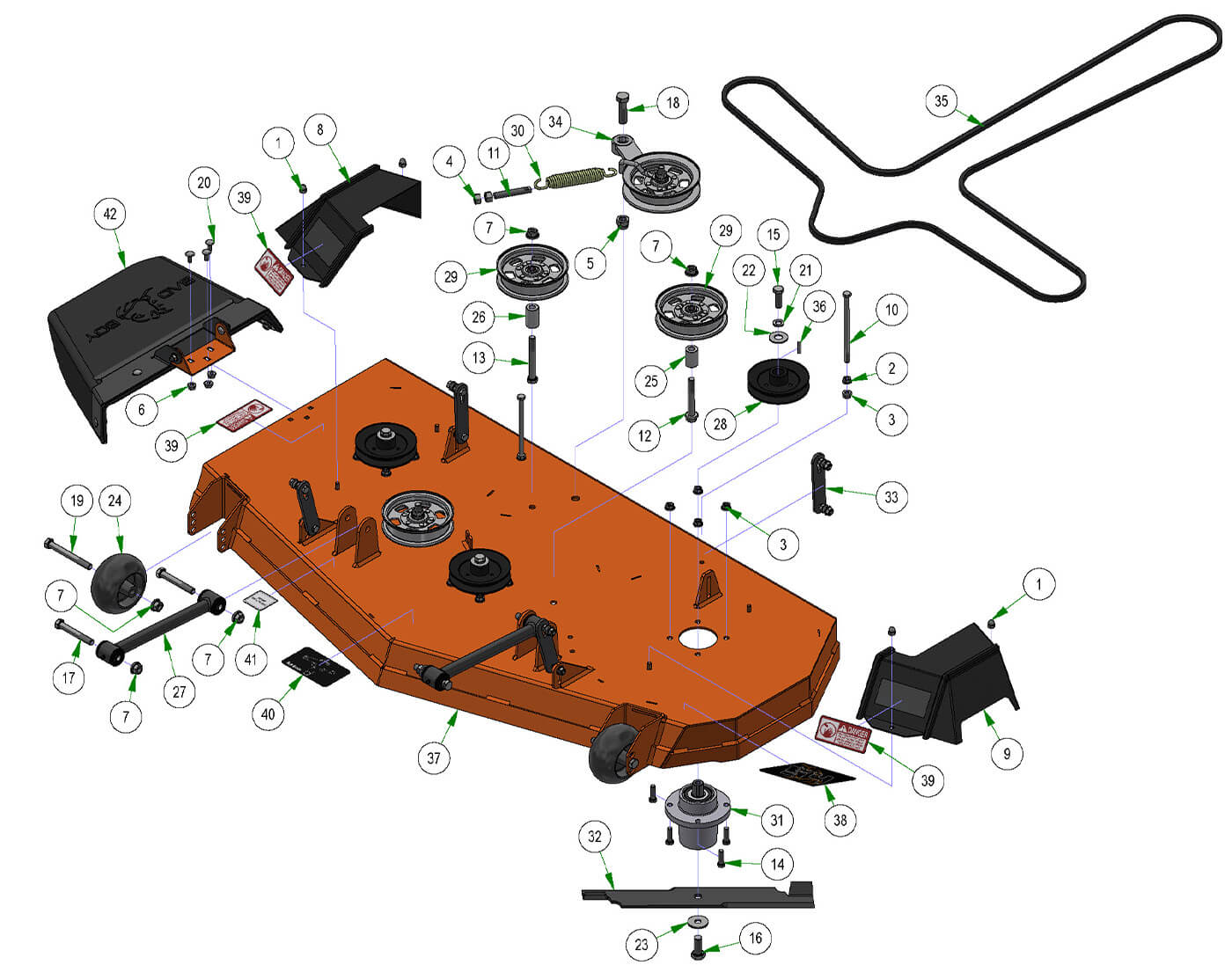

54" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 8 RH Pulley Cover 54"/60" (Qty 1)
- 9 LH Pulley Cover 54"/60" (Qty 1)
- 10 3/8-16 x 6.5 Hex Head GR.5 (Qty 2)
- 11 All Thread (Qty 1)
- 12 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 13 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 14 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 15 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 16 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 17 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 19 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 2)
- 20 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 21 1/2 Lockwasher Zinc (Qty 3)
- 22 1/2 Belleville Washer #K2000-G (Qty 3)
- 23 1/2 Belleville Washer #K2000-G (Qty 3)
- 24 Deck Wheel (Qty 2)
- 25 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 26 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 27 Hybrid Turnbuckle (Qty 2)
- 28 2014 54" MZ Deck Pulley (Qty 3)
- 29 5 3/4 Idler Pulley-Capitol (Qty 3)
- 30 2015 Deck Idler Spring (Qty 1)
- 31 Spindle Assembly-Magnum Models (Qty 3)
- 32 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 33 MZ/ZT Deck Hanger Assembly (Qty 4)
- 34 Maverick HD & Down Deck Idler Assembly (Qty 1)
- 35 54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt (Qty 1)
- 36 3/16 X 1 Square Machine Key (Qty 3)
- 38 54" Grip Deck Decal (Qty 1)
- 39 Danger Decal-Spindle/Discharge (Qty 3)
- 40 Deck Belt Route Decal (Qty 1)
- 41 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 42 MZ Discharge Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
8#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
9#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
10#018-0073-00
3/8-16 x 6.5 Hex Head GR.5
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
11#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
12#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
13#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
14#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
15#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
16#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
17#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
19#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $2.39 USDRegular priceUnit price per
-
20#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
21#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
2223#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
24#022-1001-00
Deck Wheel
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
25#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
26#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
27#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
28#033-4890-00
2014 54" MZ Deck Pulley
Qty Used: 3Regular price $29.13 USDRegular priceUnit price per
-
29#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
30#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
31#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
32#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
33#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
35#041-1560-00
54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt
Qty Used: 1Regular price $82.99 USDRegular priceUnit price per
-
36#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
38#091-0533-00
54\" Grip Deck Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
39#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
40#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
41#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
42#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
