Tiller

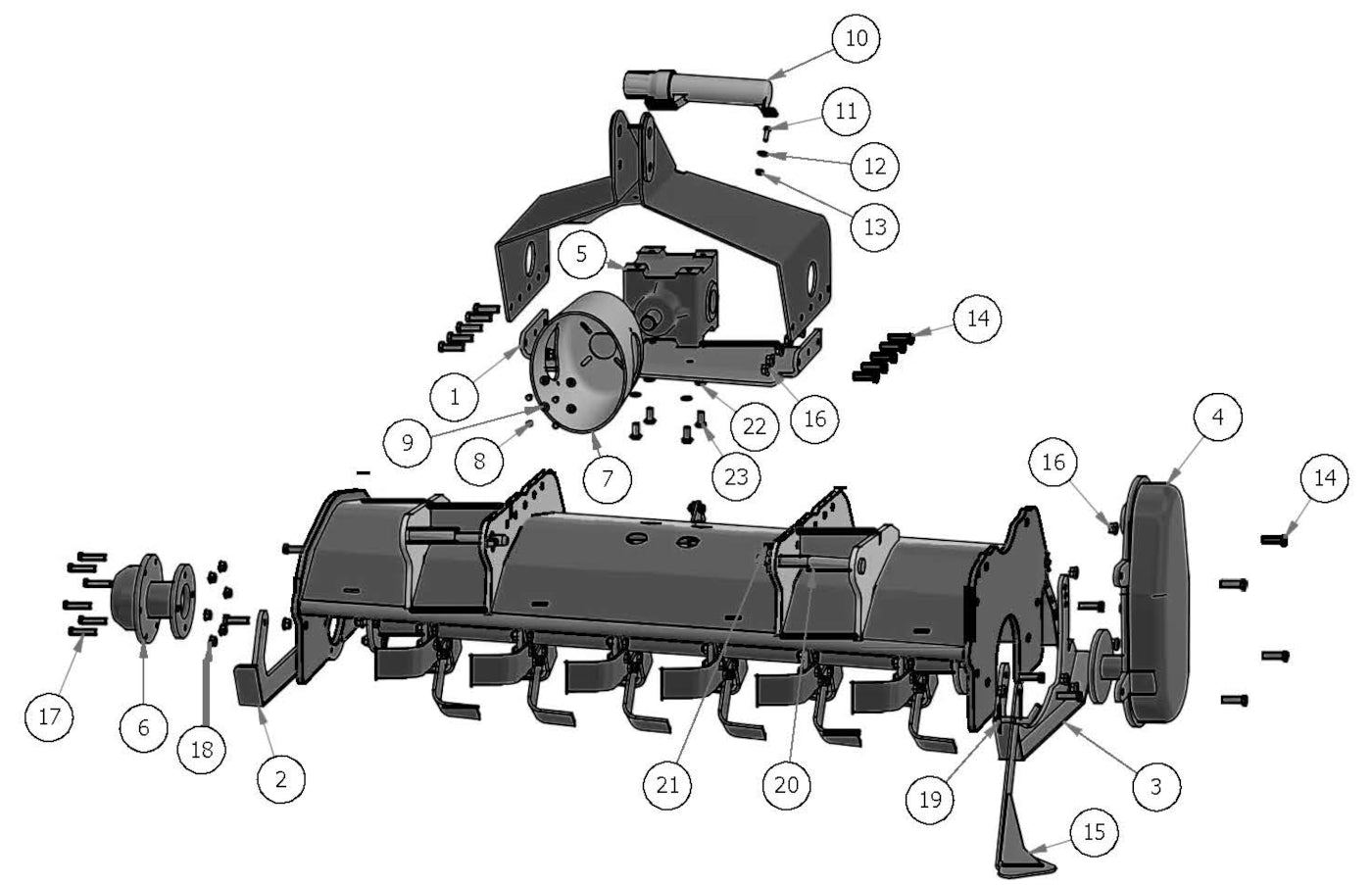

Parts Index
- 4 Rotary Tiller Side Gear Box (Qty 1)
- 5 Rotary Tiller Top Gear Box (Qty 1)
- 7 PTO Guard (Qty 1)
- 9 1/4 USS Flat Washer Zinc (Qty 4)
- 10 Document Holder (Qty 1)
- 11 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 12 5/16 USS Flat Washer Zinc (Qty 2)
- 13 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 14 1/2" X 1.25" Hex Bolt (Qty 27)
- 15 Tiller Stand Weldment (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 27)
- 19 1/2" x 4" L-Shaped Bent Pin (Qty 1)
- 20 Category 1/2 Draw Pin (Qty 2)
- 21 7/16" x 2" Round Lynch Pin (Qty 2)
- 22 1/2 Lockwasher Zinc (Qty 4)
- 23 5/8-11 X 1 GR 5 Hex Bolts Zinc (Qty 4)
-
4#350-0030-00
Rotary Tiller Side Gear Box
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
5#350-0029-00
Rotary Tiller Top Gear Box
Qty Used: 1Regular price $449.99 USDRegular priceUnit price per
-
-
9#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#367-0001-00
Document Holder
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
11#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#318-0036-00
1/2\" X 1.25\" Hex Bolt
Qty Used: 27Regular price $0.00 USDRegular priceUnit price per
-
15#339-0103-00
Tiller Stand Weldment
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 27Regular price $1.39 USDRegular priceUnit price per
-
19#344-2007-00
1/2" x 4" L-Shaped Bent Pin
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-

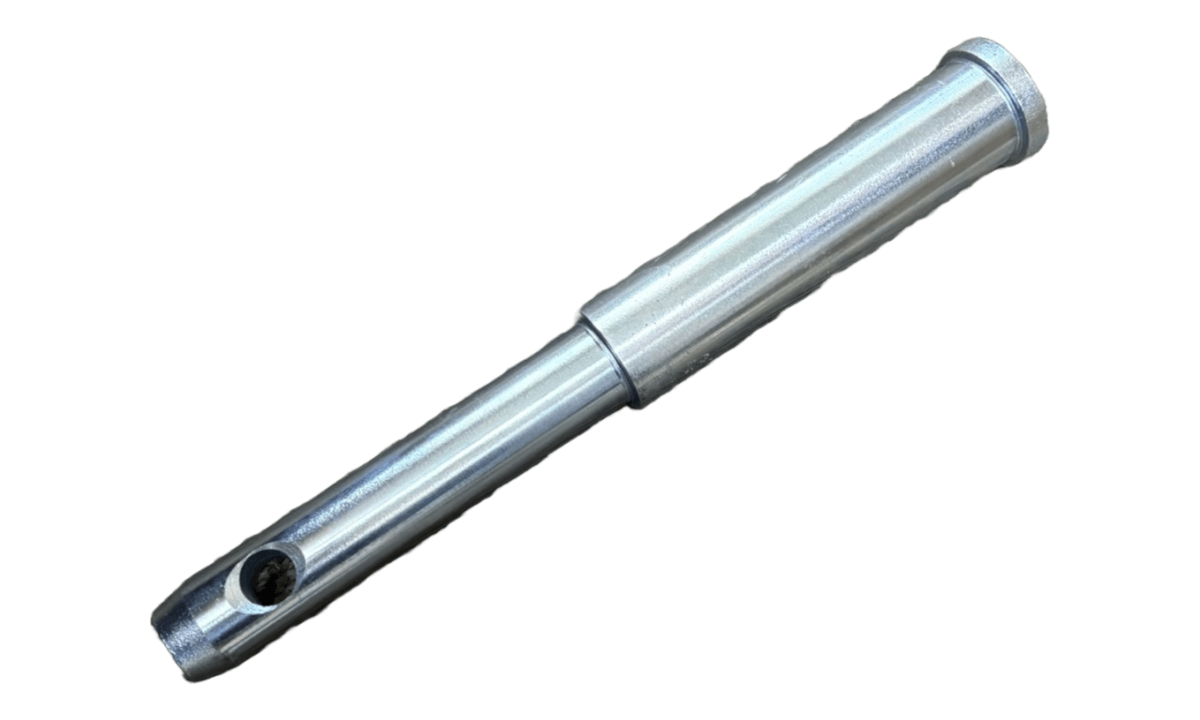

20#340-0017-00
Category 1/2 Draw Pin
Qty Used: 2Regular price $16.99 USDRegular priceUnit price per
-
21#340-0014-00
7/16" x 2" Round Lynch Pin
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
22#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-

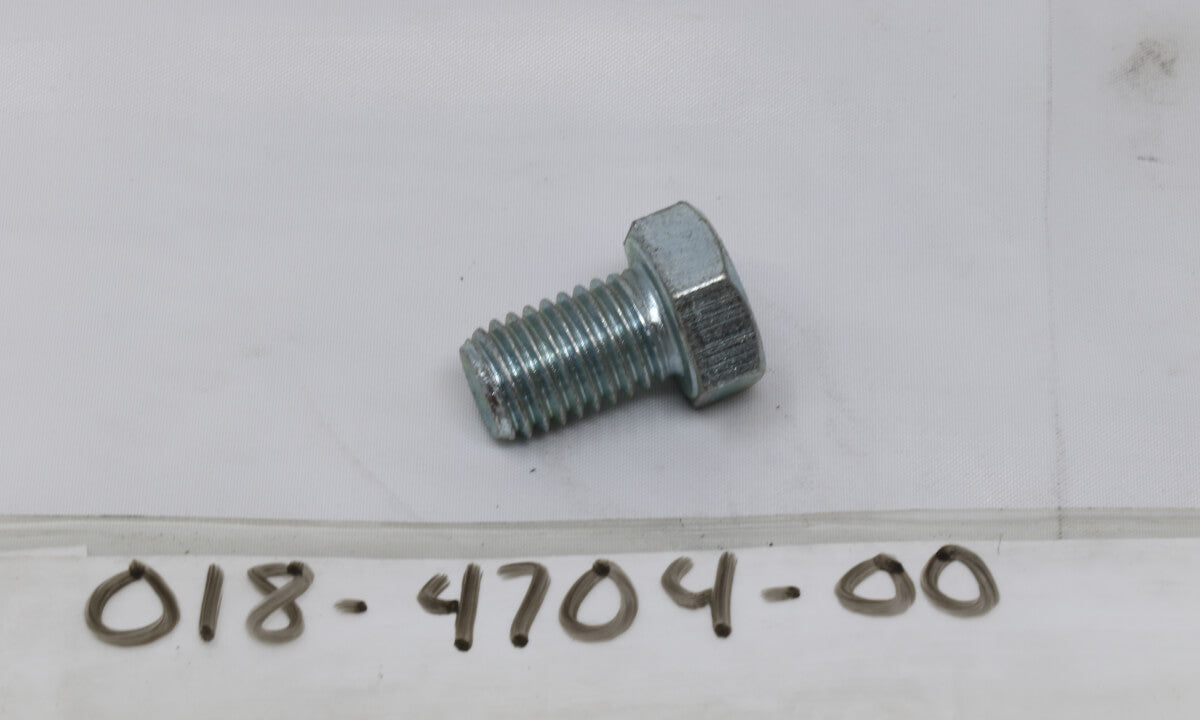

23#018-4704-00
5/8-11 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $1.20 USDRegular priceUnit price per
