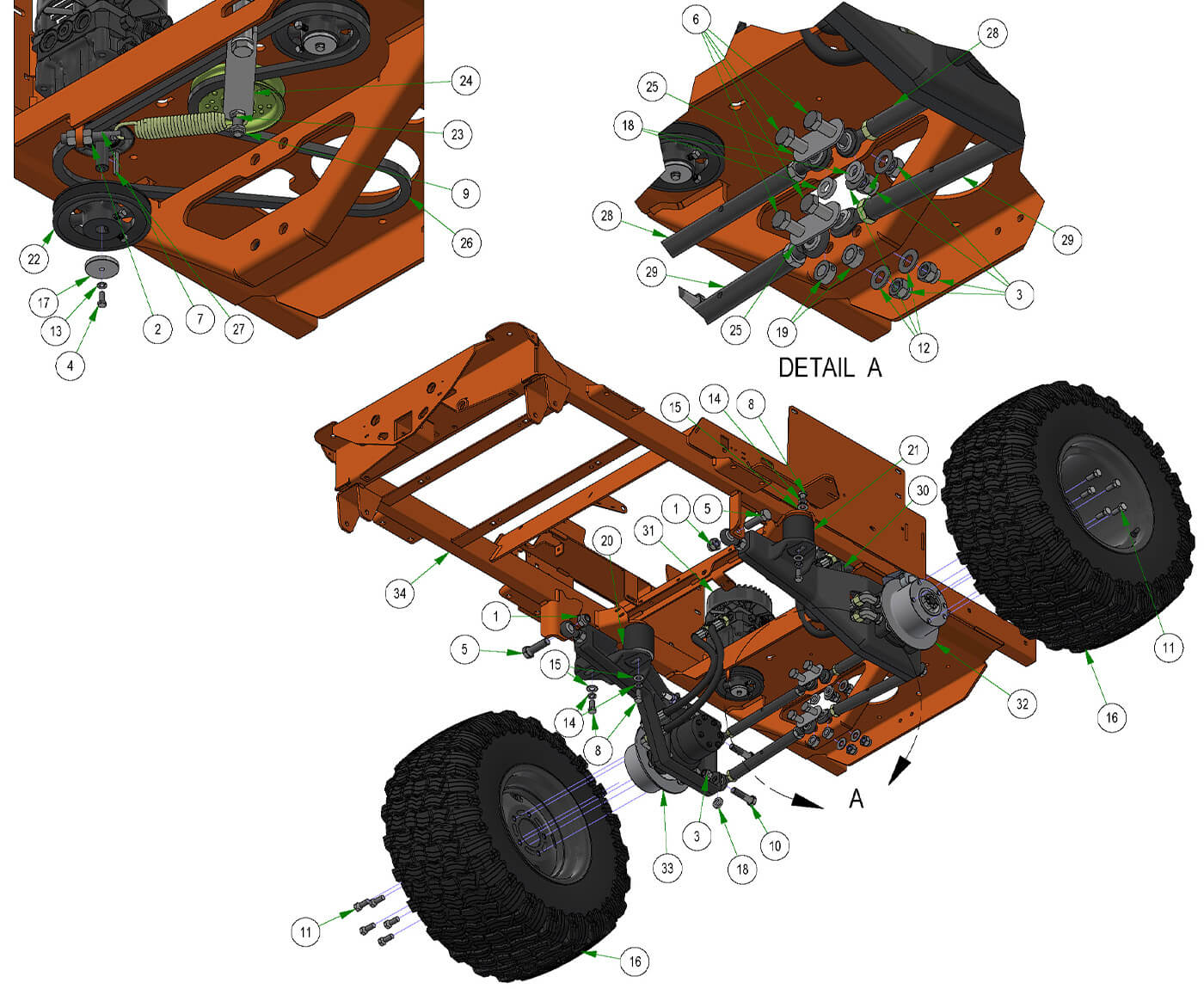

Rear Suspension
Parts Index
- 1 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 2 1/2-13 Hex Nuts Zinc (Qty 2)
- 3 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 4 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 5 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 6 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 7 All Thread (Qty 1)
- 8 1/2 x 1 Bolt (Qty 8)
- 9 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 10 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 11 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 12 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 13 1/4 Lockwasher Zinc (Qty 2)
- 14 1/2 Lockwasher Zinc (Qty 8)
- 15 1/2 SAE Flat Washer GR 8 (Qty 8)
- 16 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 17 Rogue Pump Washer (Qty 2)
- 18 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 19 5/8 Set Collar W/One Set Screw (Qty 2)
- 20 Isolator (Blue Dot) (Qty 2)
- 21 Isolator (Green Dot) (Qty 2)
- 22 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 23 2015 Deck Idler Spring (Qty 1)
- 24 2019 Rogue Pump Idler Assembly (Qty 1)
- 25 2019 Suspension Gusset--Plated (Qty 2)
- 26 2019 & up Rogue Pump Belt 68" (Qty 1)
- 27 M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS (Qty 2)
- 28 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 29 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 30 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 31 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 34 2023 Rogue Frame--Orange (Qty 1)
-
1#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
2#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
4#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
5#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
6#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
7#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
9#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
10#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
11#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
12#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
13#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
15#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
16#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
17#025-0034-00
Rogue Pump Washer
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
18#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
19#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
20#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
21#032-9000-00
Isolator (Green Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
22#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
23#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
24#039-0031-19
2019 Rogue Pump Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
25#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
26#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
27#042-5013-00
M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
28#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
29#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
30#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
31#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
34#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
