Engine - Vanguard EFI

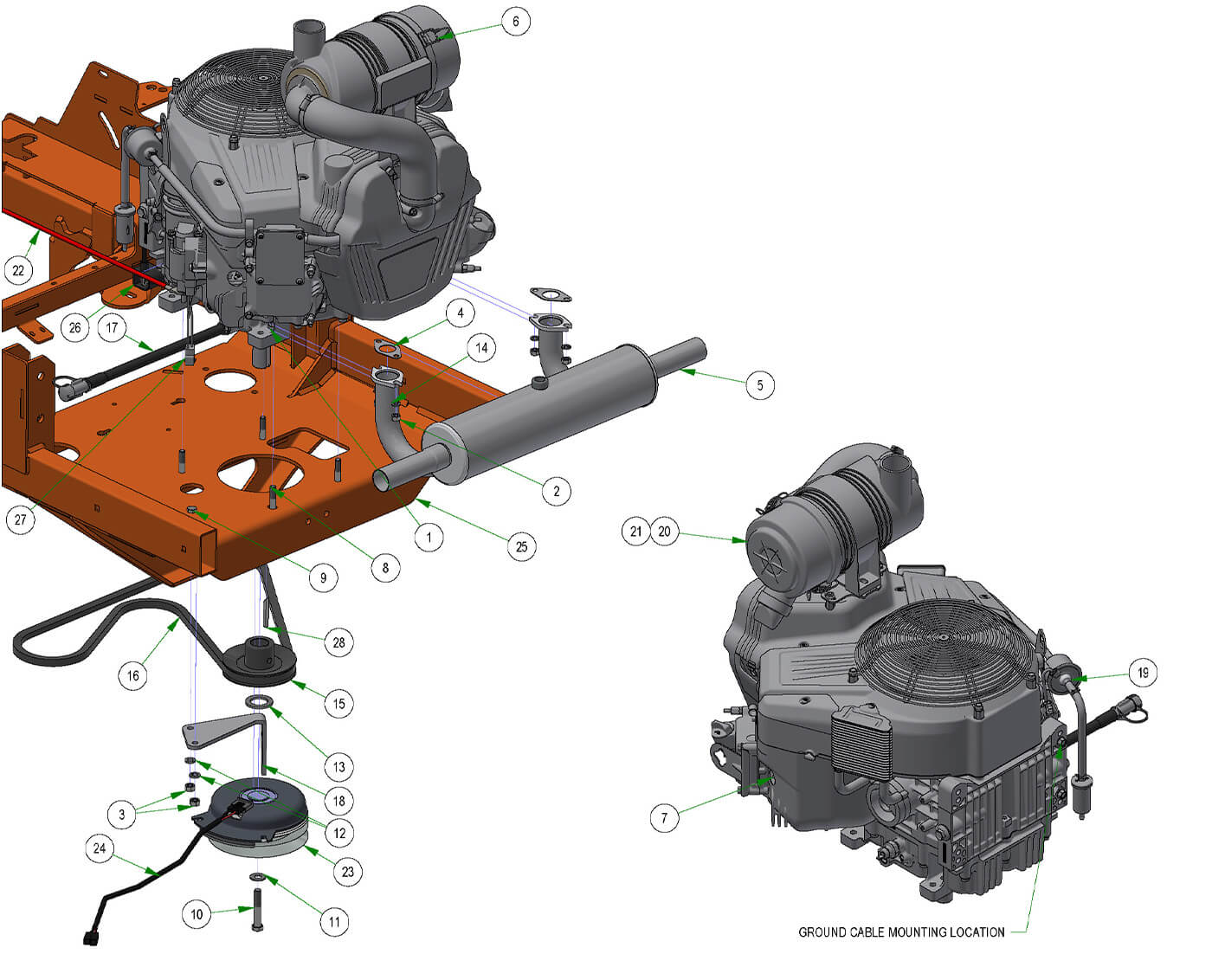

Parts Index
- 1 3/8-16 Hex Flange Top L/N (Qty 4)
- 2 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 3 3/8-16 Hex Nuts Zinc (Qty 2)
- 4 Exhaust Gasket for 23 (Qty 2)
- 5 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 6 2019 Vanguard EFI 37HP 993cc Vertical Shaft (Qty 1)
- 7 Spark Plug-Kohler/Briggs (Qty 2)
- 8 3/8-16x1 ¾ Gr5 Hex Flange Bolt Zinc Clear (Qty 4)
- 9 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 10 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 11 3/8 USS Flat Washer Zinc (Qty 1)
- 12 3/8 Lockwasher Zinc (Qty 2)
- 13 1.140x1.750x .132 Flat Washer (Qty 1)
- 14 5/16 Lock washer Zinc (Qty 4)
- 15 4 3/4 Motor Pulley (Qty 1)
- 16 2019 & up Rogue Pump Belt 68" (Qty 1)
- 17 14mm Drain Hose-36hp Vanguard (Qty 1)
- 18 PTO Engager Holder-Clutch--Plated (Qty 1)
- 19 Universal Inline Fuel Filter (Qty 1)
- 20 Canister Air Fil Outer2010&Old (Qty 1)
- 21 Canister Air Filter - Inner (Qty 1)
- 22 24 Red Battery Cable (Qty 1)
- 23 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 24 Clutch Pigtail (Qty 1)
- 25 2023 Rogue Frame--Orange (Qty 1)
- 26 Rebel, Rogue Ground Wire (Qty 1)
- 27 2021 Harness Adapter - Vanguard 37 EFI (Qty 1)
-

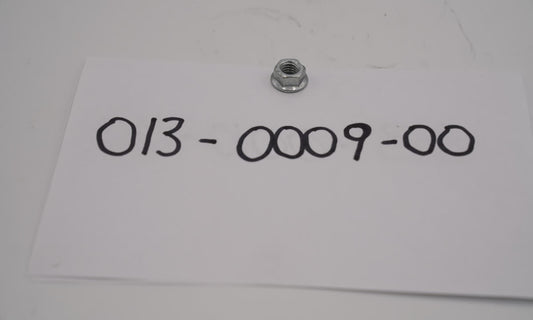

1#013-0009-00
3/8-16 Hex Flange Top L/N
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
2#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
3#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
5#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
6#015-3001-00
2019 Vanguard EFI 37HP 993cc Vertical Shaft
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
7#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
8#018-0115-00
3/8-16x1 ¾ Gr5 Hex Flange Bolt Zinc Clear
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
9#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
11#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
13#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
14#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
16#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
17#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
18#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
19#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
20#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
21#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
22#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
24#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
25#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
26#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
27#086-9013-21
2021 Harness Adapter - Vanguard 37 EFI
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
