Engine - Kawasaki FX1000 EFI

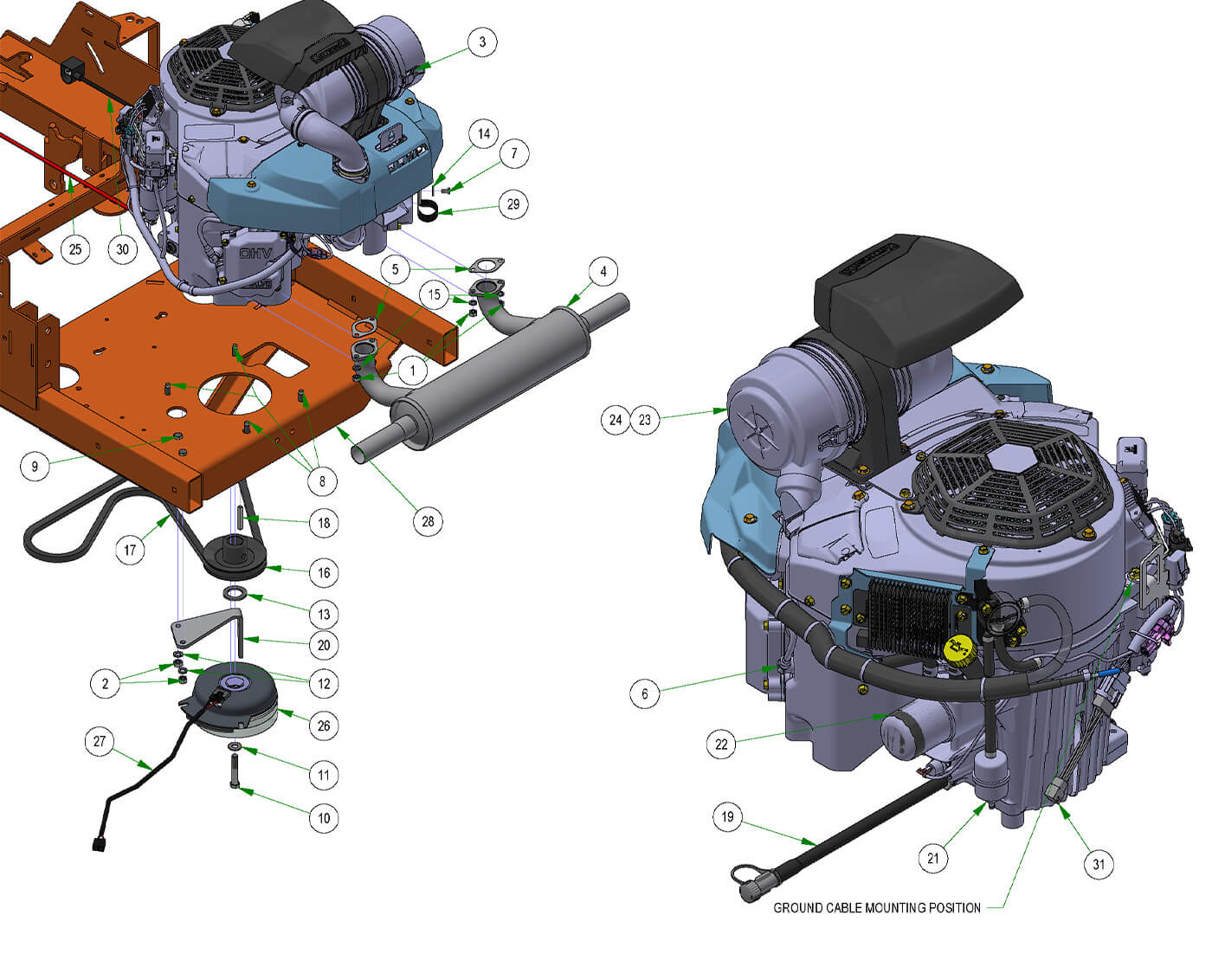

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 3/8-16 Hex Nuts Zinc (Qty 2)
- 3 Kawasaki FX1000EFI 38.5HP (Qty 1)
- 4 2019 Rebel/Rogue Kawasaki 1000 Muffler (Qty 1)
- 5 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 6 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 7 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 8 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 9 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 10 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 11 3/8 USS Flat Washer Zinc (Qty 1)
- 12 3/8 Lockwasher Zinc (Qty 2)
- 13 1.140x1.750x .132 Flat Washer (Qty 1)
- 14 1/4 USS Flat Washer Zinc (Qty 1)
- 15 5/16 Lock washer Zinc (Qty 4)
- 16 4 3/4 Motor Pulley (Qty 1)
- 17 2019 & up Rogue Pump Belt 68" (Qty 1)
- 18 1/4 X 2 Square Key Stock (Qty 1)
- 19 Kawasaki Oil Drain (Qty 1)
- 20 PTO Engager Holder-Clutch--Plated (Qty 1)
- 21 Universal Inline Fuel Filter (Qty 1)
- 22 Kawasaki Oil Filter (Qty 1)
- 23 Canister Air Fil Outer2010&Old (Qty 1)
- 24 Canister Air Filter - Inner (Qty 1)
- 25 24 Red Battery Cable (Qty 1)
- 26 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 27 Clutch Pigtail (Qty 1)
- 28 2023 Rogue Frame--Orange (Qty 1)
- 29 Diesel Hydraulic Hose Clamp (Qty 1)
- 30 Rebel, Rogue Ground Wire (Qty 1)
- 31 Pigtail FX1000EFI Display Screen (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#015-1010-00
2019 Rebel/Rogue Kawasaki 1000 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
5#015-1010-01
Exhaust Gasket for FX1000V Kawasaki
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
6#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
8#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
9#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
11#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
13#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
14#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
15#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
16#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
17#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
18#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
19#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
20#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
21#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
22#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
23#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
24#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
25#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
27#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
28#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
29#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
30#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
31#086-9025-00
Pigtail FX1000EFI Display Screen
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
