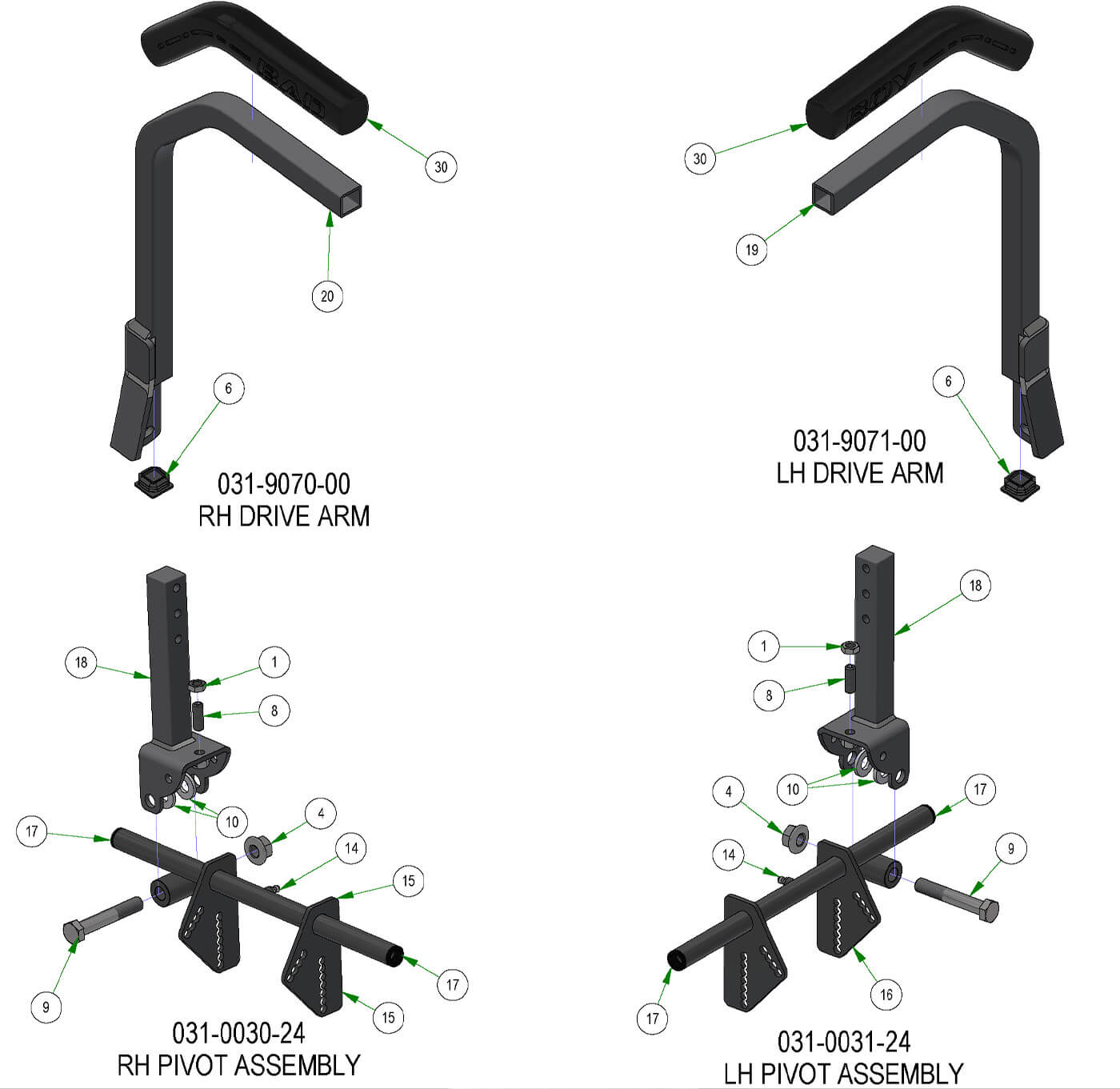

Drive Arm Subassemblies
Parts Index
- 1 3/8-16 Half Jam Nut (Qty 2)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 8 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 2)
- 9 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 2)
- 10 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 14 1/4 Drive-in Grease Fitting (Qty 2)
- 15 2019 Drive Are Actuator Right-Weldment (Qty 1)
- 16 2019 Drive Are Actuator Left-Weldment (Qty 1)
- 17 Drive Arm Actuator Bushing (Qty 4)
- 18 R-Series Square Drive Arm Pivot (Qty 2)
- 19 R-Series Square Drive Arm LH Weldment (Qty 1)
- 30 R-Series Square Drive Grip (Qty 1)
-
1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
46#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
8#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
9#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
14#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
15#031-0030-10
2019 Drive Are Actuator Right-Weldment
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
16#031-0031-10
2019 Drive Are Actuator Left-Weldment
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
17#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 4Regular price $6.62 USDRegular priceUnit price per
-
18#031-0070-00
R-Series Square Drive Arm Pivot
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
19#031-9021-00
R-Series Square Drive Arm LH Weldment
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
30#069-4014-00
R-Series Square Drive Grip
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
