Covers & Seat

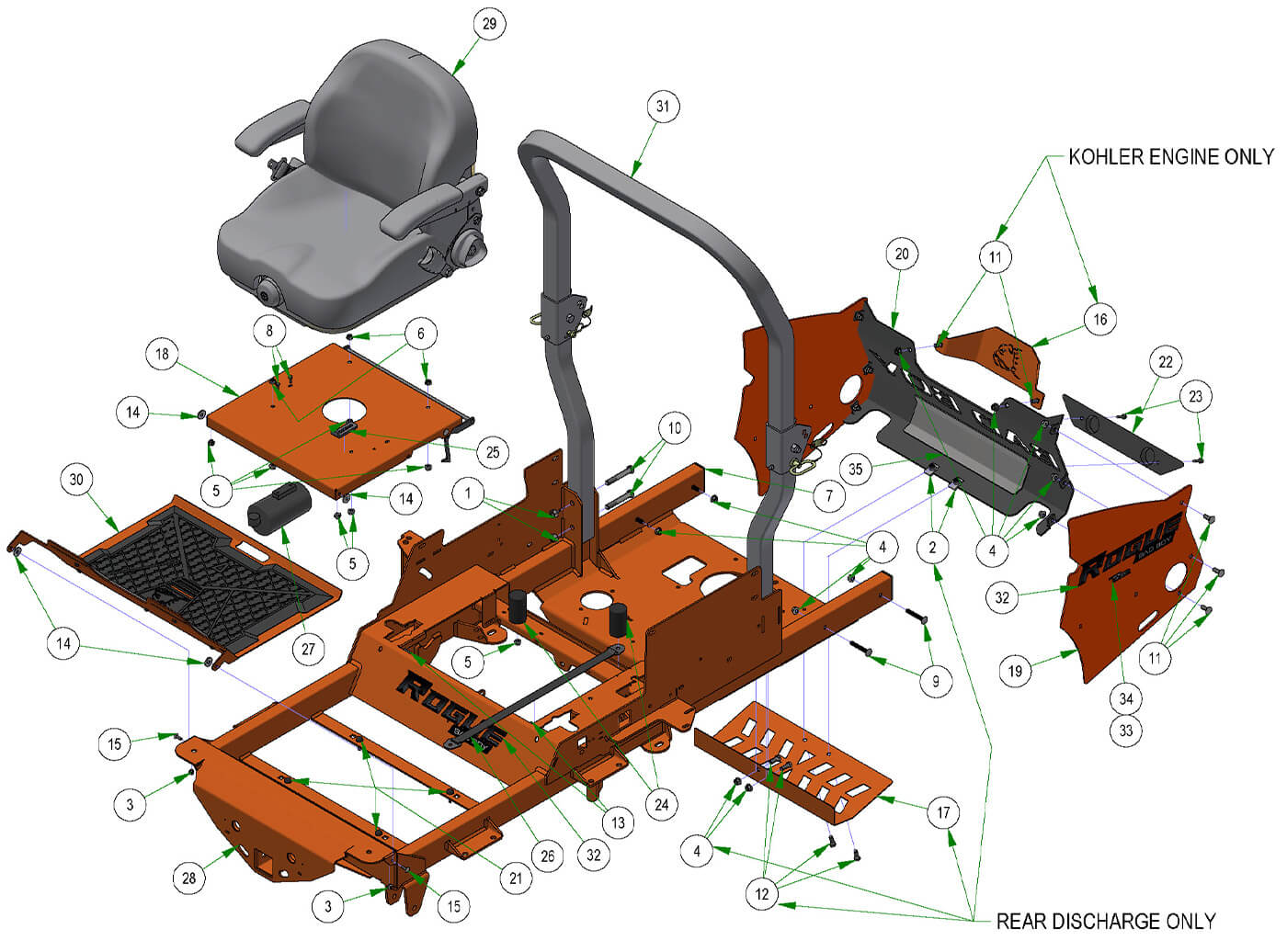

Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 3 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 4 3/8 Nylock Flange Nut (Qty 14)
- 6 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 7 1 1/2x 3 Frame Plug (Qty 2)
- 8 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 9 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 10 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 11 3/8 x 1 Carriage Bolt (Qty 8)
- 12 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 13 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 14 .360 ID Plastic Washer (Qty 4)
- 15 1/4 x 3/4 Carriage Bolt (Qty 2)
- 16 Kohler 980 Engine Shield--Orange (Qty 1)
- 17 Muffler Shield-Painted--Orange (Qty 1)
- 18 R-Series Seat Plate Assembly (Qty 1)
- 19 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 20 2019 Vertical Rear Cover Tailgate-Black (Qty 1)
- 21 2023 Floor Board Rubber Bumpers (Qty 4)
- 22 Bumper (Qty 1)
- 23 1/4-14 x 1 1/4 HWA Unslot Tek Screw (Qty 2)
- 24 Bumper (Seat) (Qty 2)
- 25 Seat Stop--Plated (Qty 1)
- 26 Seat Strap with Buckles (Qty 1)
- 27 2019 R-Series EPA Cannister Assembly (Qty 1)
- 28 2023 Rogue Frame--Orange (Qty 1)
- 29 2025 Seats Inc Suspension Seat With Seat Belt (Qty 1)
- 31 2019 2x2 R SERIES Folding Rops (Qty 1)
- 32 MY24 Rogue Back Plate & Front Decal (Qty 3)
- 33 2022 Powered by Kawi Decal (Qty 2)
- 34 2022 Powered By Kohler Decal (Qty 2)
- 35 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-

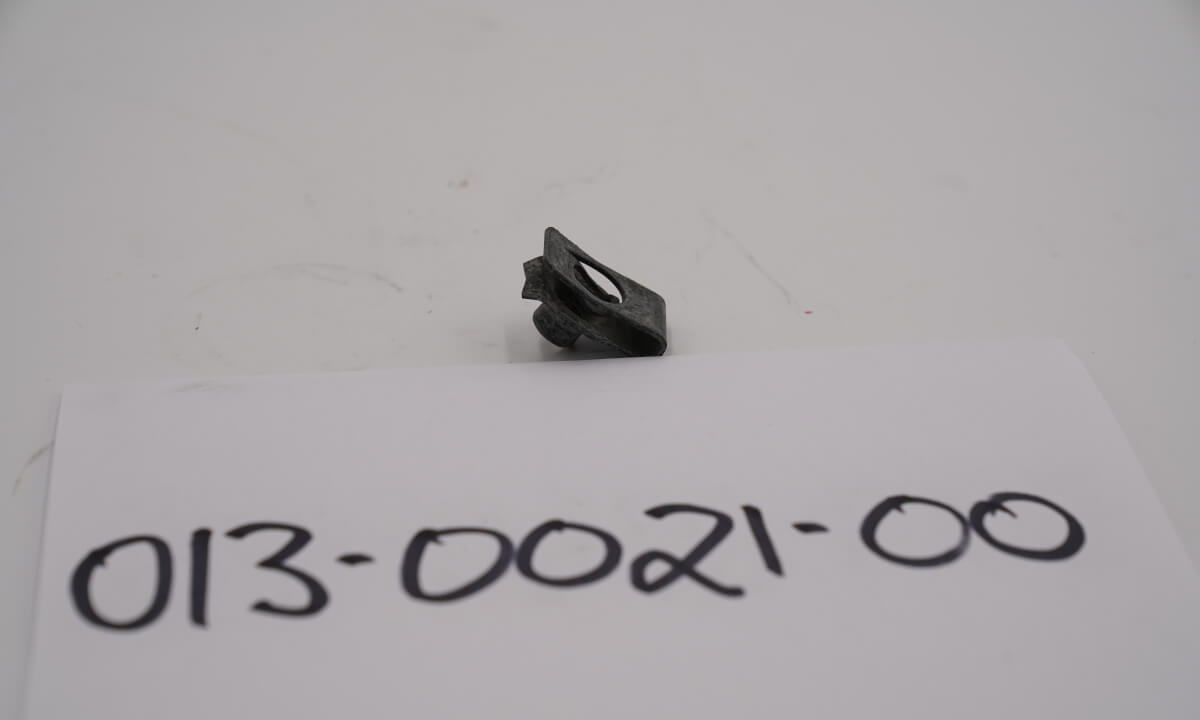

2#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
3#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
6#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
7#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
8#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
9#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
10#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
11#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
12#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
13#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
15#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
16#026-0308-00
Kohler 980 Engine Shield--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
17#026-0337-00
Muffler Shield-Painted--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
19#026-2209-00
2019 Vertical Suspension Rear Cover Side--Orange
Qty Used: 2Regular price $225.56 USDRegular priceUnit price per
-
20#026-2221-22
2019 Vertical Rear Cover Tailgate-Black
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
21#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
-
23#030-7047-00
1/4-14 x 1 1/4 HWA Unslot Tek Screw
Qty Used: 2Regular price $0.05 USDRegular priceUnit price per
-
24#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
25#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
26#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
27#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
28#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
29#071-6065-25
2025 Suspension Seat With Seat Blets
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
32#091-0516-00
MY24 Rogue Back Plate & Front Decal
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
33#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
34#091-4004-22
2022 Powered By Kohler Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
35#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
