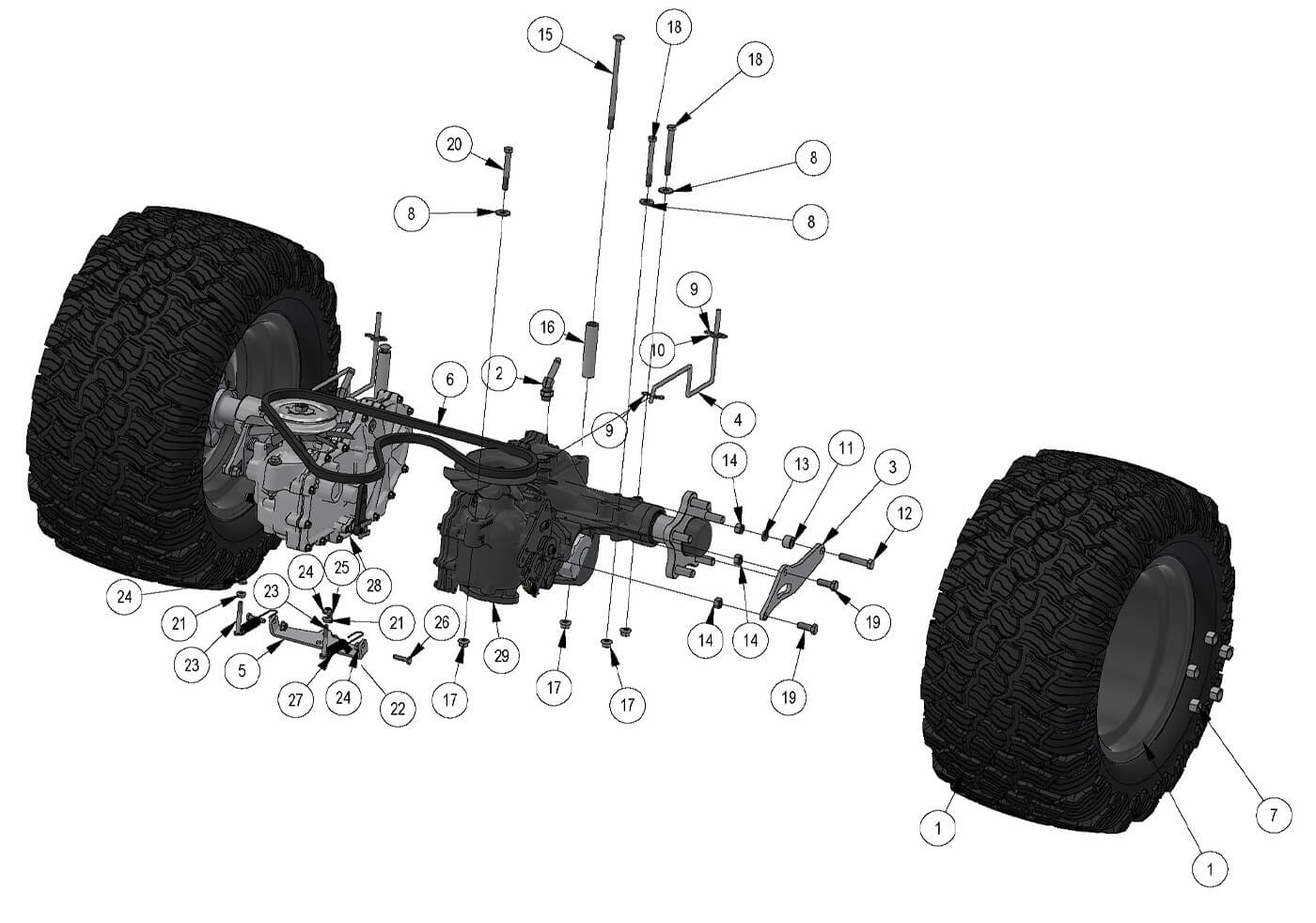

Transaxle Assembly
Parts Index
- 1 2019 Maverick Assembly 23x11-12 Reaper Turf (Qty 2)
- 2 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 3 Control Arm Plate--Plated (Qty 2)
- 4 2019 Stand On Neutral Release Rod (Qty 2)
- 5 Brake Bracket--Plated (Qty 1)
- 6 2019 & up Stand On Drive Belt (Qty 1)
- 7 Acorn Lug Nut (Qty 10)
- 8 5/16 USS Flat Washer Zinc (Qty 6)
- 9 Bow Pin (Qty 4)
- 10 1/4 USS Flat Washer Zinc (Qty 2)
- 11 ACS Spacer 3/4x3/8x1/2 (Qty 2)
- 12 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 13 3/8 Lockwasher Zinc (Qty 6)
- 14 3/8-16 Hex Nuts Zinc (Qty 6)
- 15 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 16 2017 Transaxle Spacer (Qty 2)
- 17 5/16-18 Nylon Flange Nut (Qty 8)
- 18 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 19 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 20 5/16 x 2 1/2 Bolt (Qty 2)
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 22 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 23 1/4-20 x 2 Hex Bolt (Qty 2)
- 24 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 25 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 26 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 27 Brake Spring (Qty 2)
- 28 2025 RH 3400 Transaxle (Qty 1)
- 29 2025 LH 3400 Transaxle (Qty 1)
-
1#022-4200-00
2019 Maverick Assembly 23x11-12 Reaper Turf
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
2#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
No sequence found for SKU:
Control Arm Plate--Plated
Regular price $0.00 USDRegular priceUnit price per
-
4#028-0071-00
2019 Stand On Neutral Release Rod
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
5#039-0212-00
Brake Bracket--Plated
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
6#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
8#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
-
10#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#025-2004-00
ACS Spacer 3/4x3/8x1/2
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
12#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
13#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
15#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
16#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
18#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
20#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#018-0011-00
1/4-20 x 2 Hex Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
24#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
25#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
26#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
27#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
28#050-6001-02
2025 RH 3400 Transaxle
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
29#050-6000-02
2025 LH 3400 Transaxle
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
